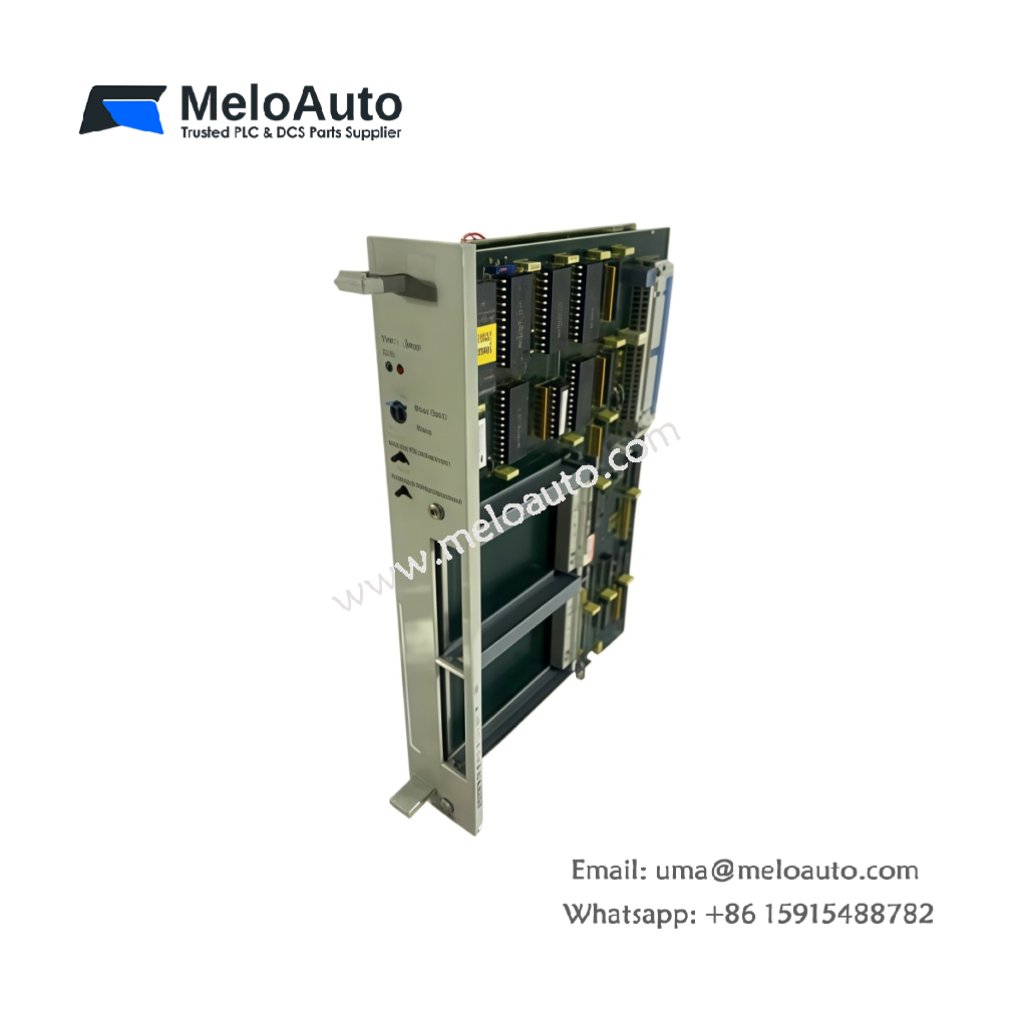

Siemens 6ES5130-3WB63 Central Rack Module

Technical Overview

The 6ES5130-3WB63 central rack module served as a core component within the legacy SIMATIC S5-130W automation system. This module provided the mechanical frame and electrical backplane for hosting CPU, I/O, and communication units. The chassis accepted up to 8 modules, offering a compact yet expandable platform for various control tasks. Additionally, the integrated bus system handled both power distribution and high-speed data communication across all connected components. Although now obsolete, this module still operates reliably in many existing installations worldwide.

Key Technical Specifications

Parameter	Specification
Brand	Siemens
Model Number	6ES5130-3WB63
Product Type	Central Rack Module
Series	SIMATIC S5-130W
Module Capacity	Up to 8 modules
Backplane Bus	Integrated for power and signal distribution
Compatibility	S5-130W CPUs, I/O modules, function modules
Dimensions (W x H x D)	Approx. 160mm x 240mm x 150mm
Approx. Weight	1.5 kg
Status	Obsolete

Backplane Architecture and Module Capacity

The 6ES5130-3WB63 housed up to 8 individual modules in a single chassis. The integrated backplane bus provided both power supply connections and high-speed signal pathways. Therefore, users could mix CPUs, digital I/O, analog I/O, and communication processors within the same rack.

Installation and System Integration

Engineers mounted this central rack module within standard 19-inch cabinets or on dedicated mounting plates. The module featured clearly labeled slots and connection points for straightforward installation. Moreover, the front-facing LEDs on compatible modules provided immediate visual feedback for diagnostic purposes.

Legacy System Support

Many industrial plants still operate SIMATIC S5 systems due to their proven reliability. The 6ES5130-3WB63 remains essential for maintaining these existing installations. Consequently, plant engineers often seek this module as a replacement or spare part. Users should verify their current hardware revision before ordering due to potential compatibility differences.
