Siemens 6ES5710-0AA11 Mounting Rack

Technical Overview

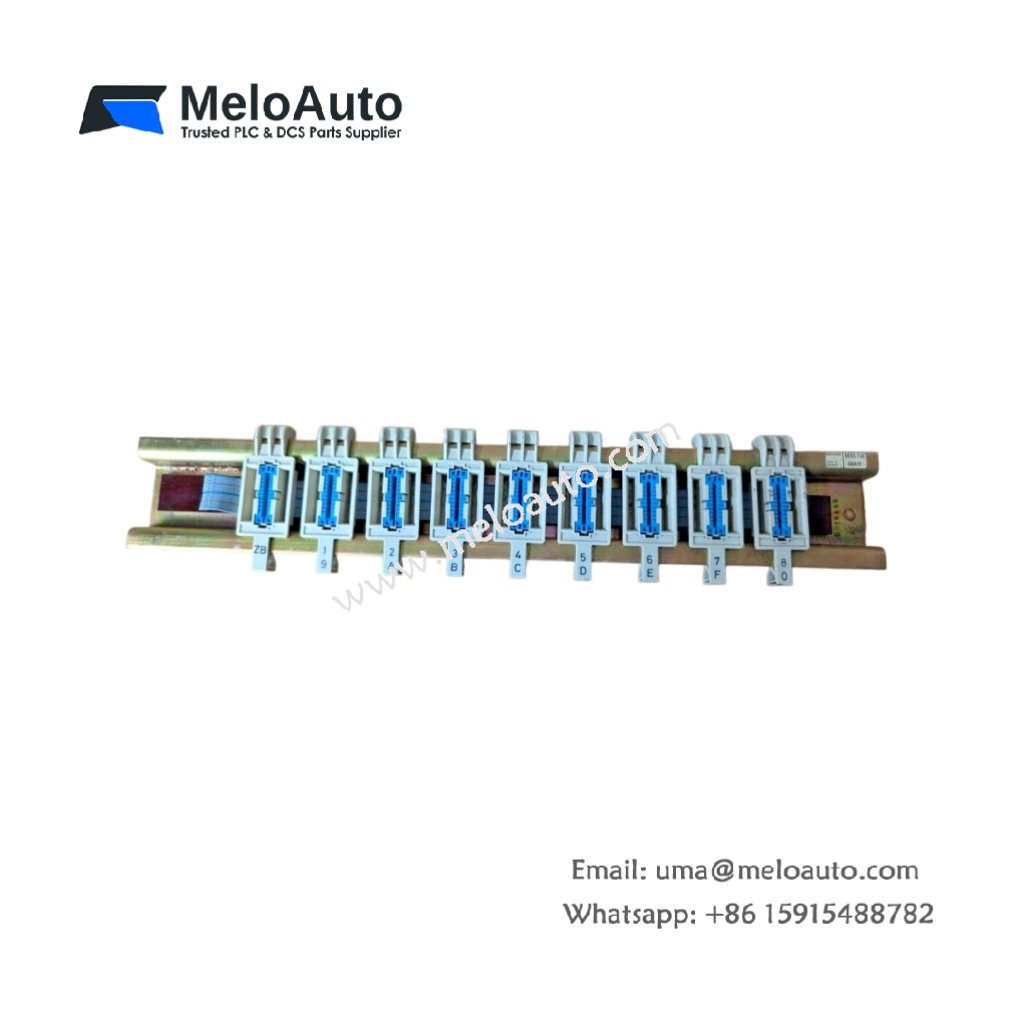

The 6ES5710-0AA11 mounting rack provides the structural foundation for SIMATIC S5-100U modular automation systems. This chassis accommodates various functional modules, including CPUs, I/O units, and communication processors. It features a 19-inch rack design that fits seamlessly into standard industrial control cabinets. Furthermore, the integrated backplane bus ensures reliable power distribution and data exchange across all installed components.

Key Technical Specifications

Backplane Bus and System Integration

The integrated backplane bus handles both power distribution and high-speed signal communication. This dual-function bus reduces the need for extensive point-to-point wiring between modules. Consequently, the 6ES5710-0AA11 simplifies system assembly and improves overall reliability. Additionally, the backplane supports hot-swapping of certain modules for minimal production downtime.

Mechanical Design and Installation

The rack’s robust steel construction provides excellent mechanical stability in industrial environments. Its 19-inch form factor allows direct installation into standard cabinets without adapters or special brackets. Moreover, the protective coating resists corrosion and withstands typical factory floor conditions. Engineers can mount the rack horizontally for easy access to modules and wiring connections.

Application Scenarios

Industrial automation engineers use this rack primarily for small to medium-sized control applications. For instance, it suits packaging machines, material handling systems, and simple process control tasks. The scalable architecture allows users to expand the system by adding more racks. Consequently, the 6ES5710-0AA11 serves both standalone controllers and larger distributed systems effectively.
