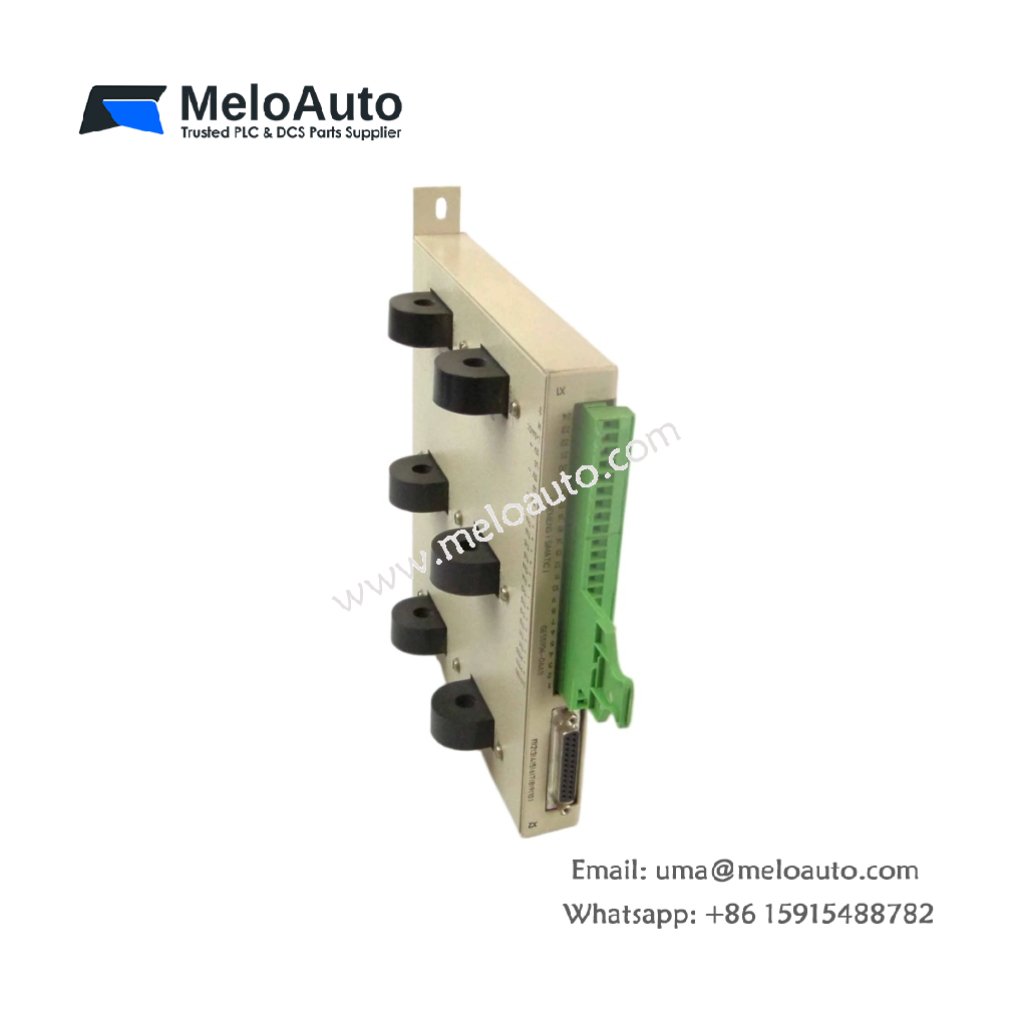

Siemens 6ES5904-0AA11 Heating Current Measuring Module

Current Monitoring for SIMATIC S5 Heating Elements

The 6ES5904-0AA11 heating current measuring module monitors electrical current flowing to industrial heating elements within SIMATIC S5 automation systems. This module detects current levels in heating circuits and provides feedback to the programmable controller for process monitoring. Consequently, it enables predictive maintenance by identifying changes in heating element resistance over time. This monitoring capability helps prevent unexpected heater failures in critical thermal processes.

Technical Specifications

Current Monitoring Functionality

The 6ES5904-0AA11 measures current flowing through heating elements and converts this data into signals the S5 CPU can process. It typically monitors AC or DC currents in industrial heating circuits . This module helps operators detect partial failures in heating elements, which often manifest as changes in resistance or current draw . Furthermore, the module can trigger alarms when current levels deviate from expected ranges.

System Integration and Application

This module integrates into S5 rack configurations and communicates with the CPU via the backplane bus. Users connect the module to current transformers or direct current paths for heating element monitoring. The 6ES5904-0AA11 proves essential in applications such as semiconductor manufacturing, heat treatment, and plastics processing . It supports condition monitoring strategies that reduce unplanned downtime.

Physical Characteristics and Installation

The 6ES5904-0AA11 fits standard S5 module dimensions and rack slots. Its robust construction suits industrial environments. Installation requires inserting the module and connecting the current sensing inputs.
