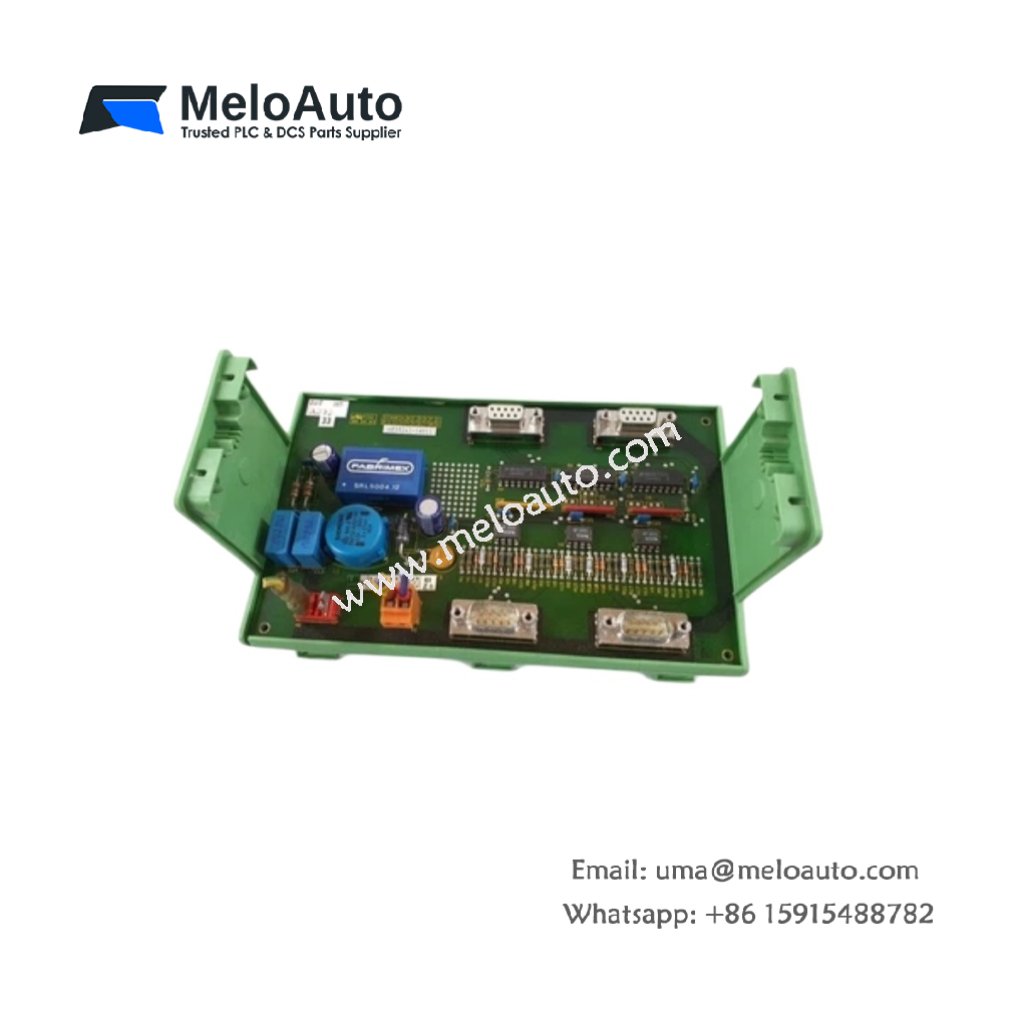

Siemens 6ES5242-1AU11 Converter 24V/5V

Signal Level Conversion for SIMATIC S5 Systems

The 6ES5242-1AU11 converter module performs essential 24V to 5V signal level conversion for SIMATIC S5 automation systems. This module adapts signals between field devices and the controller’s internal logic levels. It ensures proper signal compatibility between 24V DC field inputs and the 5V DC backplane logic of S5 systems. Consequently, this module prevents signal mismatch issues and protects sensitive controller circuits.

Technical Specifications

Signal Conversion Functionality

The 6ES5242-1AU11 accepts 24V DC input signals from field devices such as sensors and pushbuttons. It converts these signals to 5V DC levels compatible with the S5 backplane logic. Furthermore, this conversion protects the CPU and I/O modules from voltage incompatibility. The module ensures reliable signal transmission without distortion or delay. It serves as a crucial interface between the field level and the control level.

System Integration and Application

This converter module integrates seamlessly into S5 rack configurations. It occupies a standard slot and communicates through the backplane bus. Users can connect field devices to the module’s input terminals directly. The 6ES5242-1AU11 proves essential in systems where field devices operate at 24V DC. Moreover, it prevents damage to 5V logic circuits from overvoltage conditions.

Physical Characteristics and Installation

The 6ES5242-1AU11 fits standard S5 module dimensions and slot configurations. Its robust construction withstands typical industrial environments. The module features clear labeling for straightforward wiring. Installation requires only inserting the module and connecting field wiring.
