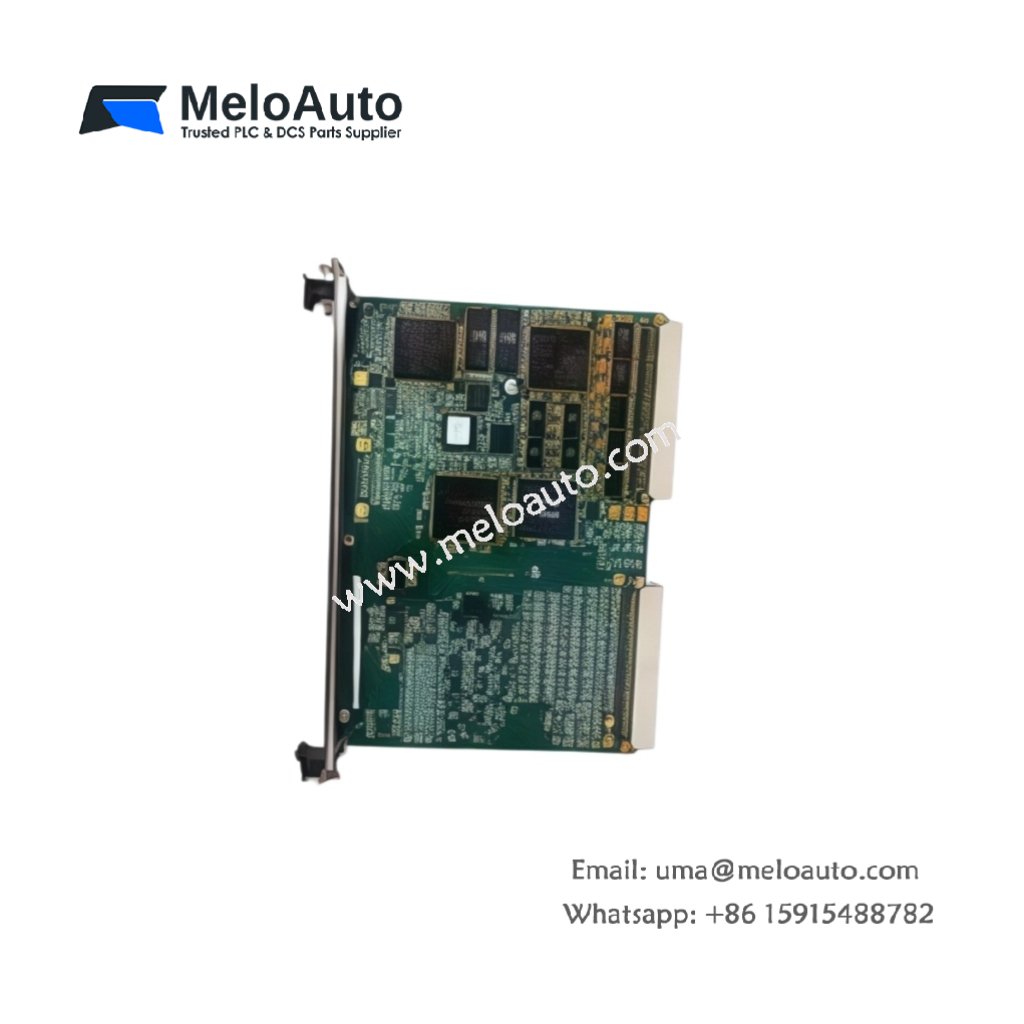

The GE IS200BLIGH1A IS200BLIGH1AAB serves as a dedicated PCB for the Mark VI series. This board manages signal conditioning and logic processing within the control assembly. You will find this unit in many industrial turbine automation systems. General Electric designed this board for the Speedtronic turbine control platform. Its robust construction ensures reliable operation in harsh environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Full Model Number | GE IS200BLIGH1A IS200BLIGH1AAB |
| Category | Speedtronic Turbine Control Printed Circuit Board |
| Dimensions (W x H) | Approx. 6.8 x 5.5 inches |
| Weight | 0.42 kg (0.93 lbs) |
| Number of Components | 95+ discrete parts including logic ICs and capacitors |
| Energy Storage | 160 Joules (total capacitive discharge) |
| Interface Type | 3x 30-pin headers + 2x edge connectors + 1x test point array |
This board integrates over 95 discrete components onto a double-layer PCB. Its dimensions measure roughly 6.8 inches wide by 5.5 inches high. The total weight reaches about 0.42 kilograms including the protective coating. Three 30-pin headers handle signal connections to adjacent boards. Two edge connectors provide power and data paths to the backplane. One test point array allows for easy diagnostic measurements. The design stores up to 160 joules of capacitive energy for stable signal filtering.
Functional Layout and Signal Processing
The GE IS200BLIGH1A IS200BLIGH1AAB processes incoming logic signals with high accuracy. Each logic IC performs specific timing or gating functions for turbine control. Moreover, the board filters noise from external signal sources before further processing. This variant includes upgraded capacitors for better transient response. General Electric specifically designed this PCB for the Mark VI Speedtronic system. You can replace an older board with this unit without changing the rack configuration.
Installation Guidelines and Compatibility
This printed circuit board mounts directly into a standard Mark VI rack slot. Always disconnect system power before handling the GE IS200BLIGH1A IS200BLIGH1AAB. The board works with existing GE Mark VI backplanes and I/O cards. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark VI versions. Proper installation ensures reliable signal processing and system integrity.
