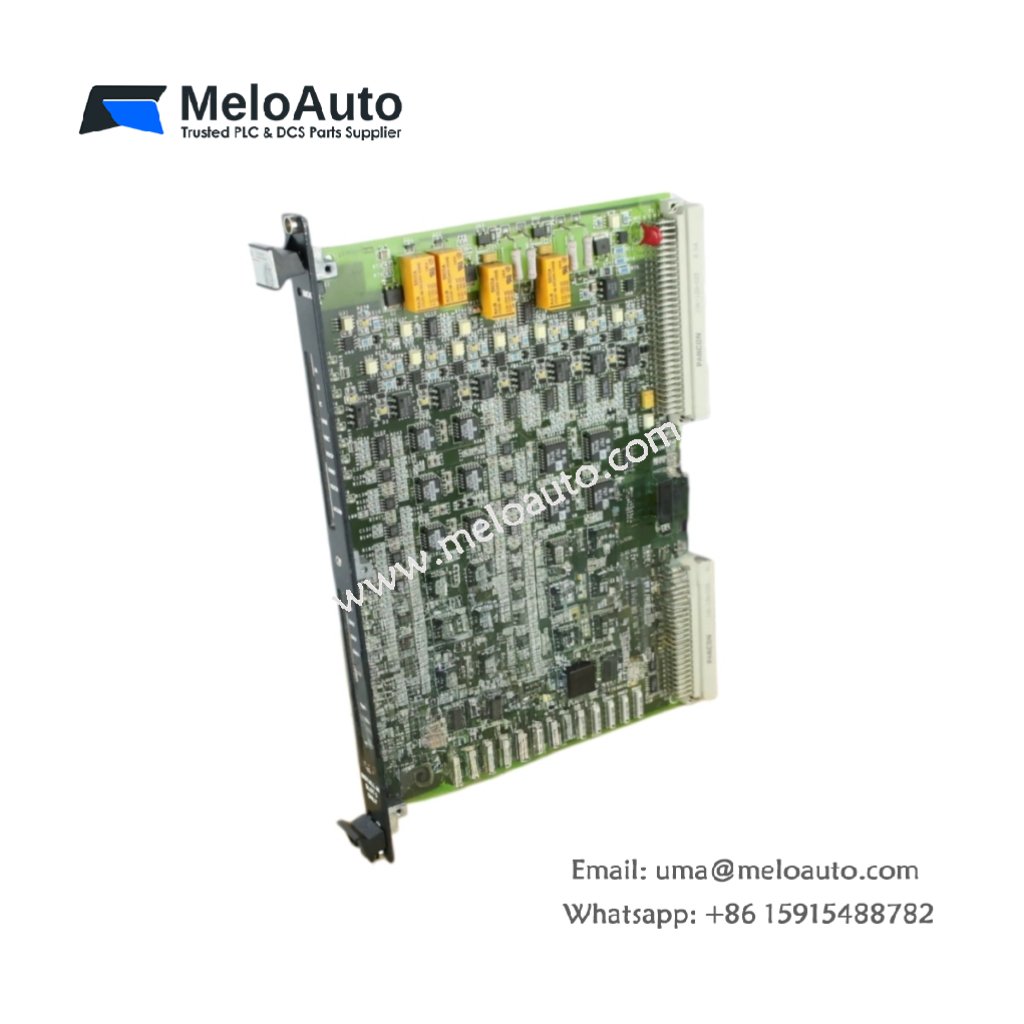

GE IS200BICMH1A IS200BICMH1AAA Printed Circuit Board

The GE IS200BICMH1A IS200BICMH1AAA serves as a dedicated PCB for the Mark VI series. This board manages communication and interface signals within the control assembly. You will find this unit in many industrial turbine automation systems. General Electric designed this board for the Speedtronic turbine control platform. Its robust construction ensures reliable operation in harsh environments.

Technical Specifications

This board integrates over 105 discrete components onto a multi-layer PCB. Its dimensions measure roughly 7.5 inches wide by 6.2 inches high. The total weight reaches about 0.51 kilograms including the protective coating. Four 20-pin headers handle parallel signal connections to adjacent boards. Two serial ports provide communication with external devices. One backplane connector supplies power and data paths to the main rack. The design stores up to 230 joules of capacitive energy for stable signal filtering.

Functional Layout and Communication Management

The GE IS200BICMH1A IS200BICMH1AAA processes incoming communication signals with high reliability. Each communication IC manages specific protocol conversions for turbine control. Moreover, the board filters noise from external serial links before further processing. This variant includes upgraded capacitors for better transient response. General Electric specifically designed this PCB for the Mark VI Speedtronic system. You can replace an older board with this unit without changing the rack configuration.

Installation Guidelines and Compatibility

This printed circuit board mounts directly into a standard Mark VI rack slot. Always disconnect system power before handling the GE IS200BICMH1A IS200BICMH1AAA. The board works with existing GE Mark VI backplanes and communication modules. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark VI versions. Proper installation ensures reliable communication and system integrity.
