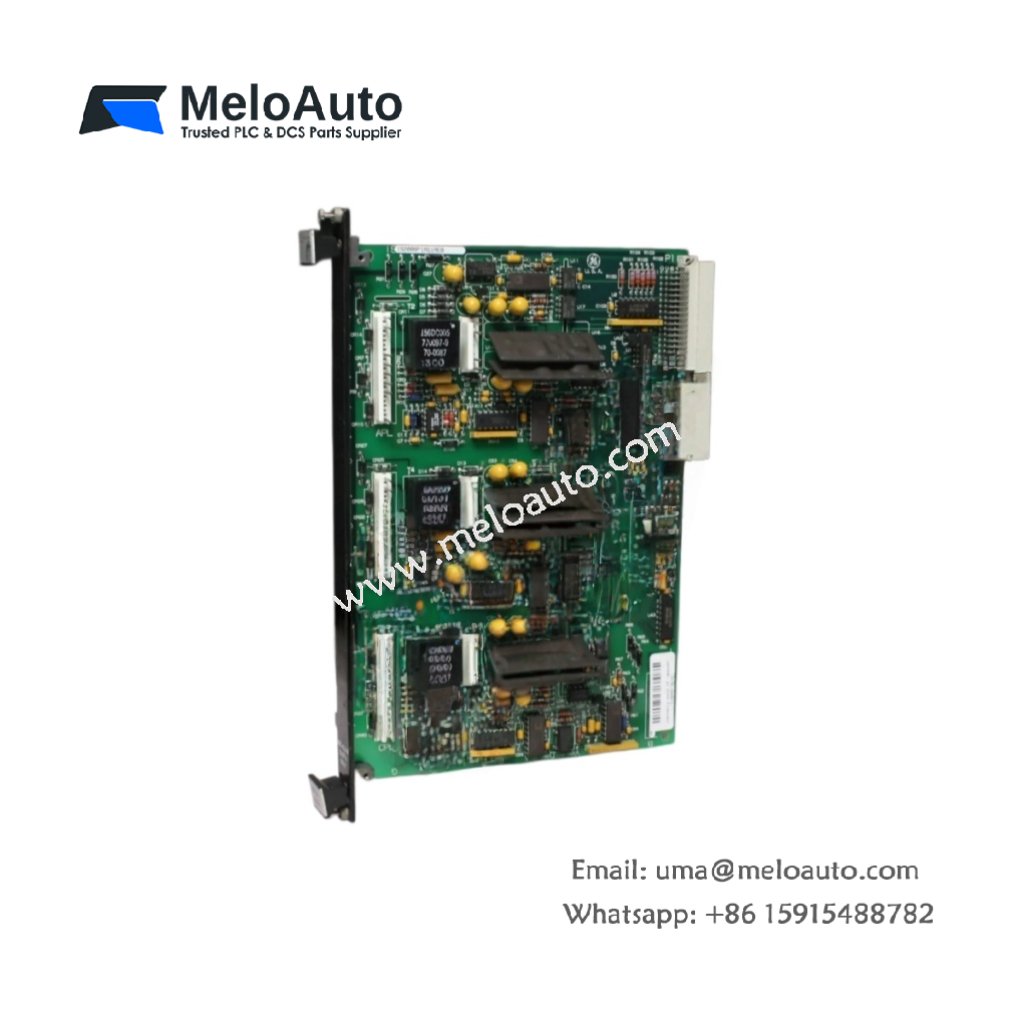

GE IS200BPIAG1A IS200BPIAG1AEB Phase Logic Module

The GE IS200BPIAG1A IS200BPIAG1AEB serves as a phase logic module for the Mark VI series. This board manages phase synchronization and logic sequencing for turbine control. You will find this unit in many industrial power generation systems. General Electric designed this module for the Speedtronic turbine control platform. Its robust construction ensures reliable phase detection in harsh environments.

Technical Specifications

This board integrates over 130 discrete components onto a multi-layer PCB. Its dimensions measure roughly 7.8 inches wide by 6.5 inches high. The total weight reaches about 0.68 kilograms including the protective cover. Four 20-pin headers handle logic signals between modules. Two voltage input terminals bring reference phases into the board. One backplane connector provides power and data paths. The design stores up to 290 joules of capacitive energy for stable phase detection.

Functional Layout and Phase Detection

The GE IS200BPIAG1A IS200BPIAG1AEB monitors incoming phase signals from turbine sensors. Each phase detector compares input signals against reference thresholds. Moreover, the module generates precise timing pulses for logic sequencing. This variant includes upgraded logic gates for faster response times. General Electric specifically designed this module for the Mark VI Speedtronic system. You can replace an older phase logic board with this unit without changing the rack configuration.

Installation Guidelines and Compatibility

This phase logic module mounts directly into a standard Mark VI rack slot. Always disconnect system power before handling the GE IS200BPIAG1A IS200BPIAG1AEB. The module works with existing GE phase sensors and voltage references. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark VI versions. Proper installation ensures accurate phase synchronization and turbine protection.
