Centralized Data Exchange for Industrial Networks

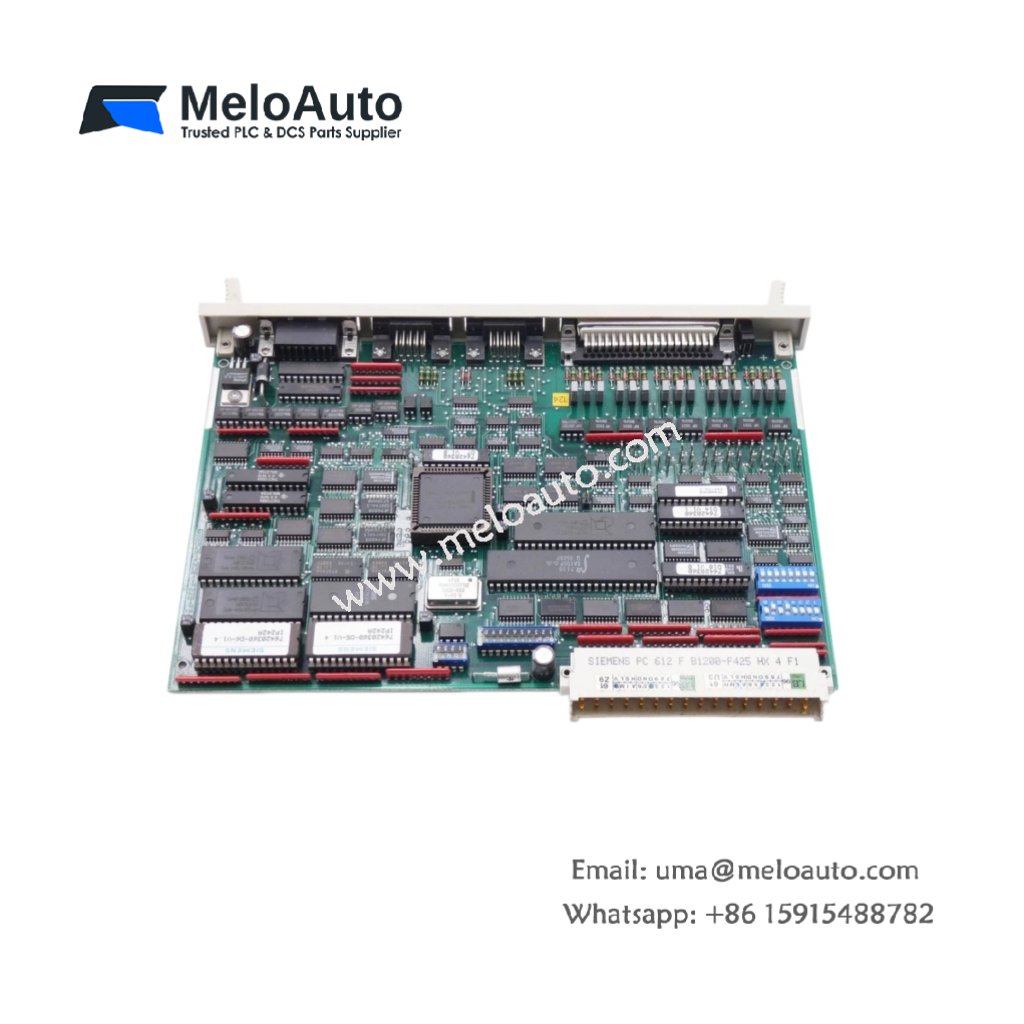

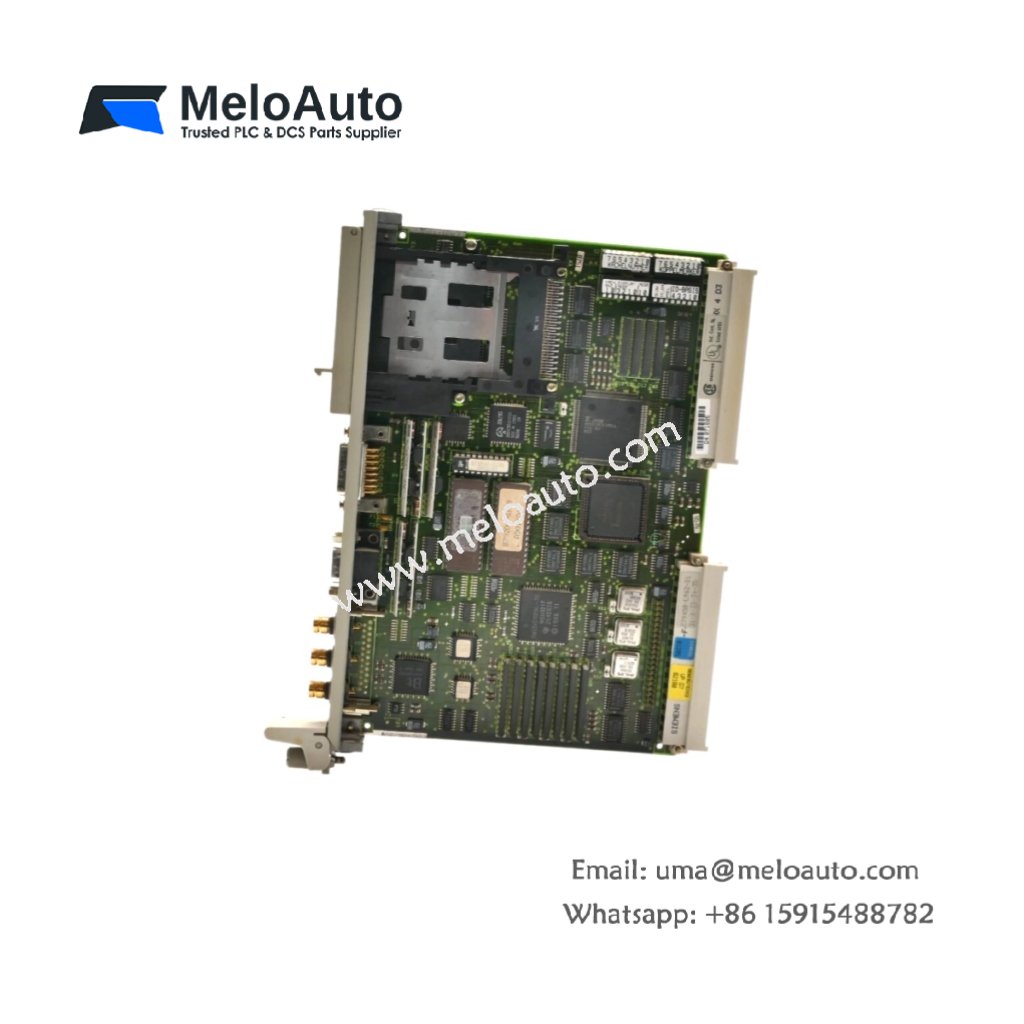

The Siemens 6AV4012-0AA10-0AB0 communications processor manages data exchange between S5 controllers and external devices. This module handles all serial communication tasks, offloading the CPU from protocol processing. Industrial networks with multiple peripheral devices benefit from this dedicated communication engine.
Processing Power and Protocol Capabilities
This communications processor features a dedicated 16-bit microcontroller running at 20 MHz. The module includes 128 KB of RAM for message buffering and 64 KB of EPROM for firmware. The processor supports multiple protocols simultaneously, including 3964R, RK512, and ASCII. Additionally, the module handles up to 128 concurrent connections without performance degradation.
| Parameter | Specification |
|---|---|
| Model | Siemens 6AV4012-0AA10-0AB0 |
| Processor Type | 16-bit microcontroller |
| Clock Frequency | 20 MHz |
| Message Buffer RAM | 128 KB |
| Firmware EPROM | 64 KB |
| Concurrent Connections | 128 (max) |
| Protocols Supported | 3964R, RK512, ASCII |
| Interface Types | RS-232, RS-422, RS-485 |
| Port Configuration | 4 independent ports |
| Data Rate (max) | 38.4 kbps |
| Dimensions (W x H x D) | 40 mm x 125 mm x 118 mm |
| Weight | 0.42 kg |
| Power Consumption | 5 V DC at 350 mA |
Multi-Port Architecture and Interface Options
The Siemens 6AV4012-0AA10-0AB0 provides four independently configurable serial ports. Each port supports RS-232, RS-422, or RS-485 interfaces via software selection. Users can assign different protocols and baud rates to each port for maximum flexibility. Furthermore, the module includes optical isolation on all communication lines for enhanced noise immunity.
Data Buffering and Flow Management
This communications processor stores incoming and outgoing messages in a 128 KB dual-port RAM. The buffer handles burst traffic efficiently without losing data packets. Hardware and software flow control mechanisms prevent buffer overflows during high-speed transmissions. Moreover, the module includes a priority queuing system for time-critical messages.
Configuration and Diagnostic Features
Four front-panel LEDs display the status of each port and the overall module health. Users can configure all communication parameters through the STEP 5 programming software. The module stores a 256-entry diagnostic log with timestamps for troubleshooting. Additionally, a built-in loopback test verifies port functionality during system startup.
Installation and Compatibility
You can install this communications processor in any standard S5 rack slot. The module automatically adapts to the backplane bus speed during initialization. For optimal performance, use shielded cables and proper grounding techniques. Always verify the cable pin assignments before connecting to external devices. The operating temperature range spans from 0°C to 60°C with standard rack ventilation.
