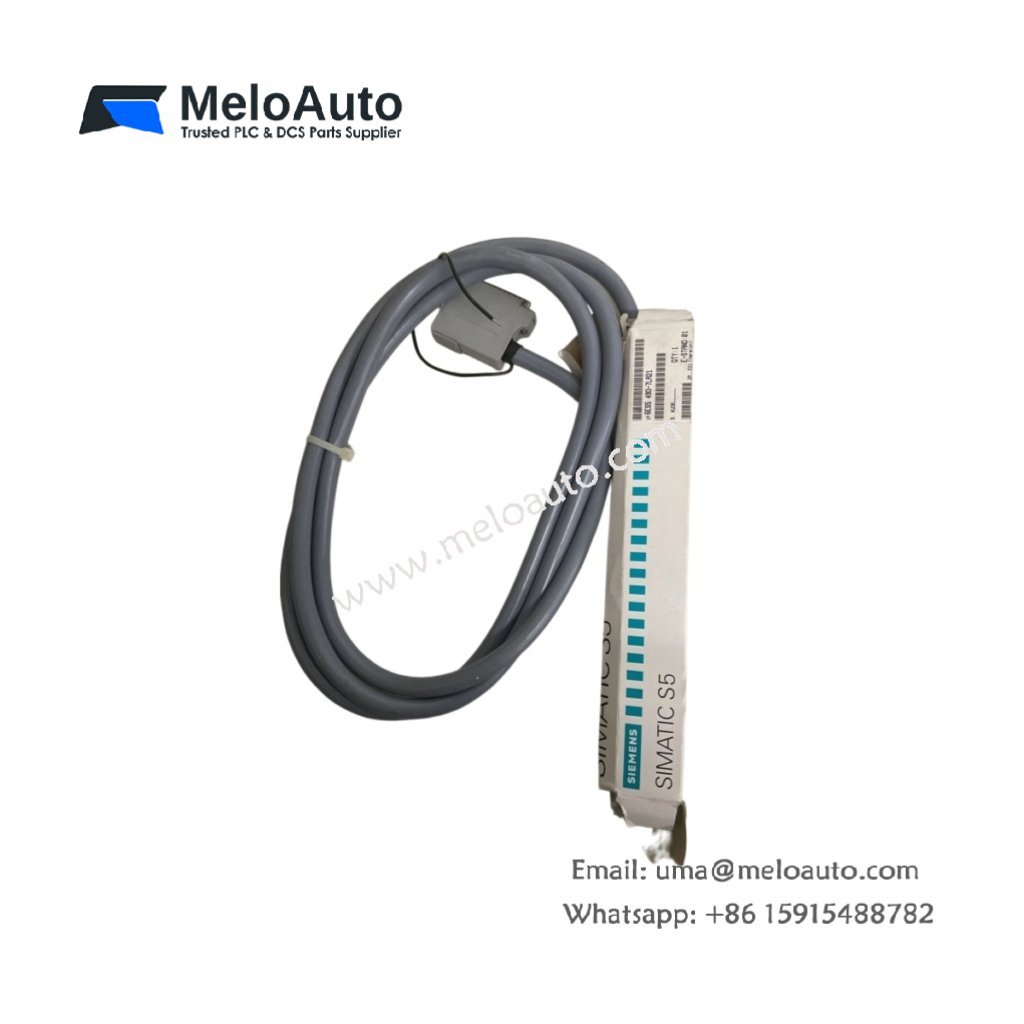

Siemens 6ES5490-7LA21 Front Connector

Technical Overview

The 6ES5490-7LA21 front connector establishes the electrical interface between SIMATIC S5 modules and field wiring. This accessory provides screw-type terminals for secure and reliable signal connections. It accommodates 48 terminals for handling multiple I/O channels efficiently. The connector mates directly with the front face of compatible S5 modules . Moreover, it includes integrated strain relief to protect wires from mechanical stress.

Key Technical Specifications

Coding Mechanism and Connection Security

The front connector features an integrated coding element that prevents incorrect insertion onto modules. This mechanical keying ensures that operators cannot accidentally attach a connector to the wrong module type. Consequently, the system avoids wiring errors and potential damage during maintenance or reconfiguration.

Termination and Cable Management

Screw terminals on the 6ES5490-7LA21 accommodate solid or stranded conductors from 0.14 to 1.5 mm². The strain relief clamp secures the cable bundle firmly to the connector body. This design reduces the risk of wire pull-out or loosening due to vibration.

Installation and Maintenance

Users simply plug the connector onto the module’s front face after completing field terminations. The screw terminals allow for quick wiring changes without specialized tools. Furthermore, the clearly numbered terminal positions simplify documentation and troubleshooting. Maintenance personnel can disconnect and reconnect the connector without disturbing the module itself.
