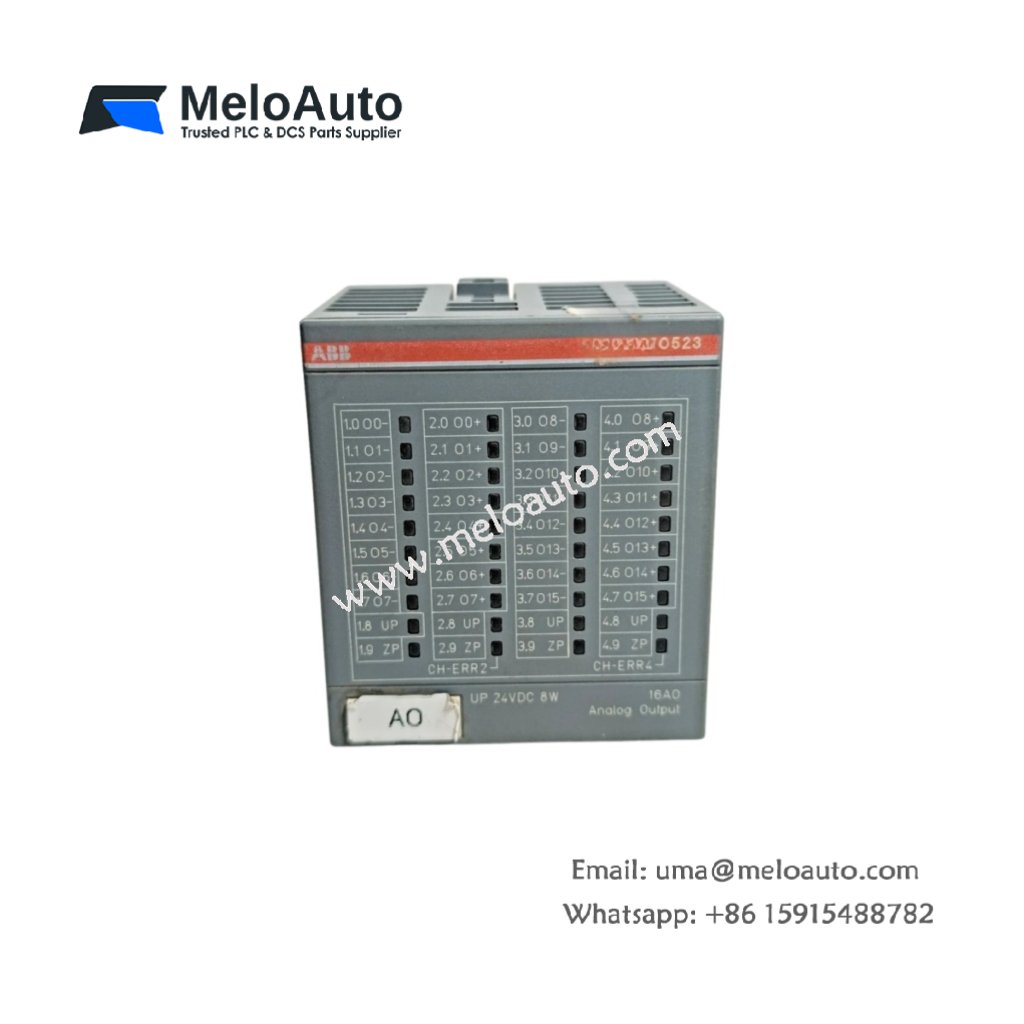

ABB 1SAP250200R3001 Analog Output Module

The 1SAP250200R3001 converts digital signals into analog outputs for AC500 PLCs. This module controls valves, drives, and actuators with precision. It provides four independently configurable output channels.

Key Technical Specifications

Parameter	Value
Output Channels	4 analog, single-ended
Output Current Ranges	0 to 20 mA, 4 to 20 mA
Output Voltage Ranges	0 to 10V, ±10V, 0 to 5V
Resolution	12 bits (4096 steps)
Settling Time	2 ms per channel
Accuracy	±0.3% of full scale
Load Impedance	1 kΩ min (voltage), 500 Ω max (current)
Supply Voltage	24V DC ±20%
Power Consumption	2.5 W typical
Module Dimensions	7.0 cm x 9.5 cm x 6.0 cm
Weight	0.12 kg (0.26 lbs)
Component Count	78 discrete components
Energy Storage	220 µF bulk capacitance
Operating Temperature	-20°C to 60°C

Physical Dimensions and Component Layout

This module measures 7.0 cm in length and 9.5 cm in width. Its total height reaches 6.0 cm including the terminal block. 1SAP250200R3001 weighs just 0.12 kg for DIN rail mounting. You will find 78 discrete components on a four-layer PCB.

Moreover, the module integrates a 220 µF capacitor for output smoothing. This capacitor filters noise on the analog output signals. It also provides stability during rapid output changes.

Output Channel Design and Characteristics

Each of the 4 channels uses a dedicated digital-to-analog converter. A precision voltage reference ensures stable output across temperature changes. The 12-bit DAC provides 4096 discrete output steps. Consequently, you can achieve fine control of connected actuators.

Signal Ranges and Configuration

You can configure each channel independently for voltage or current. Software settings select the appropriate range for each output. The module delivers 0 to 10V, ±10V, or 0 to 5V signals. It also outputs 0 to 20 mA or 4 to 20 mA for loop-powered devices.

Connector Interface and Field Wiring

A 10-pin removable terminal block accepts field wiring for all 4 channels. Each channel uses two terminals for signal output and ground return. The module includes a 24V DC supply input and functional ground. LED indicators show module status and communication activity.

Typical Application Scenarios

You can deploy 1SAP250200R3001 in ABB AC500 and AC500-S PLC systems. It also works well for positioning valves, dampers, and actuators. This module controls variable frequency drives and chart recorders. Its 4 channels suit small to medium process control applications.
