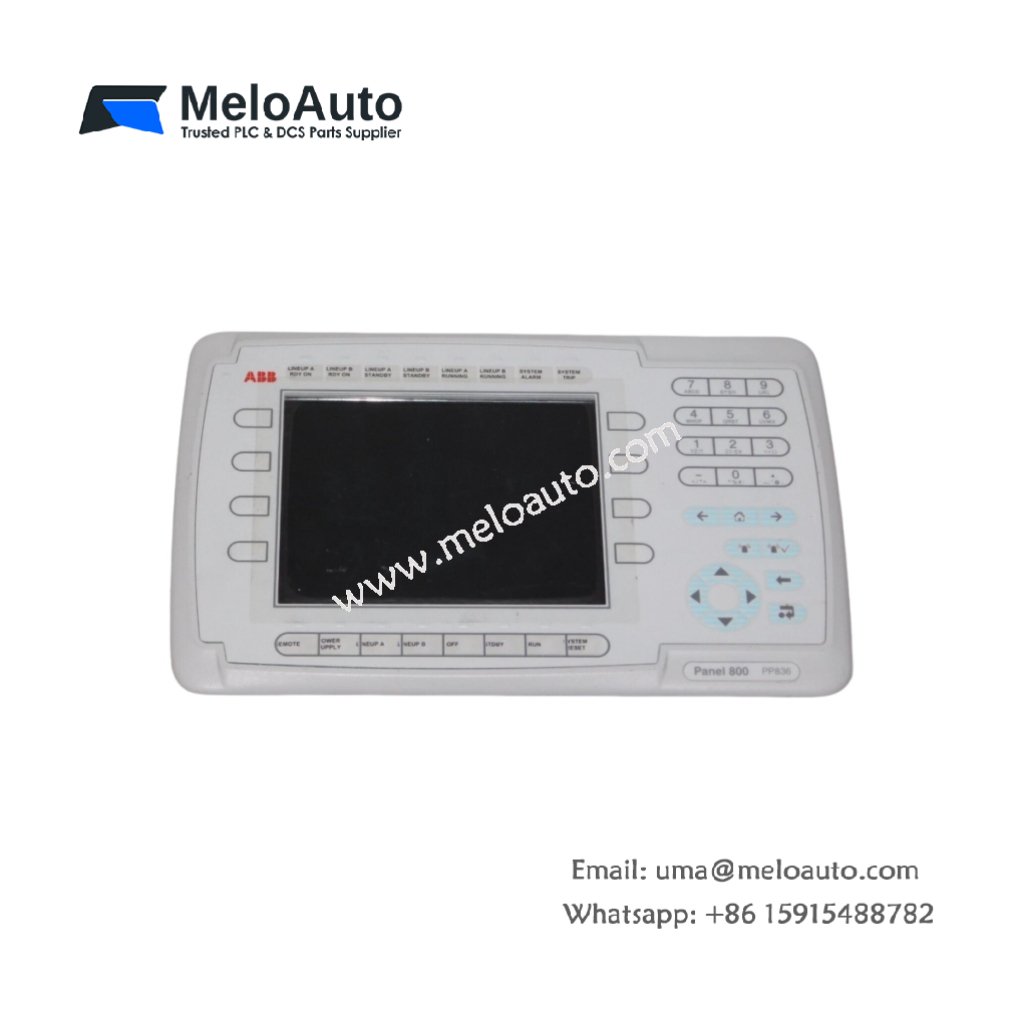

ABB 3BSE042237R1 Operator Panel

The 3BSE042237R1 provides local operator interface for ABB System 800xA. This panel displays process values and accepts control commands from users. You can use it for machine monitoring and manual override functions.

Key Technical Parameters

The table below lists all essential technical specifications for this operator panel.

Specification	Details
Part Number	3BSE042237R1
Product Type	Operator Panel
Compatibility	ABB System 800xA
Display Type	TFT LCD color
Display Size	6.5 inches diagonal
Resolution	640 x 480 pixels (VGA)
Touch Technology	Resistive analog
Dimensions (W x H x D)	210 mm x 165 mm x 55 mm
Weight	Approx. 1.10 kg
Communication Ports	1 x Ethernet, 1 x RS-232
Power Supply	24V DC
Power Consumption	15 W maximum
Protection Rating	IP65 (front)
Operating Temperature	0°C to 50°C

Physical Characteristics and Installation

This operator panel weighs approximately 1.10 kg for secure cabinet mounting. Its dimensions measure 210 mm x 165 mm x 55 mm for panel cutout installation. First, cut a rectangular hole according to the supplied template. Then, insert the 3BSE042237R1 from the front of the door. Finally, tighten the mounting clamps from the rear side. The front panel carries an IP65 rating against dust and water jets.

Display and Touch Interface

The 3BSE042237R1 features a 6.5-inch TFT LCD for clear process visualization. A resistive touch overlay registers user inputs accurately. You can operate this panel even while wearing industrial gloves. The screen resolution reaches 640 x 480 pixels with full color depth. Consequently, you can display detailed graphics and trend charts.

Communication and Power Requirements

This operator panel includes two communication ports for system integration. An Ethernet port connects directly to the System 800xA network. An RS-232 port provides legacy device connectivity. The 3BSE042237R1 requires a 24V DC power supply for operation. The unit consumes a maximum of 15 W under full brightness.
