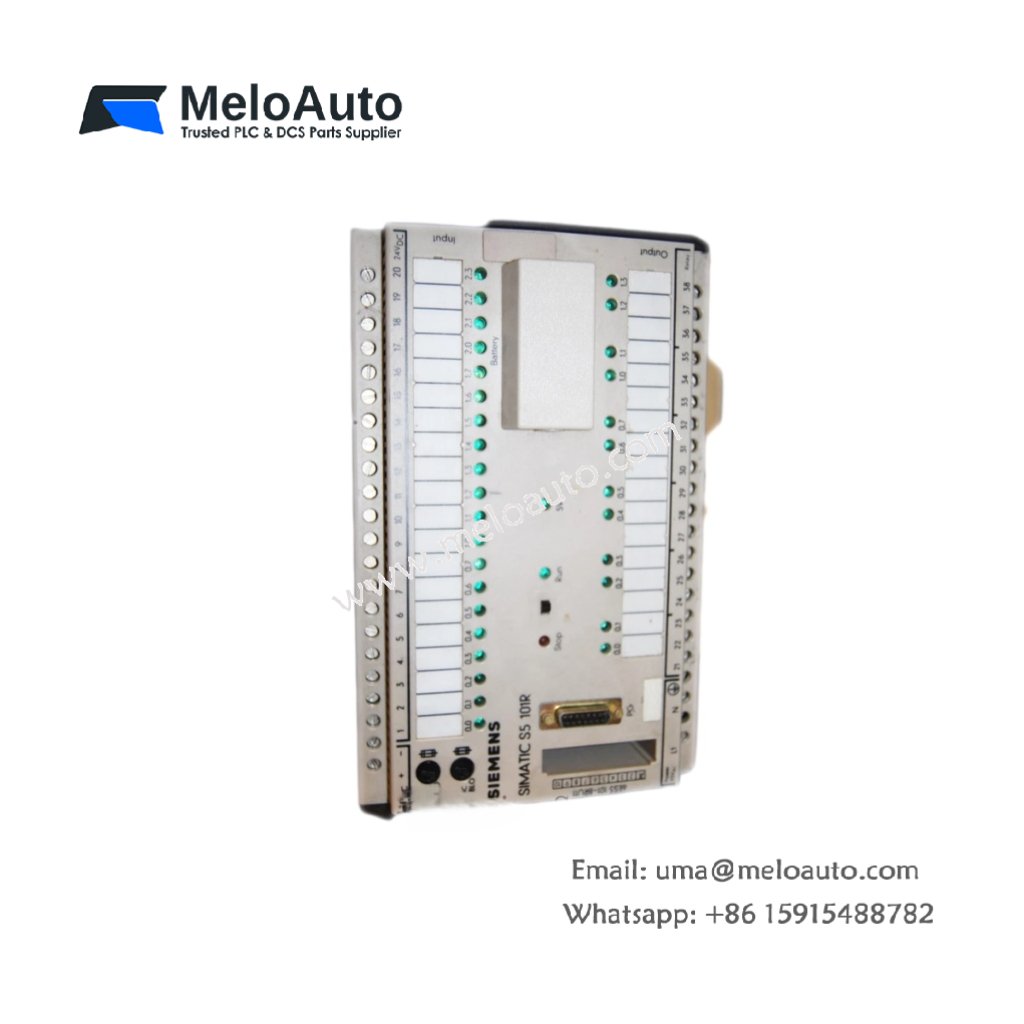

Siemens 6ES5101-8RU11 Programmable Controller Module

Technical Overview

The 6ES5101-8RU11 programmable controller module acts as the central processing unit for SIMATIC S5-101U compact automation systems. This module combines a CPU, memory, and I/O interfaces into a single compact housing. It handles logic operations, timing functions, counting tasks, and arithmetic calculations simultaneously. The integrated power supply draws its operating voltage directly from the backplane bus.

Key Technical Specifications

Memory Architecture and Program Storage

The module supports both RAM and EEPROM memory types for flexible program management. Users can store the application program in EEPROM to retain data during power outages. Consequently, this design eliminates the need for an external memory card in many applications.

I/O Capabilities and Peripheral Connectivity

The integrated I/O system allows direct connection of sensors and actuators to the module. This design simplifies the overall system architecture and reduces the required hardware components. Additionally, the module’s onboard interfaces support both digital and analog signal processing.

Integrated Power Supply and Compact Design

The 6ES5101-8RU11 draws all necessary operating voltages from the system’s backplane. This feature eliminates the need for separate external power connections to the CPU. Its compact form factor makes it ideal for space-constrained control cabinets.

Programming and Diagnostics

Users program the 6ES5101-8RU11 via the built-in communication interface using standard Siemens STEP 5 software. The module provides diagnostic information through front-panel LEDs for immediate status indication. Operators can easily identify faults and system states without external diagnostic tools.
