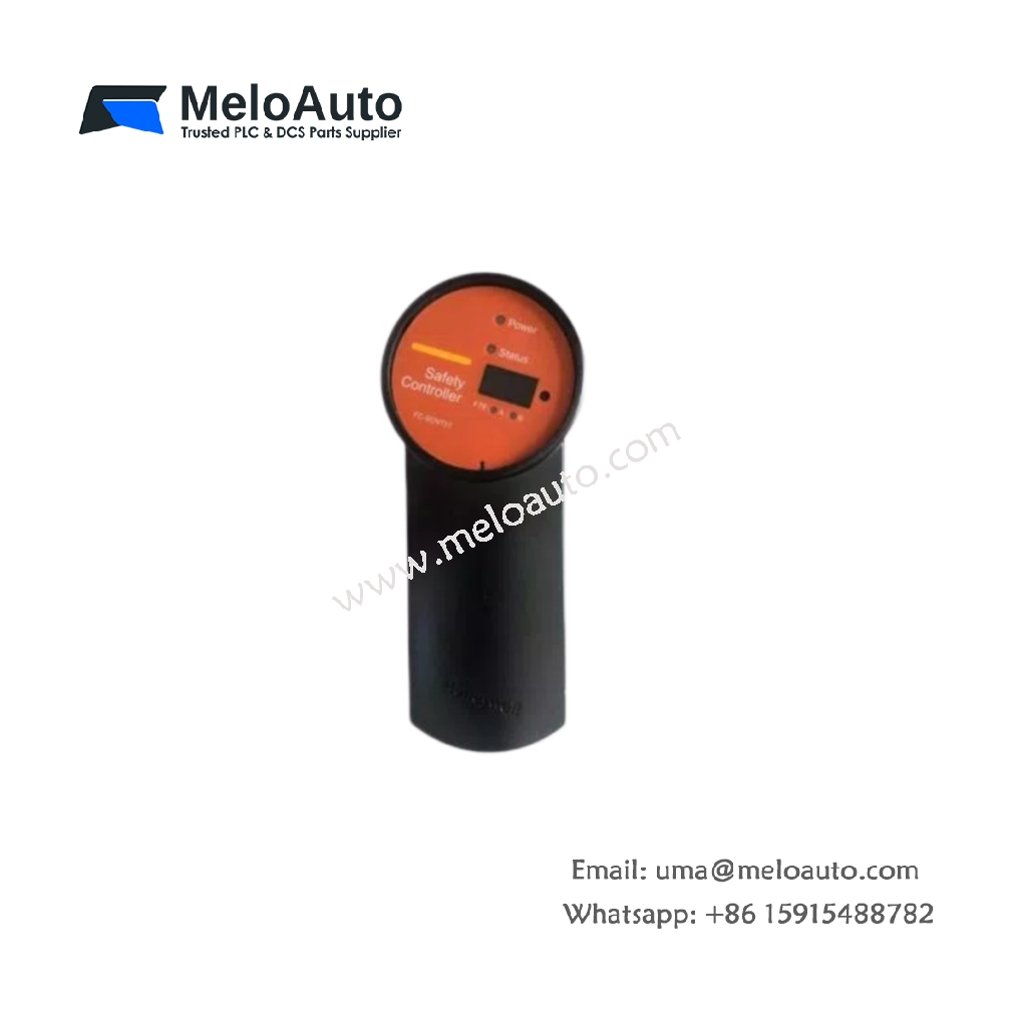

Honeywell FC-SCNT02 S300 Safety Controller

High-Performance Safety Logic Processing

The FC-SCNT02 serves as the central processing unit for the Honeywell S300 safety controller series. This module executes safety-critical logic programs with a cycle time of just 10 milliseconds. It supports up to 128 digital I/O points and 64 analog channels per system configuration . Consequently, the controller handles demanding emergency shutdown, fire and gas, and burner management applications.

Multi-Processor Architecture and Safety Integrity

The FC-SCNT02 employs a dual-processor architecture with independent diagnostic processors operating in parallel. Each processor executes the safety application and compares results to ensure fault-free operation . The module achieves SIL 3 certification according to IEC 61508 and IEC 61131 standards. Moreover, it performs comprehensive self-tests every 100 ms to detect any internal hardware faults . The controller also includes a watchdog timer that triggers a safe state upon any failure.

Memory Capacity and Communication Interfaces

The FC-SCNT02 provides 8 MB of flash memory for program storage and 4 MB of RAM for runtime data. This memory capacity supports complex logic applications with up to 10,000 function blocks . The module includes two Ethernet ports for Modbus TCP and OPC connectivity. Additionally, it features two RS-485 serial ports for Modbus RTU device integration . The controller also supports 1 ms time-stamping for sequence-of-events recording.

Technical Specifications
