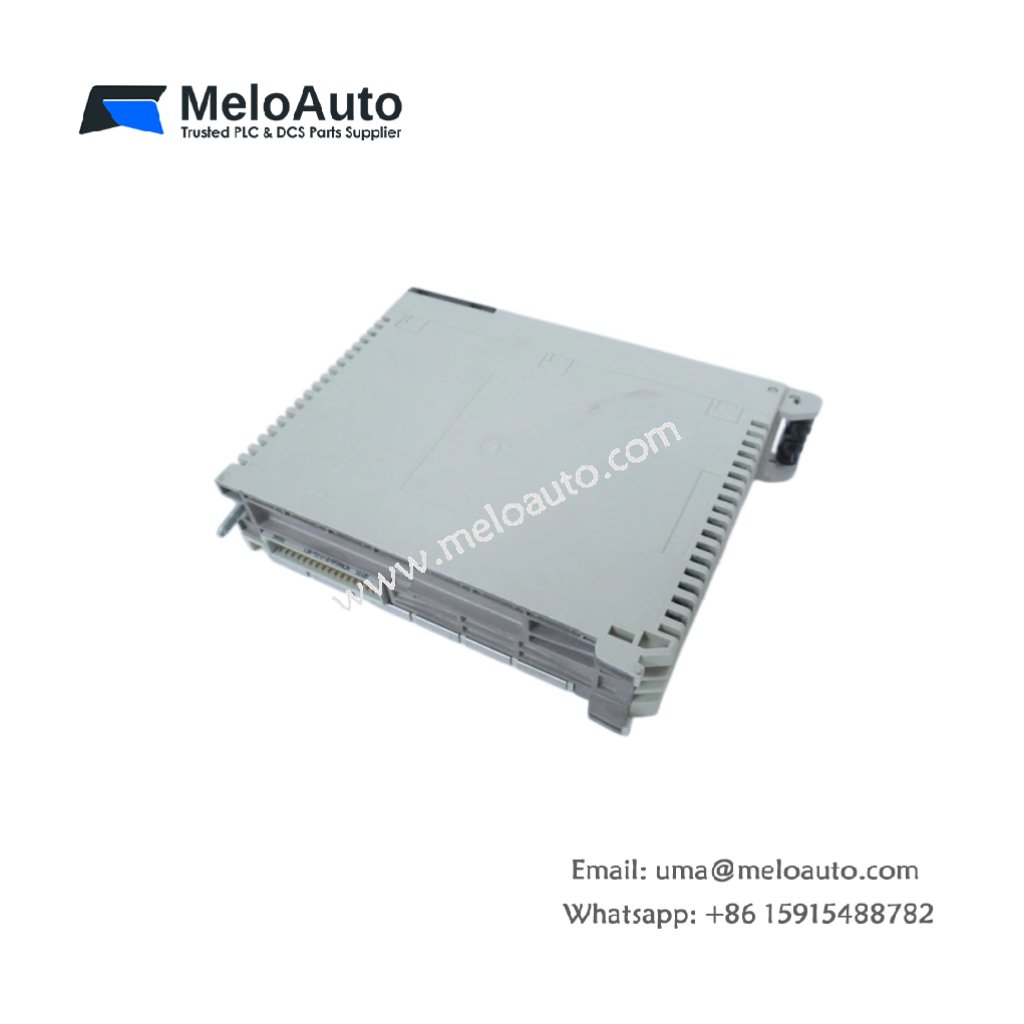

Schneider TSXDSY16S5 Discrete Output Module

The TSXDSY16S5 provides 16 discrete output channels for Schneider PLC systems. This module switches DC loads directly from your control logic. Its rectangular frame measures 130 millimeters in width. The module height reaches 120 millimeters exactly. Depth stays at a compact 90 millimeters. You will find this unit weighs approximately 0.35 kilograms. Therefore, installation requires only a single DIN rail clip. One 20-pin removable terminal block handles all field wiring connections.

Physical Layout and Connectors

The 20-pin terminal block accepts wires up to 16 AWG gauge. Each channel uses two pins for output and return paths. A green LED illuminates when the corresponding output activates. Four mounting tabs secure the module to standard TS35 DIN rails. You can remove the terminal block without disconnecting field wires.

Technical Specifications

Parameter	Specification
Module Width	130 mm
Module Height	120 mm
Module Depth	90 mm
Unit Weight	0.35 kg
Output Channels	16 (sourcing)
Terminal Block	1 x 20-pin removable
Component Total	124 discrete parts
Output Voltage	24V DC (19.2–30V range)
Output Current	0.5A per channel (max)
Total Current	8A (all channels combined)
Protection	Short circuit and thermal
Response Time	1 ms (on/off)
Operating Temperature	0°C to +60°C

Internal Design and Energy Storage

The TSXDSY16S5 contains exactly 124 discrete components onboard. A 470 microfarad capacitor bank filters the internal logic supply voltage. Sixteen power MOSFETs perform the actual output switching duties. Each MOSFET includes built-in overcurrent shutoff protection. Individual optocouplers isolate the logic side from field power. The module also stores configuration data in EEPROM memory.

Operational Performance

This discrete output module sources 24V DC to field devices like relays. It handles up to 0.5 amperes per channel continuously. Moreover, the module provides short circuit protection on every output. You can connect incandescent lamps, solenoids, or indicator LEDs directly. The unit reports overload faults back to the PLC processor. Sixteen status LEDs show real-time output states at a glance. Consequently, you achieve reliable control of factory floor equipment. Schneider designed this module for Modicon Premium automation systems. Its conformal coating resists humidity and light contamination.

In summary, the TSXDSY16S5 delivers robust discrete output control. Use this module for machine automation or conveyor systems. It ensures dependable switching across all 16 channels. Order this output module for your Schneider PLC rack.
