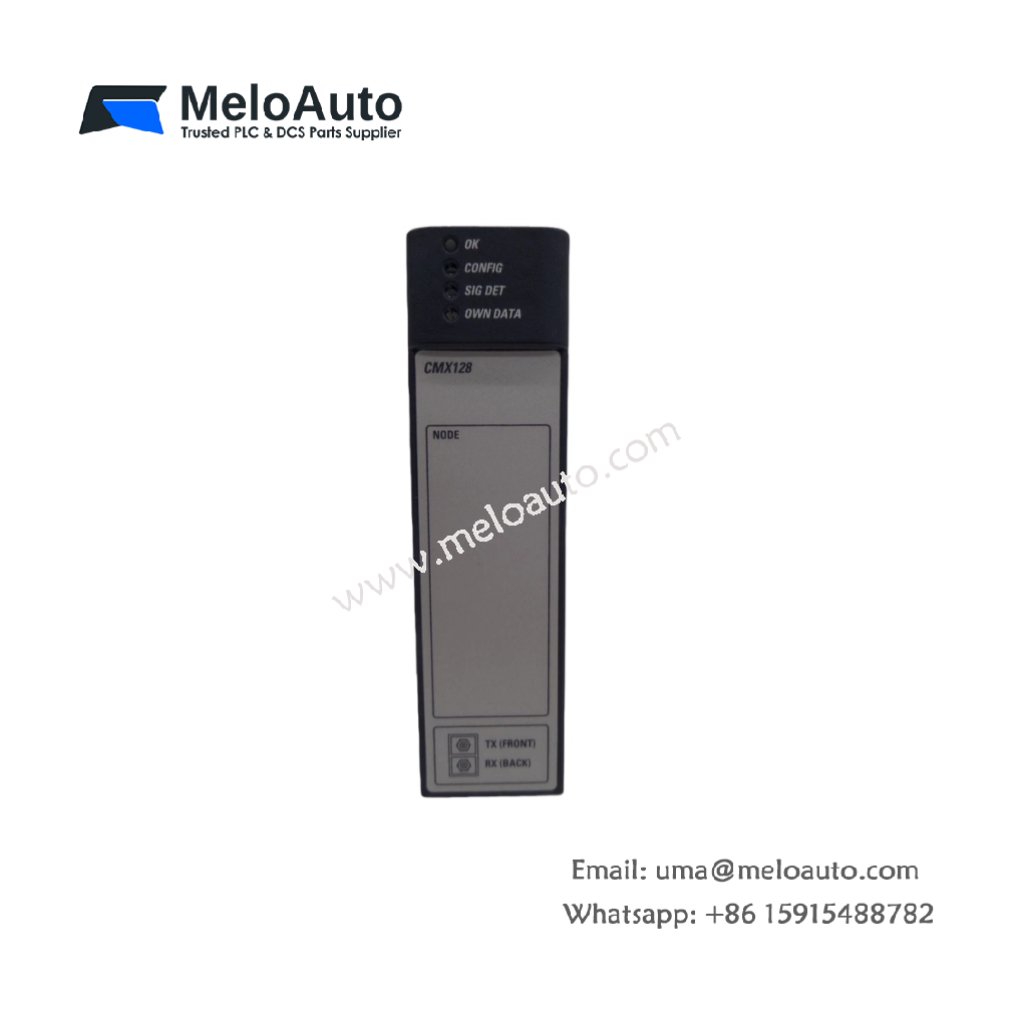

GE IC695CMX128 RX3i Control Memory Xchanger Module

The GE IC695CMX128 RX3i Control Memory Xchanger Module, designed by GE Fanuc, plays a critical role in enhancing communication within GE’s PacSystems RX3i series. It enables fast data exchange between PLCs and other network devices, utilizing a high-speed fiber-optic network.

Key Specifications

Product Features

• Fast Data Transfer: The IC695CMX128 module supports 2.1 Gbits/sec bus speed, enabling quick and reliable data transfer.
• 128MB User Memory: It offers 128MB SDRAM, providing ample memory to store data and enhance system performance.
• Fiber Optic Network Integration: With fiber-optic support, this module ensures high-speed data exchange across the network.
• Long-Distance Capability: The module works with up to 300 meters of multimode fiber, making it suitable for large-scale installations.
• Clear Status Indicators: The four green status LEDs (OK, CONFIG, SIG DELETE, OWN DATA) offer clear feedback on the module’s operation.
• Daisy Chain Network: The nodes are connected in a daisy-chain loop using fiber-optic cables, ensuring continuous and stable data transmission.

Dimensions and Weight

• Net Weight: 1.00 lbs (0.45 kg)
• Dimensions:
  • Depth: 135 mm
  • Height: 33 mm
  • Width: 85 mm

Product Overview

The GE IC695CMX128 Control Memory Xchanger Module is designed for seamless communication between GE RX3i PLCs and other devices. It features reflective memory technology that supports up to 256 nodes, ideal for real-time data exchange in industrial automation systems.

This module operates in a single-slot form factor and can easily integrate with GE RX3i universal backplanes. It also supports software-configurable node parameters and requires Proficy Machine Edition Logic Developer Software (version 5.80 or later) for configuration.

Equipped with an optical transceiver and two LC fiber optic ports, the IC695CMX128 provides reliable, high-speed connectivity. The networked modules form a daisy chain, where each node transmits and receives data across the entire network.

Conclusion

The GE IC695CMX128 is the ideal solution for efficient, high-speed data exchange within GE’s RX3i PLC systems. Its advanced memory technology, quick data transfer rates, and robust fiber-optic network support make it an essential component for automation applications. Whether you’re working on a small-scale or large-scale network, this module ensures smooth and reliable communication.
