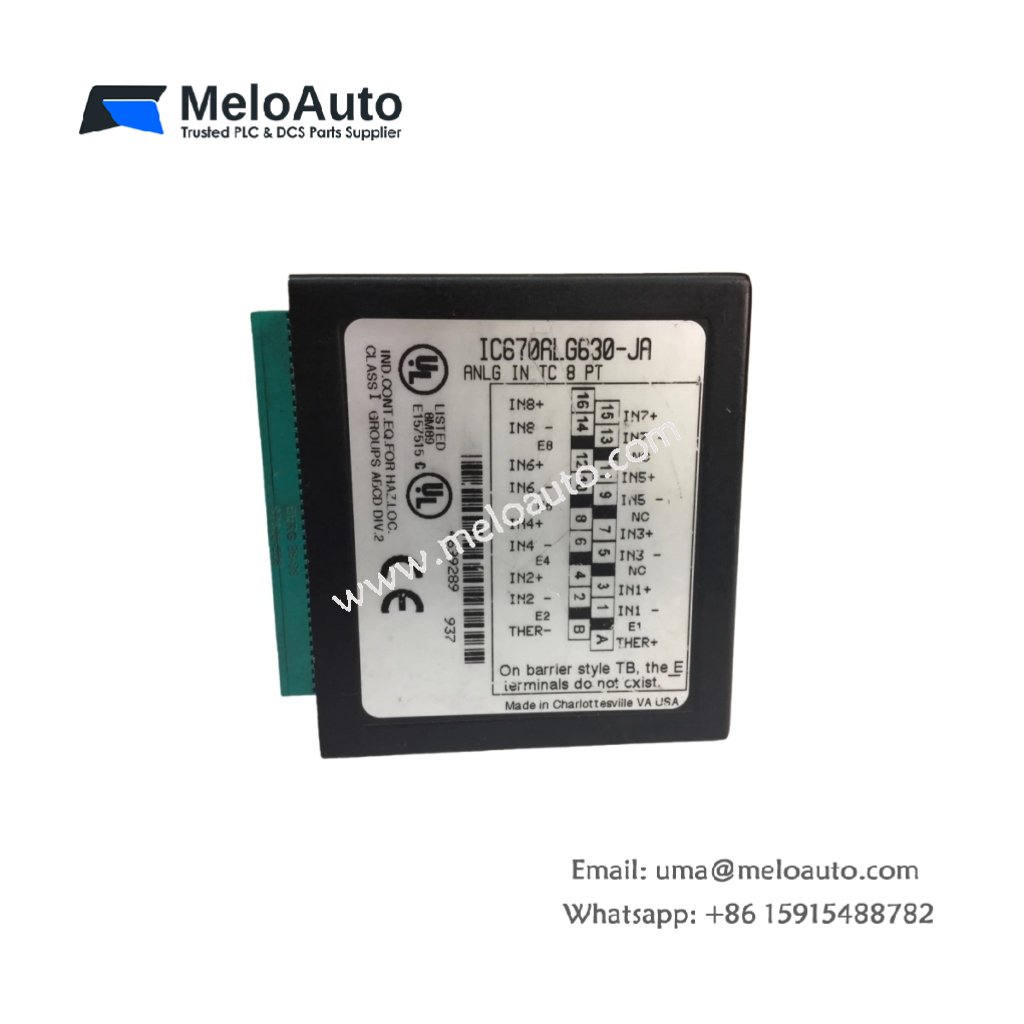

GE IC670ALG630 Thermocouple Input Module

The GE IC670ALG630 is an advanced thermocouple input module designed for integration into GE Fanuc’s Genius PLC system. This module efficiently processes up to eight independent temperature signals, enabling highly accurate and reliable temperature measurements. Supporting a wide range of thermocouple types, it ensures flexibility for various industrial applications.

Key Features & Specifications

Product Description

The GE IC670ALG630 Thermocouple Input Module processes temperature data with outstanding precision. It offers eight independent channels that allow you to connect up to eight thermocouples, each with a high-resolution 15-bit converter. This feature enables accurate readings with a sensitivity of ±0.004% of reading or ±1.5mV per °C.

You can configure the module to support a variety of thermocouple types, including J, K, T, E, S, R, B, N, G, C, and Platinel II, providing flexibility for different industrial applications. The module supports various spans such as ±19.5mV, 39mV, 78.125mV, 156.25mV, 312.5mV, and 625mV, ensuring compatibility with a wide range of temperature measurement needs.

Furthermore, up to eight IC670ALG630 modules can be connected to a single GE Fanuc BIU (Bus Interface Unit). This setup allows you to process up to 64 thermocouple signals within a single control system. You can configure and customize the reference parameters for each module using GE Fanuc’s proprietary handheld programmer.

The GE IC670ALG630 module has a status LED indicator for easy monitoring. When the LED is on, it indicates proper operation. If the LED is off, there is no power, and if it is blinking, a fault is present. This simple, intuitive design ensures that you can easily check the system’s health.

Designed to handle harsh industrial environments, the IC670ALG630 has an IP 20 protection rating. It is recommended to install it within a protective enclosure. With an operating temperature range of 0°C to 55°C (32°F to 131°F), this module suits a variety of applications, even in fluctuating environments.

This module draws power directly from the BIU and does not require an external power source. This feature reduces wiring complexity and simplifies installation. It also supports robust fault detection, identifying issues like open thermocouples, over/under range, and high/low alarms, ensuring continuous and reliable operation.

Applications

The GE IC670ALG630 Thermocouple Input Module is ideal for numerous applications, such as:

• Process Control: Monitor temperatures in chemical, petrochemical, and food processing industries.
• Manufacturing Automation: Control temperature-sensitive processes in industrial plants.
• Energy Management: Collect real-time data to optimize energy consumption in industrial systems.
• HVAC Systems: Ensure accurate temperature regulation in heating, ventilation, and air conditioning applications.

Conclusion

The GE IC670ALG630 Thermocouple Input Module provides reliable, accurate temperature measurement for industrial automation. With its ability to handle up to eight thermocouple inputs, a wide variety of thermocouple types, and precise data conversion, this module excels in a variety of demanding applications.
