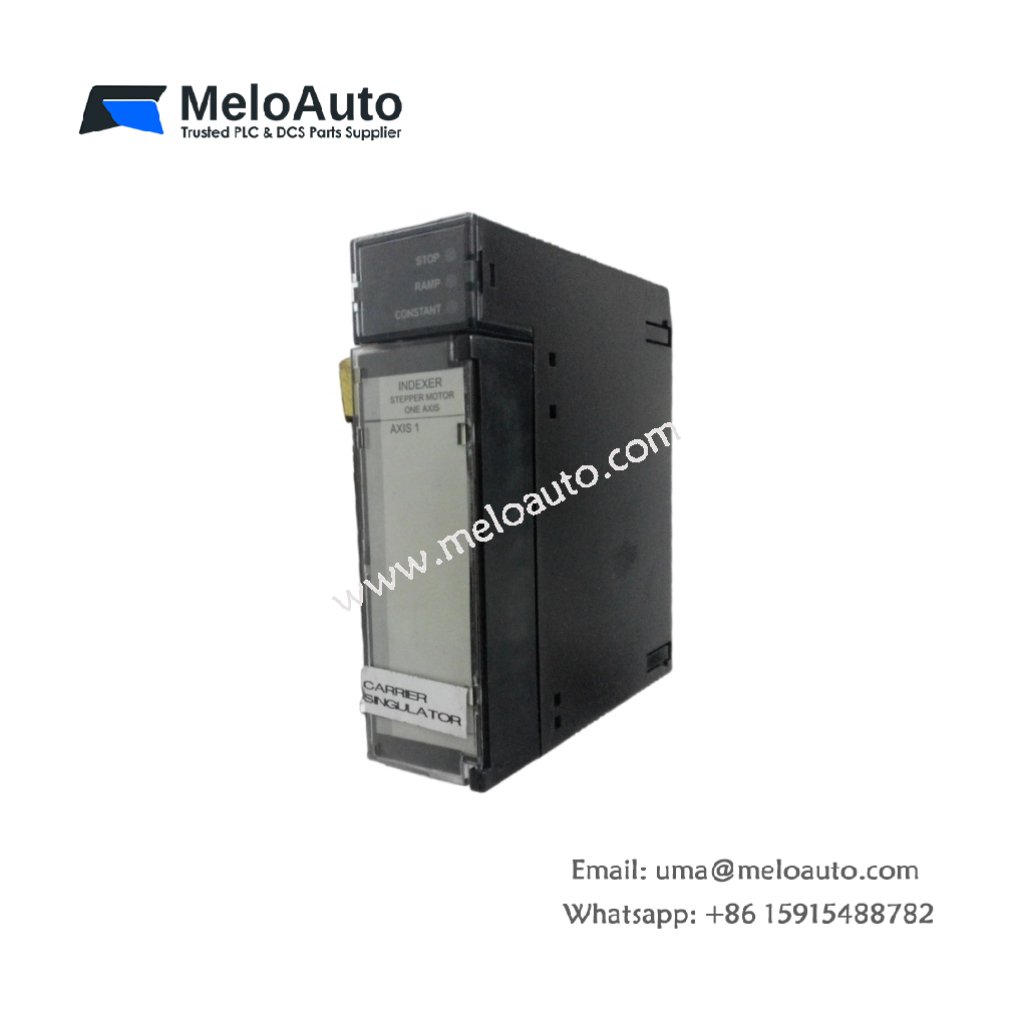

GE HE693STP104 Programmable Motion Control Selective Module

The GE HE693STP104 is a highly efficient Programmable Motion Control Selective Module designed for precise motion control tasks in industrial applications. It integrates seamlessly with the GE Fanuc Series 90-30 PLC, offering users reliable synchronization between control systems and connected devices. This module enables real-time control of motion sequences, allowing for efficient operation of machinery in complex systems.

Key Features & Technical Specifications

Specification	Details
Manufacturer	GE Fanuc Emerson
Model Number	HE693STP104
Product Type	Programmable Motion Control Selective Module
Platform	Series 90-30 PLC
Control Support	Synchronized Motion Control for up to 4 axes
Module Type	Discrete and Analog Outputs
Number of Axes	Up to 4 axes control
Communication Interface	RS-485 Serial Communication
Resolution	16-bit resolution for precise control
Update Time	2 ms update time
Power Supply	24 VDC
Power Consumption	200 mA maximum
Operating Temperature	0°C to 60°C
Module Dimensions	3.5 x 4.5 x 1.5 inches (89 mm x 114 mm x 38 mm)
Weight	0.35 kg (0.77 lbs)
Compatible Software	GE Machine Edition (ME)
Inputs	8 digital inputs
Outputs	4 analog outputs (±10V)
Status Indicators	LED indicators for system status
Fault Detection	Built-in diagnostics and error detection

Product Description

The GE HE693STP104 serves as a critical module in GE Fanuc Series 90-30 PLC systems. It handles complex motion control tasks, managing up to 4 axes of synchronized motion. This programmable motion control module supports discrete and analog outputs, making it suitable for a wide range of applications, from robotics to automated systems.

Designed for high precision, the HE693STP104 offers 16-bit resolution, ensuring accurate and reliable control. With an impressive 2 ms update time, it can respond quickly to changes, ensuring smooth motion sequences. The module supports RS-485 serial communication, allowing for reliable data exchange between connected devices.

This module provides 8 digital inputs and 4 analog outputs (±10V), allowing users to customize control parameters for different motion tasks. The LED status indicators keep operators informed of system performance, and the built-in diagnostics help detect faults, such as communication issues or system errors.

The HE693STP104 operates within a temperature range of 0°C to 60°C, making it ideal for diverse industrial environments. The module receives power from a 24 VDC supply and consumes 200 mA at peak, ensuring low power usage without compromising on performance.

Applications

The GE HE693STP104 is perfect for applications requiring precise and synchronized motion control, such as:

Robotics: Control robotic arms or automated machines with multiple axes.
Manufacturing: Optimize the operation of conveyor belts, production lines, and packaging systems.
Process Control: Ensure accurate control of actuators, valves, and other industrial machinery.
Automated Systems: Manage complex motions in automated material handling or assembly systems.

Conclusion

The GE HE693STP104 is a powerful programmable motion control selective module that offers precision, flexibility, and reliability for motion control applications. With support for up to 4 axes of motion, discrete and analog outputs, and robust diagnostic features, it is the ideal solution for automation systems requiring precise motion control.
