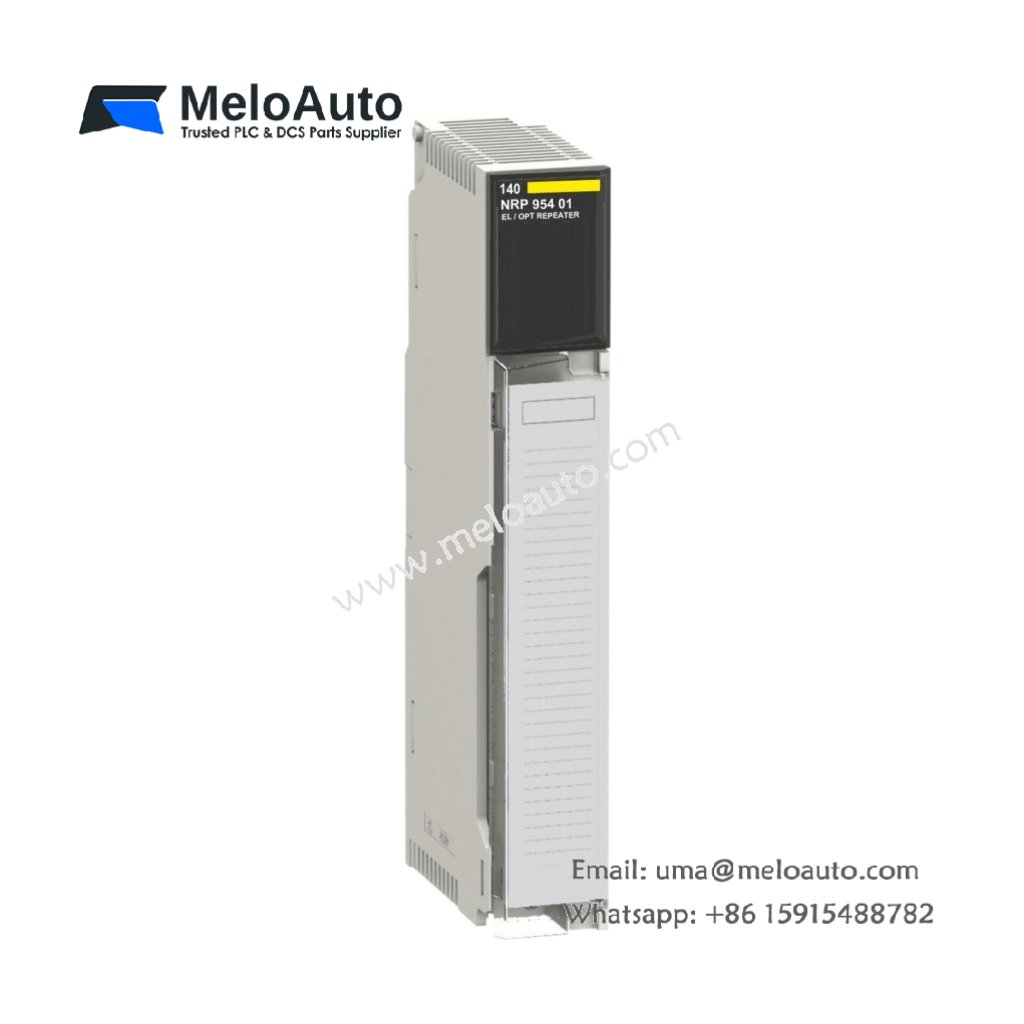

Schneider Electric 140NRP95401C Fiber Optic Repeater – Modicon Quantum Series

Reliable Fiber Optic Communication for Industrial Networks

The Schneider Electric 140NRP95401C is a coated single-mode fiber optic repeater from the Modicon Quantum automation platform. It supports long-distance signal transmission up to 16,000 meters using LC connectors, ensuring precise and interference-free communication between remote I/O devices. With a compact design and low power consumption, it delivers efficient data transfer for high-performance industrial control systems.

Technical Specifications

LED Status Indicators

• 1 Green LED (RDY): Module ready
• 1 Red LED (ERR): Internal fault or failure
• 1 Green LED: Coaxial communication status
• 2 Green LEDs: Optical link activity
• 1 Red LED: Fault detected
• 1 Red LED: Activity detection

Dimensions and Weight

• Width: 40.34 mm (1.59 in)
• Height: 250 mm (9.8 in)
• Depth: 103.85 mm (4.09 in)
• Net Weight: 0.554 kg (1.221 lbs)

Environmental Conditions

• Operating Temperature: 0…60 °C (32…140 °F)
• Storage Temperature: -40…85 °C (-40…185 °F)
• Relative Humidity: 0…95 % (non-condensing)
• Operating Altitude: 0…2000 m (0…6562 ft)

Product Advantages

The 140NRP95401C ensures stable signal quality across long fiber runs, making it ideal for distributed control systems. Its rugged PC housing and CE-certified design offer superior durability under harsh industrial conditions. The built-in LED indicators simplify troubleshooting and status monitoring, while the efficient 5W power draw supports energy-conscious automation systems.

Origin

• Country of Manufacture: France
