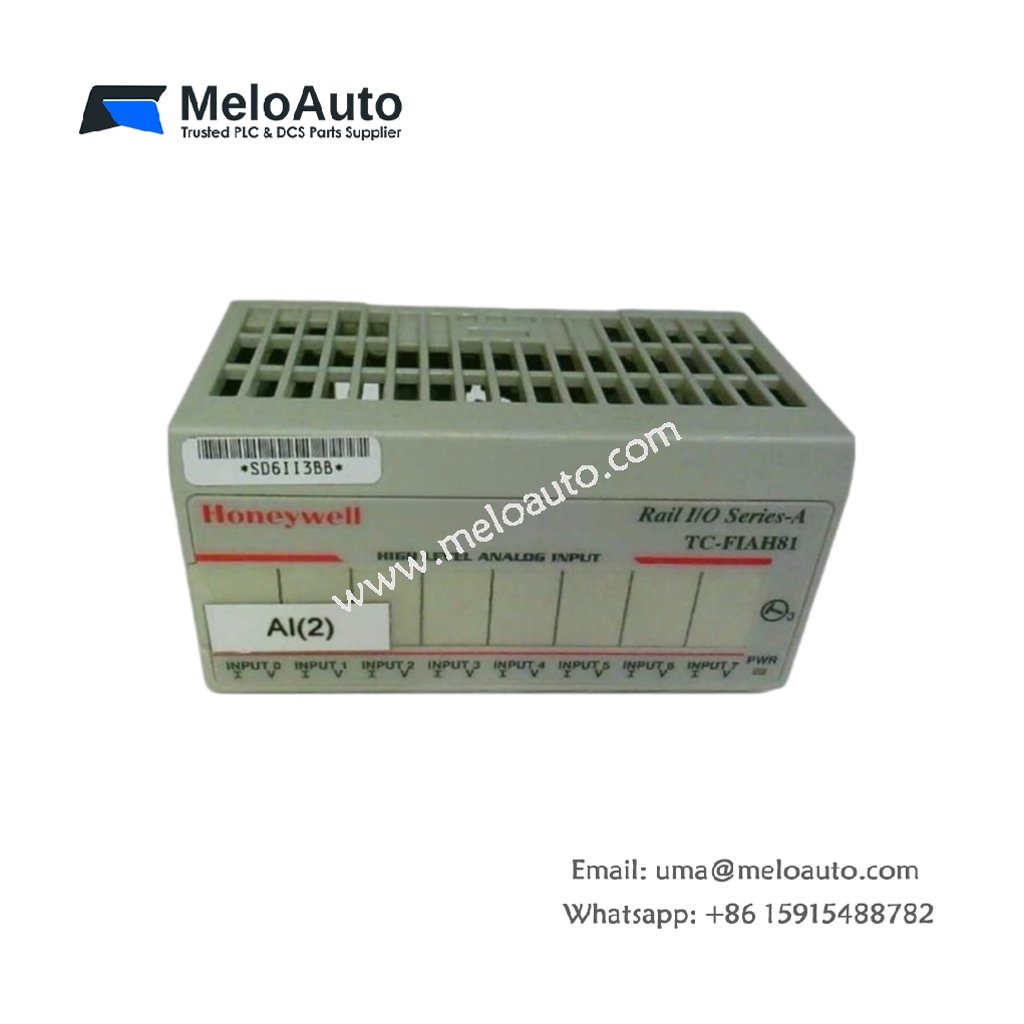

Honeywell TC-FIAH81 Analog Input Module

This analog input module acquires process signals for Honeywell Experion control systems. The TC-FIAH81 converts field sensor inputs into digital data for the host controller. It handles current and voltage signals from transmitters and transducers accurately. Process engineers choose this module for its high-density channel count and precision. Its compact design integrates seamlessly into Experion I/O rack configurations.

Technical Specifications Summary

Parameter	Specification
Input Channels	8 differential analog inputs
Input Types	4-20 mA, 0-10 V, or 1-5 V (software-configurable)
Resolution	16-bit for exceptional measurement precision
Accuracy	±0.05% of full scale at 25 °C
Temperature Drift	±25 ppm/°C maximum
Input Impedance	250 Ω for current, >10 MΩ for voltage
Scan Rate	50 ms per channel (all 8 in 400 ms)
Common Mode Rejection	120 dB minimum at 50/60 Hz
Normal Mode Rejection	70 dB minimum at 50/60 Hz
Input Filter	Programmable digital filter for noise rejection
Open Circuit Detection	Automatic detection for current inputs
Isolation Voltage	1500 V RMS between field and logic
LED Indicators	Power and channel status per input
Dimensions (H x W x D)	130 mm x 40 mm x 120 mm
Weight	0.3 kg
Power Consumption	2.5 W from +5 V DC backplane
Field Power Required	24 V DC external supply (for current loops)
Operating Temperature	0 °C to +55 °C
Storage Temperature	-40 °C to +85 °C
Relative Humidity	5% to 95% non-condensing

Input Channel Architecture and Configuration

The module provides eight differential analog input channels for versatile field interfacing. Each channel independently accepts 4-20 mA, 0-10 V, or 1-5 V signals. The TC-FIAH81 configures input types through software without hardware modification. This flexibility accommodates various sensor types and signal standards. Current inputs present a 250 ohm impedance for standard loop compatibility. Voltage inputs offer over 10 megohms for minimum signal loading. Users set input ranges and scaling per channel via Experion software.

Precision Conversion and Measurement Accuracy

The module delivers high-precision measurements with 16-bit analog-to-digital conversion. This resolution ensures accurate process variable representation for critical loops. Accuracy reaches ±0.05% of full scale at 25 degrees Celsius ambient. Temperature drift remains within ±25 parts per million per degree Celsius. The TC-FIAH81 performs automatic calibration to compensate for component aging. It includes programmable digital filtering to reject process and electrical noise. Engineers select filter characteristics to suit application response requirements. These features ensure dependable measurement data for process monitoring.

Signal Processing and Noise Rejection

The module incorporates advanced signal processing for accurate measurement in noisy environments. Common mode rejection exceeds 120 dB, eliminating ground loop interference. Normal mode rejection reaches 70 dB, attenuating 50 and 60 Hz power line noise. The TC-FIAH81 also provides input filtering to smooth rapid fluctuations. Users program filter time constants through the configuration software. The module converts all input signals to engineering units for direct process use. It applies linearization for non-linear sensor types as needed. This processing ensures stable, reliable input data for the control system.

Diagnostics and Fault Detection Capabilities

The module includes comprehensive diagnostic features for reliable operation. It automatically detects open circuits on current input channels. The TC-FIAH81 also monitors for input signals exceeding or falling below valid ranges. It reports these fault conditions to the host controller for immediate action. LED indicators on the front panel display power and channel status clearly. Users can perform loop checks and verification through diagnostic functions. These features simplify commissioning and reduce troubleshooting time substantially.

Mechanical Construction and Installation

The module occupies a single slot in the Experion I/O rack. It measures 130 millimeters high, 40 millimeters wide, and 120 millimeters deep. The unit weighs only 0.3 kilograms for straightforward handling. Power consumption draws 2.5 watts from the +5 V DC backplane supply. The module requires an external 24 V DC supply for current loop operation. A removable terminal block accepts 22-14 AWG wire for field connections. Installation requires inserting the module and connecting the field wiring. The front panel provides easy access for visual inspection of status.

Environmental Specifications and Operational Durability

Industrial environments require consistent performance under varying conditions. The TC-FIAH81 operates reliably from 0 °C to 55 °C ambient temperatures. Storage conditions range from -40 °C to 85 °C for shipping protection. Humidity tolerance covers 5% to 95% without condensation affecting circuits. Conformal coating protects circuit boards from moisture and airborne contaminants. The module includes transient suppression on all signal and power connections. These design features ensure long-term dependable operation in process applications.
