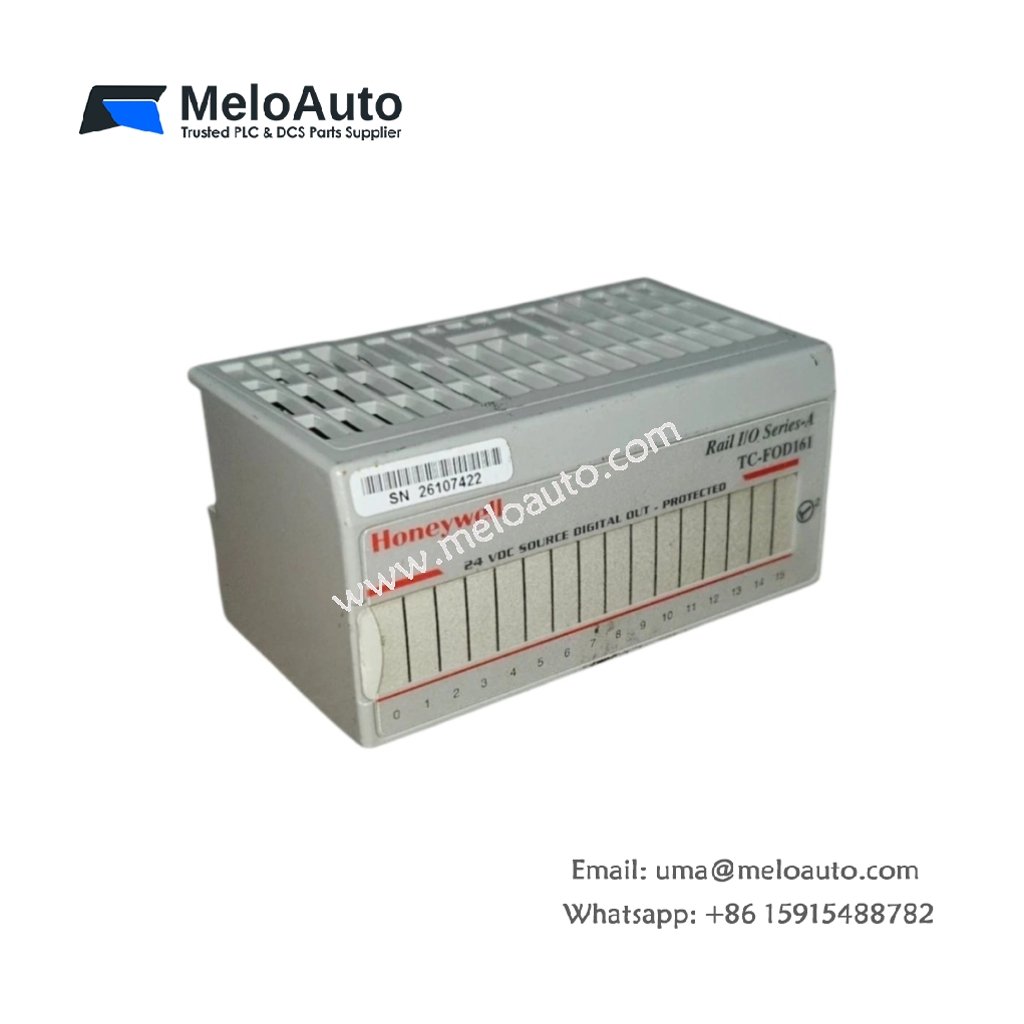

Honeywell TC-FOD161 Digital Output Module

This digital output module drives field devices from Honeywell Experion control systems. The TC-FOD161 provides 16 discrete output channels for controlling solenoids, relays, and indicator lamps. It delivers 24 V DC signals to field equipment with reliable switching performance. Process engineers select this module for its high channel density and robust protection features. Its compact design fits into standard Experion I/O rack positions.

Technical Specifications Summary

Parameter	Specification
Output Channels	16 discrete sourcing outputs
Output Voltage	24 V DC nominal (18-30 V DC range)
Output Current per Channel	0.5 A maximum continuous
Total Module Current	8 A maximum (all outputs combined)
Output Type	Sourcing (positive logic) transistor outputs
Inrush Current Capability	2 A for 10 ms per channel
On-State Voltage Drop	< 1.0 V at rated current
Off-State Leakage	< 0.5 mA at 24 V DC
Short-Circuit Protection	Individual channel current limiting
Inductive Kickback Protection	Internal freewheeling diodes
Response Time (ON)	0.5 ms typical
Response Time (OFF)	0.5 ms typical
Isolation Voltage	1500 V RMS between field and logic
Power Dissipation	12 W maximum (all outputs energized)
LED Indicators	Individual per-channel output status
Dimensions (H x W x D)	130 mm x 40 mm x 120 mm
Weight	0.3 kg
Power Consumption	200 mA from +5 V DC backplane
Field Power Required	24 V DC external supply
Operating Temperature	0 °C to +55 °C
Storage Temperature	-40 °C to +85 °C
Relative Humidity	5% to 95% non-condensing

Output Architecture and Channel Configuration

The module provides 16 sourcing output channels for driving DC field loads. Each channel delivers 24 V DC power to the connected field device. The TC-FOD161 arranges outputs into two isolated groups of 8 channels. This grouping simplifies wiring for loads sharing common power returns. Each output includes an individual LED indicator for visual status confirmation. The module supports both continuous and intermittent load operation reliably. Field power connects through a removable terminal block for convenience. This architecture suits various discrete control applications in process plants.

Output Protection and Fault Handling

The module incorporates comprehensive protection features for reliable field operation. Each output channel includes short-circuit current limiting for fault tolerance. This protection prevents damage from wiring errors or load shorts. The TC-FOD161 features internal freewheeling diodes for inductive load protection. These diodes eliminate the need for external suppression components on relay coils. The module monitors output voltage and current for abnormal conditions. It reports fault events to the host controller for operator notification. These protective features enhance system reliability and reduce maintenance requirements.

Switching Performance and Response Characteristics

The module responds rapidly to control commands from the host controller. Turn-on time reaches only 0.5 milliseconds for fast actuation requirements. Turn-off time matches at 0.5 milliseconds for consistent switching performance. This fast response suits high-speed material handling and packaging applications. The outputs handle inrush currents up to 2 amperes for 10 milliseconds. This capability accommodates incandescent lamp loads and capacitive devices effectively. The TC-FOD161 maintains stable output characteristics across its operating temperature range. Switching performance remains consistent regardless of load variations or duty cycles.

Electrical Isolation and Noise Immunity

For system protection, the module provides 1500 V RMS isolation between field and logic. This isolation prevents ground loops from affecting the Experion backplane. It also protects the controller from field-side voltage transients and spikes. The TC-FOD161 incorporates optical coupling for signal transfer across the isolation barrier. This design eliminates electrical continuity between field wiring and logic circuits. All outputs feature transient suppression for industrial electromagnetic environments. The module operates reliably in electrically noisy plant areas near motors and drives.

Mechanical Construction and Installation

The module occupies a single slot in the Experion I/O rack. It measures 130 millimeters high, 40 millimeters wide, and 120 millimeters deep. The unit weighs 0.3 kilograms for straightforward handling during installation. A removable terminal block accepts 22-14 AWG wire for field connections. The module draws 200 milliamperes from the +5 V DC backplane supply. It requires an external 24 V DC field power source for output operation. Installation requires simply inserting the module and connecting field wiring. The front panel provides easy access to status indicators and terminal connections.

Environmental Specifications and Long-Term Reliability

Industrial control rooms require stable operation under typical environmental conditions. The TC-FOD161 operates reliably from 0 °C to 55 °C ambient temperatures. Storage conditions range from -40 °C to 85 °C for shipping and warehousing. Humidity tolerance covers 5% to 95% without condensation affecting performance. Conformal coating on the circuit board protects against moisture and dust. The module includes transient suppression on all field connections. These design features ensure consistent operation throughout the module’s extended service life.
