Technical Specifications and Module Design

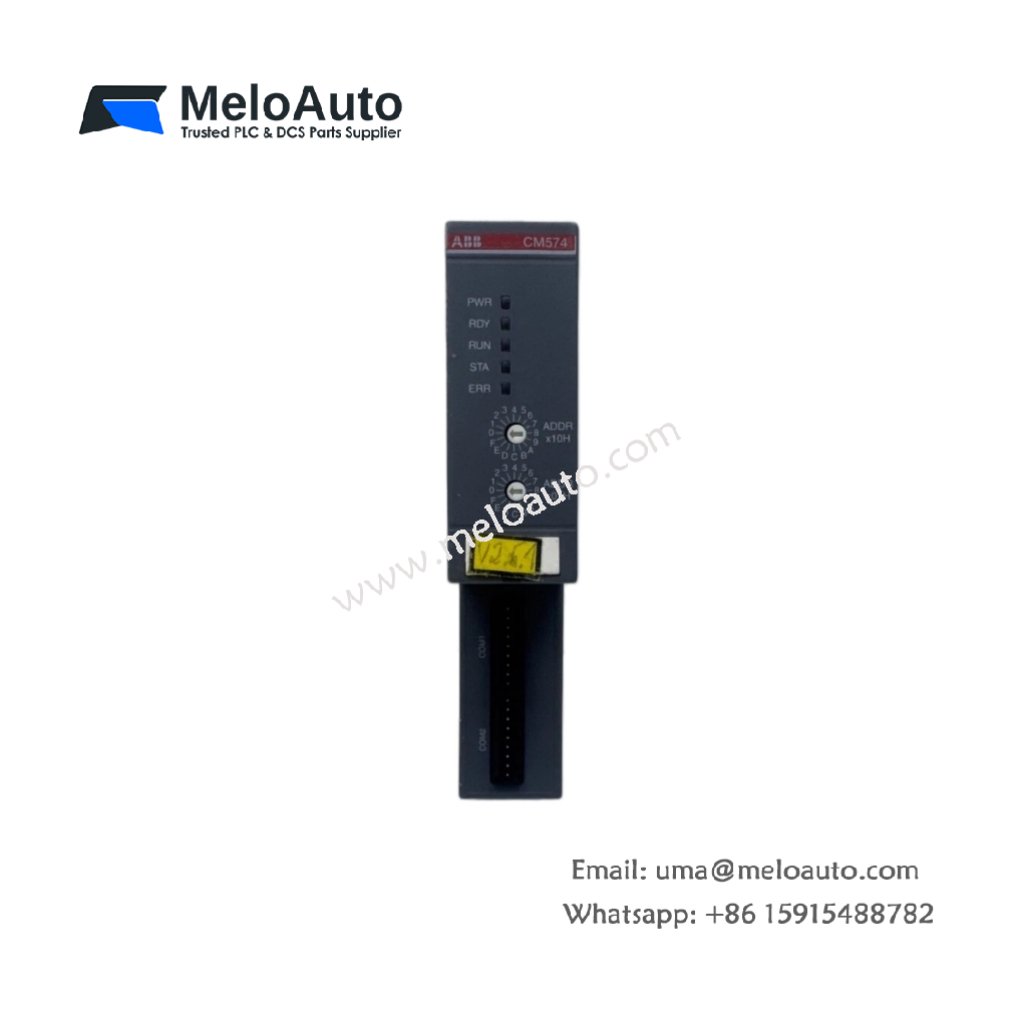

This serial communication module provides RS-232 and RS-485 connectivity for ABB AC500 PLCs. The ABB 1SAP170400R0001 enables data exchange with drives, HMIs, and third-party devices. You can mount this module directly onto a standard DIN rail in your cabinet. Its compact design requires no additional rack or backplane hardware. The module weighs approximately 0.09 kilograms. Its dimensions measure 9.5 cm in height, 6 cm in width, and 7 cm in depth.
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | 1SAP170400R0001 |
| Category | Serial Communication Module / RS-232/485 Interface |
| Weight | 0.09 kg |
| Height | 9.5 cm |
| Width | 6 cm |
| Depth | 7 cm |
| Number of Ports | 2 (1 x RS-232, 1 x RS-485) |
| RS-232 Connector | 9-pin D-sub (male) |
| RS-485 Connector | 5-pin removable screw terminal |
| Communication Speed | 9.6 Kbps to 115.2 Kbps |
| Maximum Cable Length (RS-232) | 15 meters |
| Maximum Cable Length (RS-485) | 1200 meters at 9.6 Kbps |
| Protocols Supported | Modbus RTU (master/slave), ABB CP400 |
| RS-485 Termination | Built-in, selectable via DIP switch |
| RS-485 Bias Resistors | Built-in, selectable via DIP switch |
| Isolation Voltage | 500V DC (RS-485 only) |
| Power Supply | 5V DC (from CPU via bus) |
| Power Consumption | 0.8 Watts maximum |
| Energy Storage | None (no battery) |
| Component Count | Single PCB with dual UARTs, line drivers, and isolation |
Serial Port Configuration and Features
Port 1 provides standard RS-232 signals for short-distance communication up to 15 meters. This port includes RTS and CTS hardware handshake lines for flow control. Port 2 supports RS-485 for multi-drop networks with up to 32 devices. The ABB 1SAP170400R0001 allows 2-wire or 4-wire RS-485 configurations via jumpers. You can set the communication speed using the programming software. The module automatically detects the baud rate when configured as a Modbus slave. A green LED indicates power and communication activity on each port.
Protocol Support and Data Exchange
The module implements the Modbus RTU protocol for universal compatibility with industrial devices. You can configure the module as a Modbus master or slave independently per port. The ABB 1SAP170400R0001 also supports the ABB CP400 protocol for operator panel connections. The CPU exchanges data with the module through internal system memory addresses. You do not need special function blocks for basic Modbus communication tasks. A yellow LED flashes when the module transmits or receives data. The module handles CRC checking and exception responses automatically.
Installation and Network Guidelines
You must plug this module into the dedicated communication slot on the AC500 CPU. The module does not require any external power supply for operation. The ABB 1SAP170400R0001 draws all power from the CPU through the bus connector. You must use shielded twisted-pair cable for all RS-485 network connections. This cable must terminate at both ends with the built-in 120-ohm resistors. You should enable bias resistors on only one device per network segment. The module requires no external battery for normal communication operation. The operating temperature ranges from -20°C to +60°C.
