Technical Specifications and Module Design

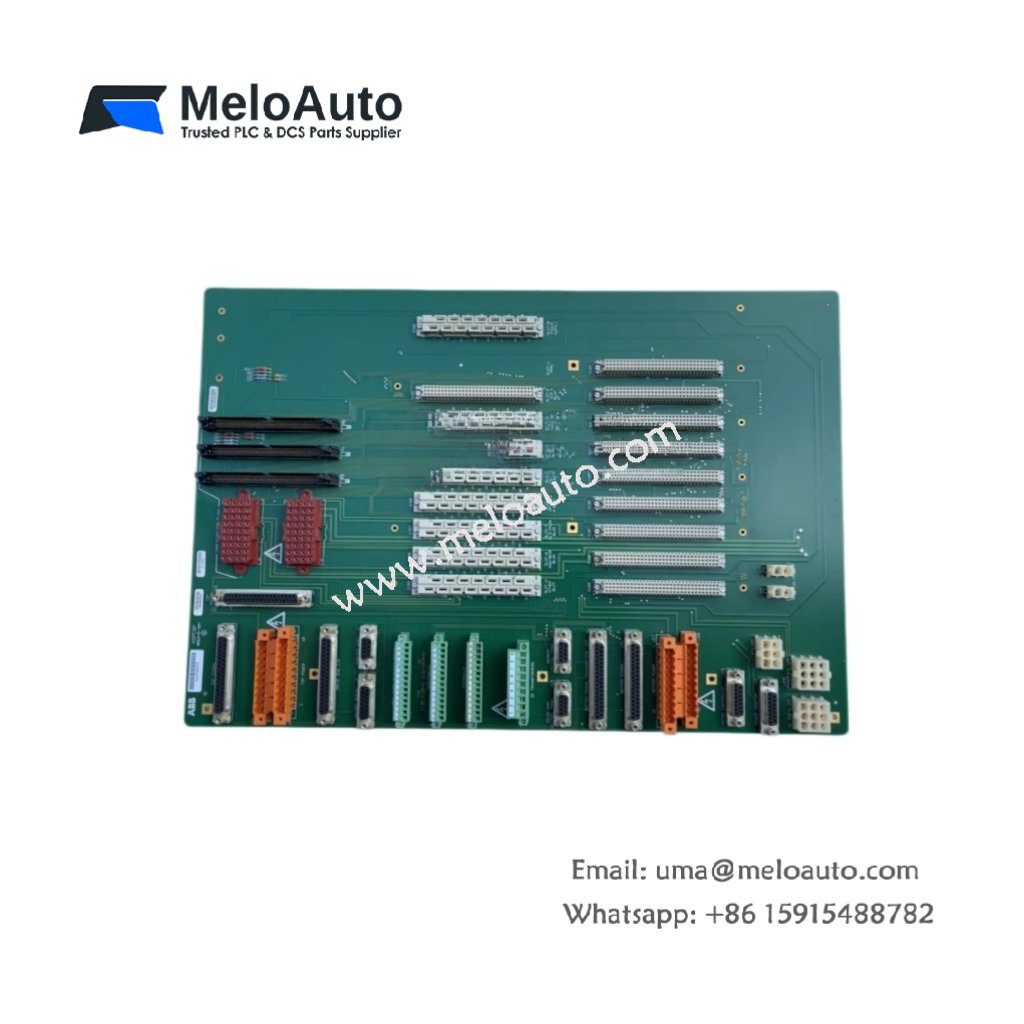

This Accuray ASPC module provides advanced servo positioning control for ABB industrial systems. The ABB 086345-004 manages precise axis motion for high-accuracy applications. You can install this module into any compatible Accuray or Procontic rack slot. Its high-speed processor handles complex servo algorithms in real time. The module weighs approximately 0.85 kilograms. Its dimensions measure 27 cm in height, 23 cm in width, and 21 cm in depth.
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | 086345-004 |
| Category | Accuray ASPC Module / Advanced Servo Position Controller |
| Weight | 0.85 kg |
| Height | 27 cm |
| Width | 23 cm |
| Depth | 21 cm |
| Number of Control Axes | 2 axes (simultaneous) |
| Position Resolution | 0.0001 mm (0.000004 inch) |
| Servo Update Rate | 250 microseconds per axis |
| Encoder Input Type | Differential RS-422 (5V) |
| Maximum Encoder Frequency | 10 MHz per channel |
| Analog Output | ±10V DC (16-bit resolution) |
| Analog Inputs | 4 channels (0-10V DC) |
| Discrete Inputs | 8 channels (24V DC) |
| Discrete Outputs | 4 channels (24V DC, 0.25A) |
| Control Algorithm | PID with feedforward and notch filter |
| Energy Storage | None (no battery) |
| Component Count | Single PCB with DSP, encoder interfaces, and analog circuits |
Servo Control and Positioning Performance
The module executes servo algorithms with extremely fast 250 microsecond update rates. It controls two axes simultaneously for coordinated motion applications. The ABB 086345-004 provides PID control with velocity and acceleration feedforward. The module includes programmable notch filters for mechanical resonance suppression. It accepts quadrature encoder signals with up to 10 MHz input frequency. A green LED indicates proper servo loop closure and axis synchronization. The module supports both absolute and incremental encoder feedback.
I/O Integration and Machine Interface
The module provides four analog inputs for torque or velocity command monitoring. It also includes eight discrete inputs for limit switches and home sensors. The ABB 086345-004 offers four discrete outputs for brake control and status indication. The ±10V analog output commands the servo drive torque or speed reference. The module monitors encoder position for following error detection. A yellow LED flashes when any axis exceeds the programmed following error limit. The module can also accept hall sensor signals for brushless motor commutation.
Installation and Operational Guidelines
You must insert this module into a dedicated servo control slot in the rack. The backplane supplies 5V and ±15V DC power to the module automatically. The ABB 086345-004 draws approximately 350 mA from the 5V supply rail. You must use shielded twisted-pair cables for all encoder and analog connections. This practice prevents electrical noise from corrupting position feedback. The module requires no external battery for normal servo operation. You should tune the PID parameters for each axis during commissioning. The operating temperature ranges from 0°C to 50°C.
