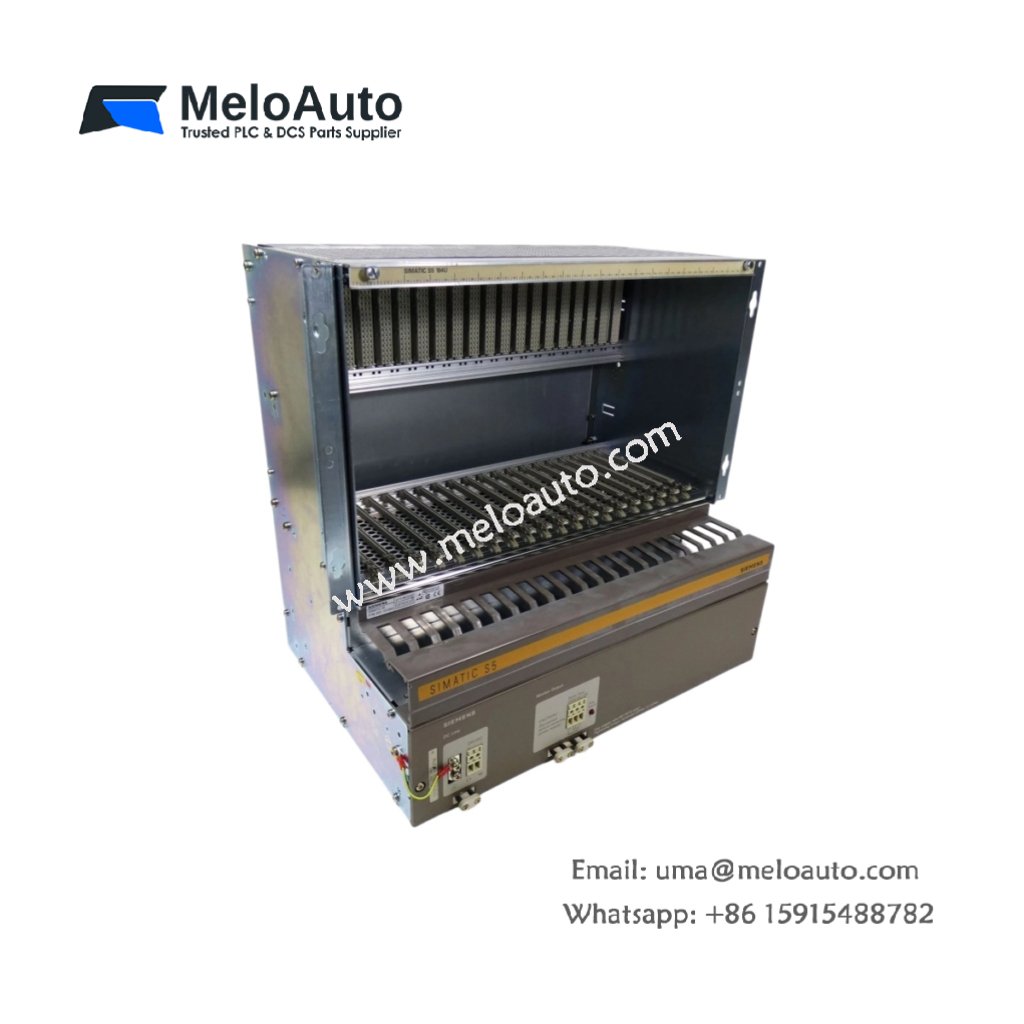

Siemens 6ES5184-3UA21 Expansion Unit for SIMATIC S5

The 6ES5184-3UA21 functions as an expansion unit for the Siemens SIMATIC S5 PLC system. This unit adds four I/O module slots to your existing controller configuration. It connects to the central controller through a dedicated interface cable. Therefore, this expansion unit enables larger control systems without replacing existing hardware.

Technical Specifications

We engineered this expansion unit for reliable operation in industrial environments. Its rugged metal construction provides excellent mechanical support for installed modules. Moreover, the unit includes a passive backplane with no active electronic components.

Bus Architecture and Signal Flow

The 6ES5184-3UA21 provides a passive backplane for all installed I/O modules. This base carries both power and data signals between modules simultaneously. It supports any combination of discrete, analog, and specialty S5 modules. Consequently, you can build a flexible I/O configuration for your specific application needs.

Physical Design and Slot Layout

This expansion unit features a heavy-duty steel chassis for mechanical rigidity. Four module slots accept standard S5 I/O modules without any adapters. The leftmost position accommodates the interface connection to the central controller. Each slot includes a plastic keying mechanism to prevent incorrect module insertion.

Cable Connection and Bus Extension

The 6ES5184-3UA21 requires a 20-pin ribbon interface cable to function. This cable carries the full I/O bus from the central controller. You can locate this expansion unit up to 10 meters away from the main rack. Always use the shielded cable option for long runs to maintain signal integrity.

Energy State and Power Distribution

This passive expansion unit does not contain any energy storage components internally. It draws all necessary operating power from the external S5 power supply module. The backplane distributes 5V DC to each occupied I/O slot equally. No battery backup exists on this unit for data retention purposes.

System Compatibility

The 6ES5184-3UA21 works with all SIMATIC S5 central controllers. It supports both the S5-115U and S5-135U system families. The unit requires a compatible interface module in the main rack. Hence, verify your controller supports expansion units before installation.

Installation Guidance

Mount the 6ES5184-3UA21 using four screws into a panel or rack. Install the power supply module before adding any I/O cards. Connect the 20-pin interface cable from the central controller’s expansion port. Verify all module keys align correctly before inserting each I/O card. Always turn off system power before connecting or disconnecting the interface cable. Ground the chassis using the dedicated ground screw for electrical safety.
