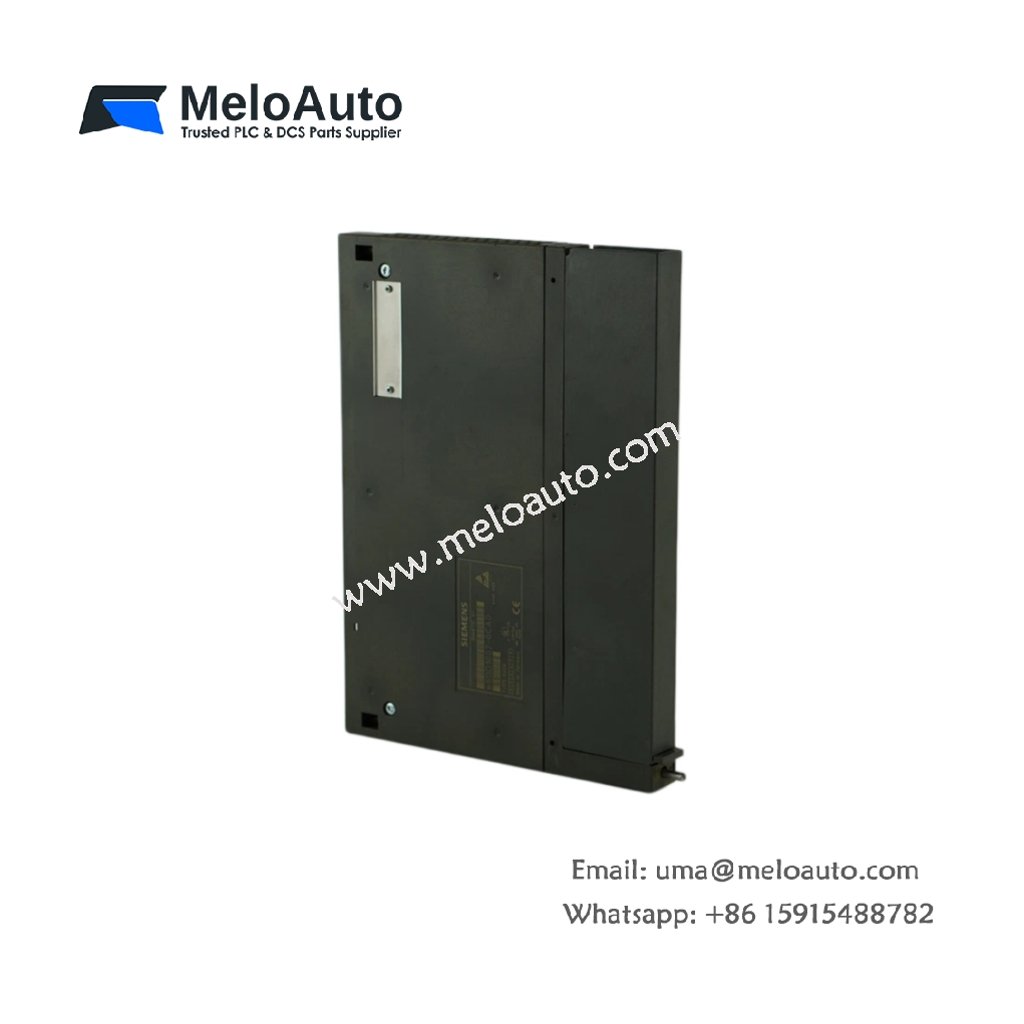

Siemens 6DD1607-0CA0 Expansion Module

Flexible I/O Expansion for SIMADYN D Systems

This expansion module adds additional I/O capacity to SIMADYN D control systems. It provides flexible signal connection for digital and analog field devices. Many facilities use this unit for system upgrades and capacity expansion. The module integrates seamlessly with the SIMADYN D hardware architecture.

Technical Specifications

Parameter	Specification
Model	6DD1607-0CA0
Dimensions	75 mm × 50 mm × 30 mm (W × H × D)
Weight	0.08 kg
Power Supply	5 V DC (from backplane)
Power Consumption	1.5 W typical
Expansion Type	I/O extension interface
Compatibility	SIMADYN D processors and I/O modules
Communication	Backplane bus (parallel)
Signal Types Supported	Digital inputs, digital outputs, analog signals
Isolation	500 V AC (via external modules)
Operating Temperature	0°C to +55°C
Storage Temperature	-40°C to +70°C
Humidity Range	5% to 95% RH (non-condensing)
Protection Class	IP20
Certifications	CE, UL, cULus

Expansion Capabilities and System Integration

This module extends the I/O capacity of SIMADYN D systems significantly. It connects to processors via the backplane bus interface. Users can add digital and analog I/O modules as needed. This flexibility supports growing system requirements effectively.

Compatibility and Module Support

The expansion module works with all SIMADYN D processors and I/O modules. It supports various signal types through connected modules. Users can combine different I/O types in one system. This compatibility ensures seamless integration with existing hardware.

Power Requirements and Energy Consumption

The module draws 1.5 W from the 5 V DC backplane supply. Low power consumption suits dense system configurations. The expansion module adds minimal load to the power budget. This efficiency supports reliable system operation.

Mechanical Construction and Physical Attributes

This expansion module measures 75 mm wide and weighs only 0.08 kg. The compact form factor fits standard SIMADYN D racks. The module mounts securely using built-in guides. The design permits easy installation and removal.

Certifications and Safety Standards

The 6DD1607-0CA0 holds CE, UL, and cULus certifications. These approvals confirm compliance with international industrial standards. Each unit undergoes quality testing before shipment. This commitment ensures reliable performance.
