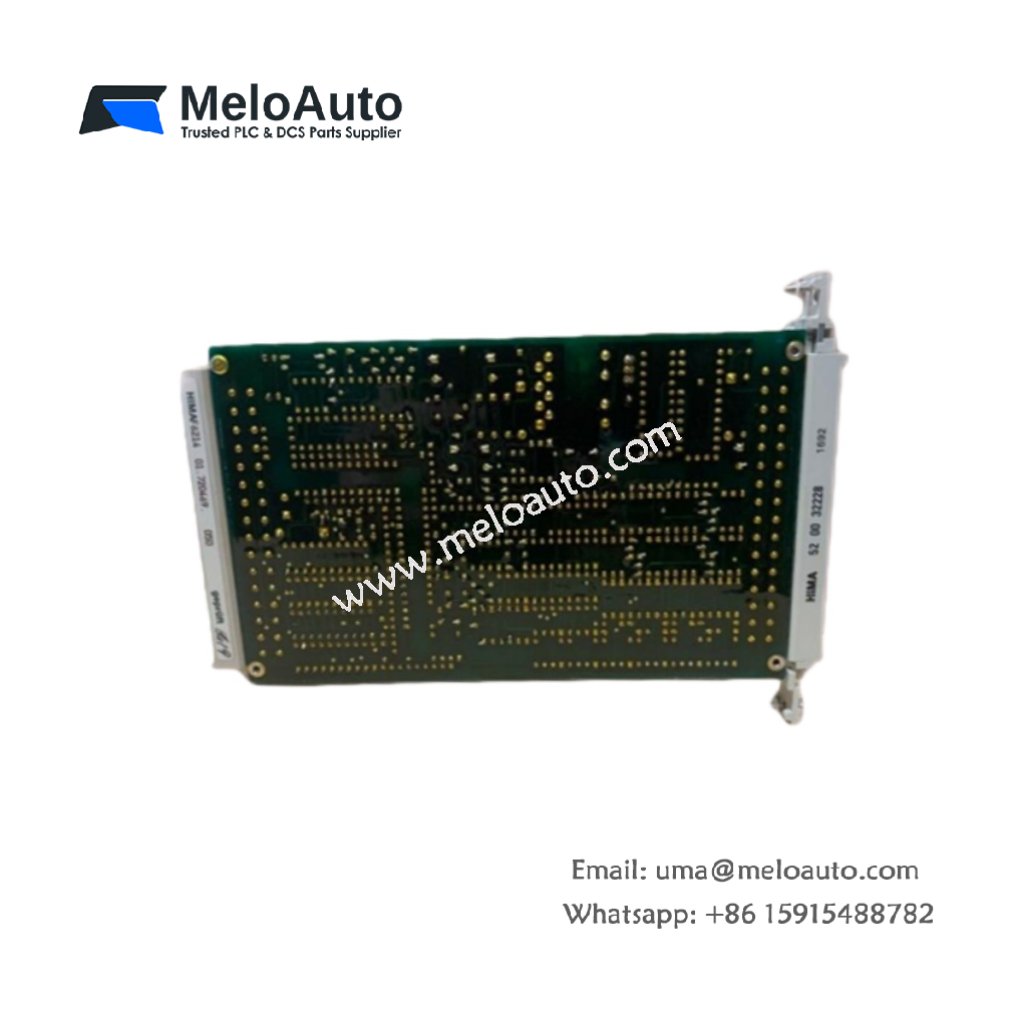

HIMA F6214 | 4-Channel Analog Input Module

Overview

The HIMA F6214 is a high-precision 4-channel analog input module specifically designed for industrial environments. It offers flexibility by supporting a wide range of analog signals, such as 4-20 mA, 0-10 V, and RTD (Resistance Temperature Detector). Notably, it features a SIL 3 safety rating and an IP67 protection class, ensuring reliability even in harsh and safety-critical conditions.

Key Features and Benefits

High Precision: The module guarantees accurate signal measurement, ensuring reliable performance in demanding applications.
Versatile Input Signals: It accepts 4-20 mA, 0-10 V, and RTD signals, which makes it adaptable to various industrial systems.
Safety Compliance: Rated SIL 3, the HIMA F6214 ensures compliance with safety standards, enhancing operational safety.
Rugged Design: With IP67 protection, it withstands extreme environments, including dust and water exposure, increasing system longevity.
Cost-Effective: It provides a reliable and affordable solution, offering a balance between performance and operational cost savings.

Technical Specifications

Parameter	Details
Model Number	HIMA F6214
Type	Analog Input Module
Number of Channels	4
Input Signals	4-20 mA, 0-10 V, RTD
Accuracy	±0.2% Full Scale (FS)
Resolution	16 bits
Sampling Rate	100 Hz
Input Range	-20 mA to +20 mA
Input Impedance	2.2kΩ
Response Time	< 2 ms
Power Consumption	< 2W
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	0% to 95% RH, non-condensing
Protection Rating	IP67

Applications

The HIMA F6214 is ideal for industries that require precise and reliable analog signal measurements, such as:

Industrial Automation: Real-time monitoring of equipment and processes in automated systems.
Process Control: Monitoring crucial parameters, including temperature and pressure, in various process industries.
Safety-Critical Applications: Ensuring compliance with safety standards in machinery and process systems.
Harsh Environmental Conditions: Employed in sectors like oil and gas, power generation, and mining, where durability is essential.

Benefits of Using the HIMA F6214

Accurate Measurement: The module ensures precise and dependable readings for enhanced system reliability.
Compliance with Safety Standards: It meets SIL 3 safety requirements, guaranteeing safe operation in critical environments.
Durability in Harsh Environments: With an IP67 rating, it operates effectively in extreme conditions, providing long-lasting performance.
Flexible Use: Its ability to accept multiple input signals allows for versatile application in different industrial setups.
Extended Operational Life: Built to perform reliably over time, it reduces maintenance needs and system downtime.
