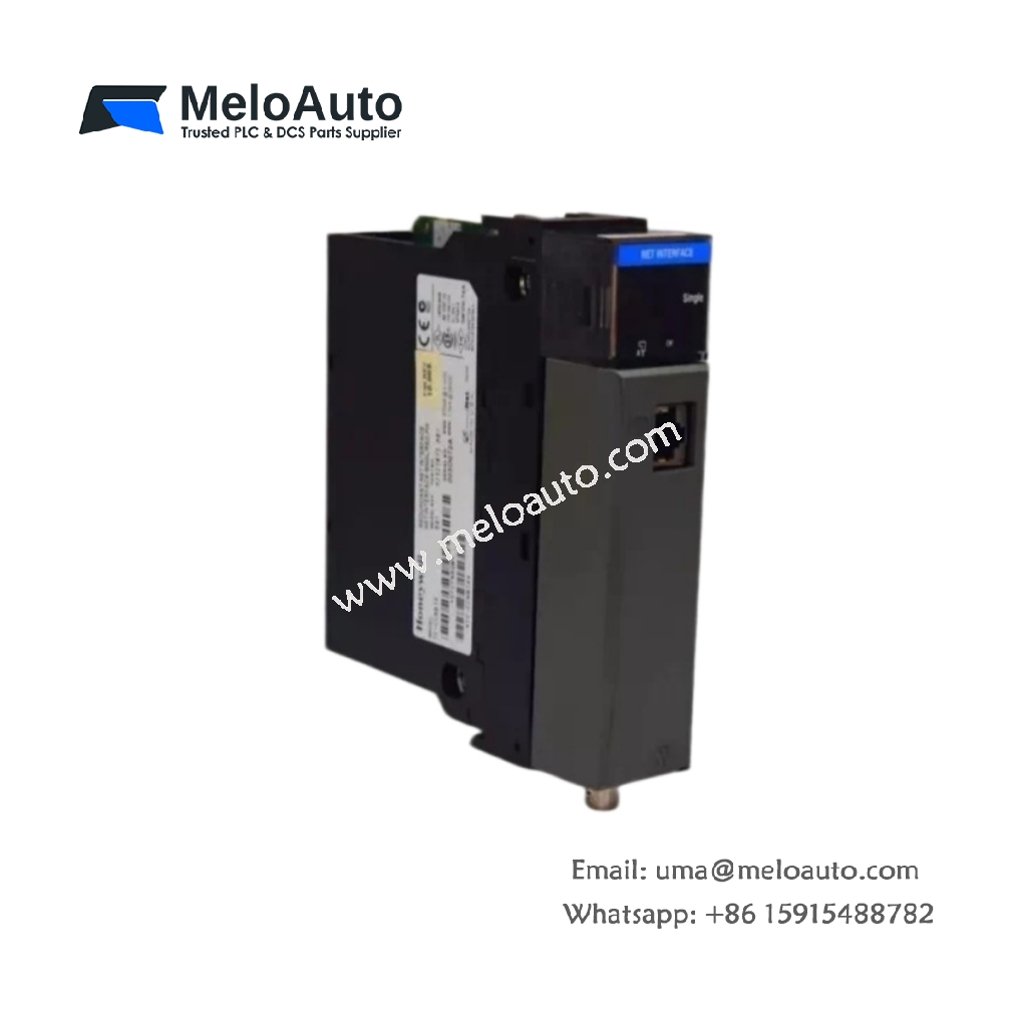

Honeywell TC-FCCN01 Gateway Module

This gateway non-redundant module connects Honeywell Experion systems to plant-wide networks. The TC-FCCN01 facilitates data exchange between control systems and enterprise applications seamlessly. It transfers process variables, alarms, and operational data to higher-level management platforms. System integrators choose this module for cost-effective connectivity in non-critical applications. Its compact single-slot design fits into standard Experion chassis configurations.

Technical Specifications Summary

Parameter	Specification
Network Interface	Ethernet 10/100Base-T with auto-negotiation
Communication Protocol	MODBUS TCP, HTTP, SNMP, and Honeywell protocols
Serial Interface	RS-232-C for configuration and diagnostics
Data Exchange Capacity	1024 bytes input, 1024 bytes output
Data Transfer Rate	400 data points per second to host systems
Buffer Memory	1 MB for data queuing and event storage
Message Queue Capacity	500 pending messages per communication channel
Protocol Conversion	Automatic between fieldbus and enterprise protocols
Diagnostic Interface	RS-232-C port for local configuration and monitoring
Status Indicators	Power, network activity, and communication status
Dimensions (H x W x D)	130 mm x 40 mm x 120 mm
Weight	0.3 kg
Power Consumption	3.5 W from +5 V DC backplane
Operating Temperature	0 °C to +55 °C
Storage Temperature	-40 °C to +85 °C
Relative Humidity	5% to 95% non-condensing

Network Architecture and Protocol Support

The module provides a single Ethernet interface for plant network connectivity. It supports 10/100Base-T with auto-negotiation for speed and duplex settings. The TC-FCCN01 handles MODBUS TCP, HTTP, SNMP, and Honeywell proprietary protocols. This protocol suite enables integration with various enterprise and management applications. The module automatically performs protocol conversion between different network types. It also includes an RS-232-C port for local configuration and diagnostics. This architecture provides essential connectivity for non-redundant system installations.

Data Management and Performance Capabilities

The module manages data exchange efficiently between control and information networks. It transfers up to 400 data points per second to connected host systems. The TC-FCCN01 employs a 1 MB memory buffer for data queuing during traffic peaks. This buffer prevents data loss during temporary network congestion periods. The module handles up to 500 pending messages in its communication queue. It prioritizes critical process alarms over routine data for timely notification. Users can configure data filtering to optimize network bandwidth utilization. These features ensure reliable data delivery for plant information integration.

Diagnostic Features and Configuration Access

The module provides diagnostic capabilities for system monitoring and troubleshooting. It monitors communication status, data transfer integrity, and network health continuously. The TC-FCCN01 offers diagnostic information through its serial port and network interface. Users can access statistics, error counters, and operational status conveniently. Front-panel LEDs display power, network activity, and communication status clearly. A configuration mode allows engineers to set parameters and perform firmware updates. These diagnostic features simplify installation, commissioning, and ongoing maintenance.

Integration and Connectivity Options

The module supports multiple integration options for plant information systems. MODBUS TCP provides connectivity with SCADA, HMI, and data historians. HTTP enables web-based monitoring and data access through standard browsers. SNMP allows integration with network management and monitoring tools. The TC-FCCN01 also supports custom data mapping and formatting. Engineers configure these options through intuitive software tools. This flexibility simplifies integration with both legacy and modern information systems.

Mechanical Construction and Installation

The module occupies a single slot in the Honeywell Experion I/O rack. It measures 130 millimeters high, 40 millimeters wide, and 120 millimeters deep. The unit weighs only 0.3 kilograms for convenient handling. Power consumption draws 3.5 watts from the +5 V DC backplane supply. The module inserts directly into the rack without special tools or hardware. All network and serial connections are accessible from the front panel. The robust housing protects internal electronics from industrial environment stresses.

Environmental Specifications and Operational Reliability

Industrial control rooms present moderate but constant environmental demands. The TC-FCCN01 operates reliably from 0 °C to 55 °C ambient temperatures. Storage conditions range from -40 °C to 85 °C for shipping protection. Humidity tolerance covers 5% to 95% without condensation affecting circuits. The module includes transient suppression on all communication connections. Quality components ensure long-term dependability in non-critical applications. These features make the module suitable for plant information integration.
