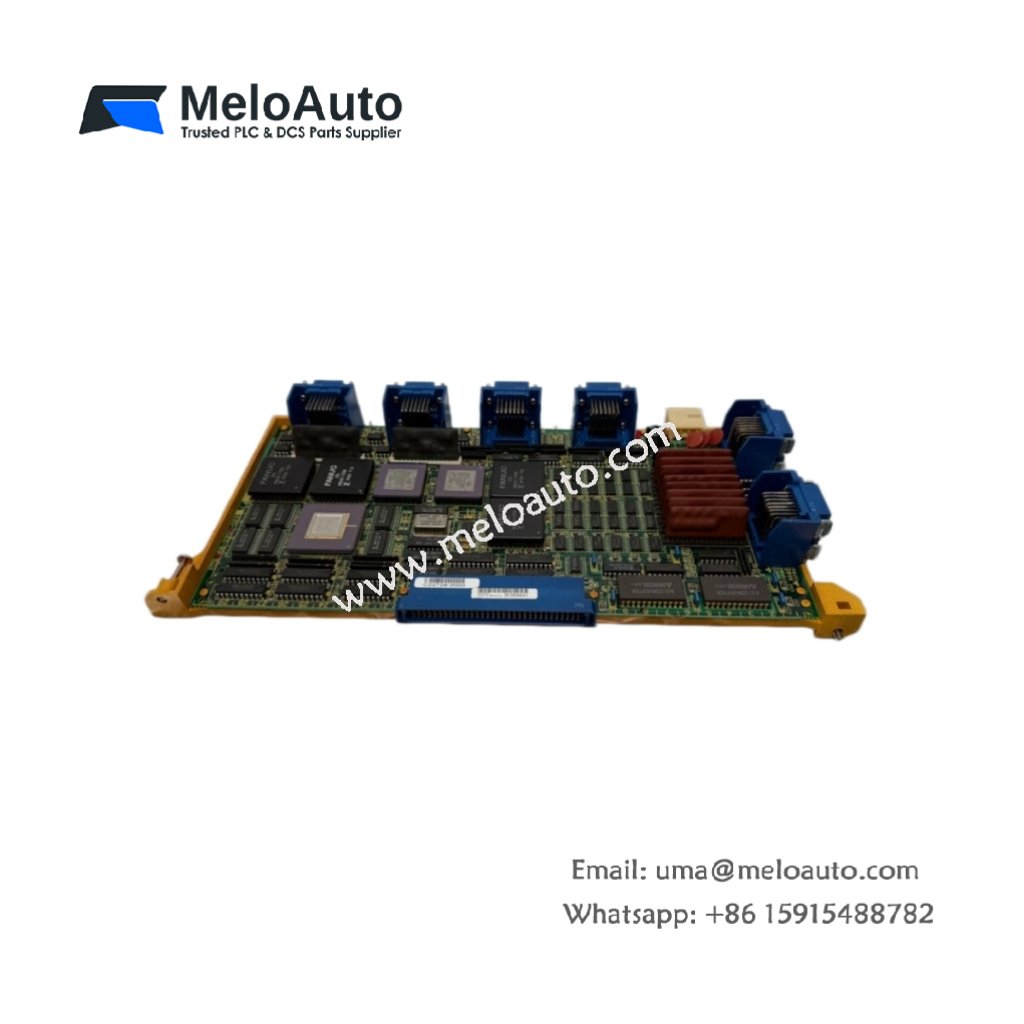

GE A16B-2200-0220/07A Control Board – CNC Power Supply Interface

This control board regulates DC power distribution within GE CNC systems. It monitors voltage levels and protects downstream modules from overload conditions. You will find this board in machining centers and turning centers.

Key Technical Specifications

Physical Layout and Rack Mounting

This control board measures 250 mm in width and 180 mm in height. Its thickness reaches 2.5 mm for a rigid four-layer PCB. The unit weighs 480 grams, indicating a dense component layout. Two 32-pin edge connectors plug directly into the backplane slots.

Internal Architecture and Energy Storage

One hundred fifty-six components populate this power interface board. Five 1000 µF capacitors create a total energy storage of 5000 µF. This capacitor bank filters incoming DC voltage for noise-free output rails. Consequently, sensitive logic circuits receive stable 5V and 12V power. A switching regulator converts the 24V input down to lower voltages efficiently.

Power Regulation and Output Rails

The board provides a regulated 5V rail capable of delivering 3 amps. It also supplies a 12V rail for analog circuits at 1.5 amps. Each output includes independent overcurrent protection with automatic recovery. Therefore, a short on one rail does not collapse the other supply. LED indicators show the status of each output voltage rail clearly.

Protection Features and Monitoring Circuitry

Overvoltage protection clamps the 5V rail at 6.5V maximum. Thermal shutdown disables both outputs when the board exceeds 85°C. The control board also monitors input undervoltage conditions continuously. Upon detecting a fault, it sends a signal to the main CPU. This feature prevents erratic CNC behavior during power supply issues.
