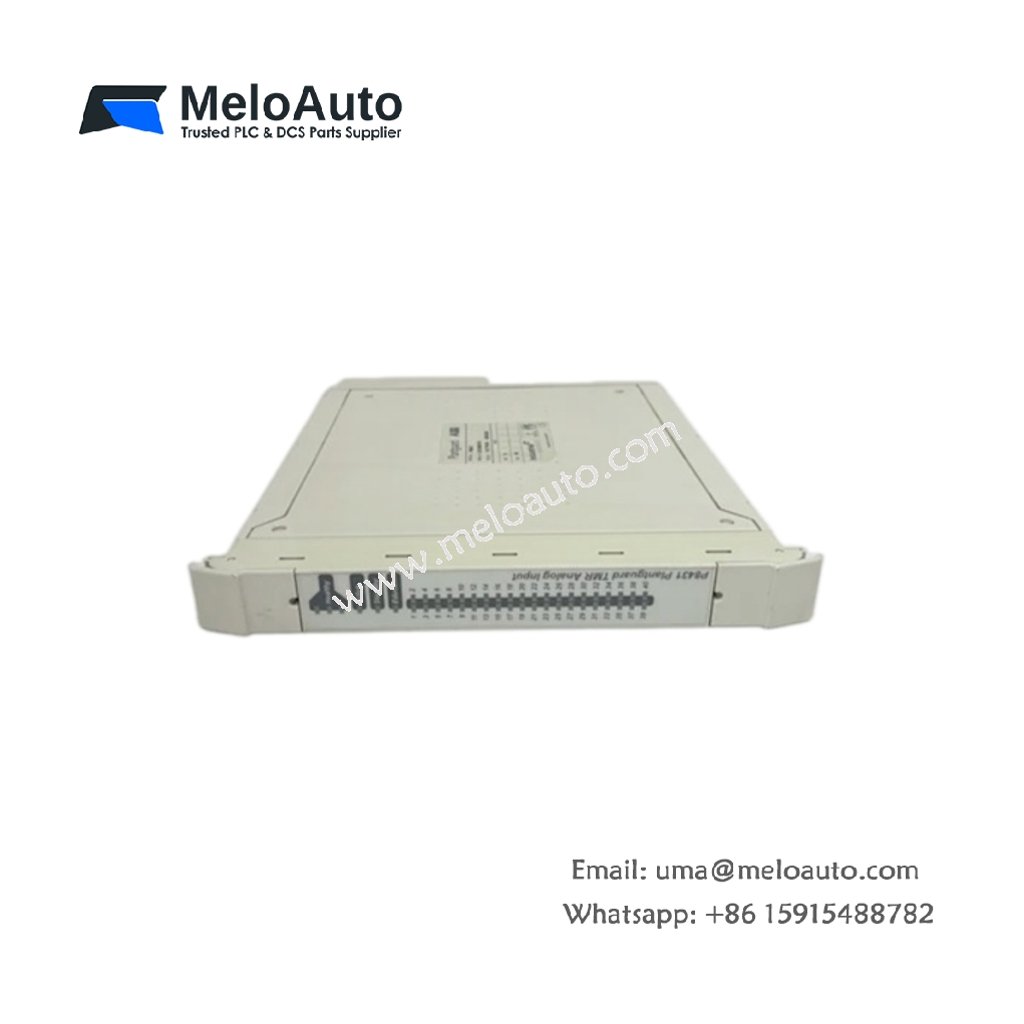

ICS Triplex P8431C Analogue Input Module

The ICS Triplex P8431C Analogue Input Module captures precise process signals from field transmitters. Process engineers depend on this unit for accurate measurement in safety-critical control loops. Accordingly, its design prioritizes signal fidelity and long-term stability.

Key Technical Specifications

The P8431C module provides detailed parameters for accurate system integration. Its compact footprint fits dense rack configurations without compromising channel count.

Parameter	Specification
Module Type	Analogue Input
Dimensions	165 mm x 100 mm x 28 mm
Weight	0.38 kg
Input Channels	8 differential analogue inputs
Input Signal Range	4–20 mA, 0–10 VDC
Resolution	16-bit
Accuracy	±0.1% full scale
Connector Type	25-pin D-sub
Isolation Voltage	500 VDC channel-to-bus
Power Consumption	5.5 W typical
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity Range	5% to 95% non-condensing
Component Count	54 active components
Energy Storage	150 µF capacitor bank
Mounting	Rack-mount chassis
Sampling Rate	100 samples per second

Signal Conversion and Accuracy

Each channel converts analogue signals into 16-bit digital values with high precision. Moreover, the ±0.1% accuracy ensures reliable process control across varying conditions. Therefore, the P8431C suits temperature, pressure, and flow measurement applications.

Power Stability and Isolation

The 150 µF capacitor bank maintains stable voltage during transient load fluctuations. Additionally, 500 VDC optical isolation prevents ground loops from corrupting measurement data. Consequently, plant operators achieve consistent readings in electrically noisy environments.

Installation and Maintenance

Technicians mount the P8431C directly into standard ICS Triplex racks without adapters. Furthermore, the 25-pin D-sub connector simplifies field wiring and rapid module replacement. As a result, maintenance teams minimize downtime during troubleshooting.
