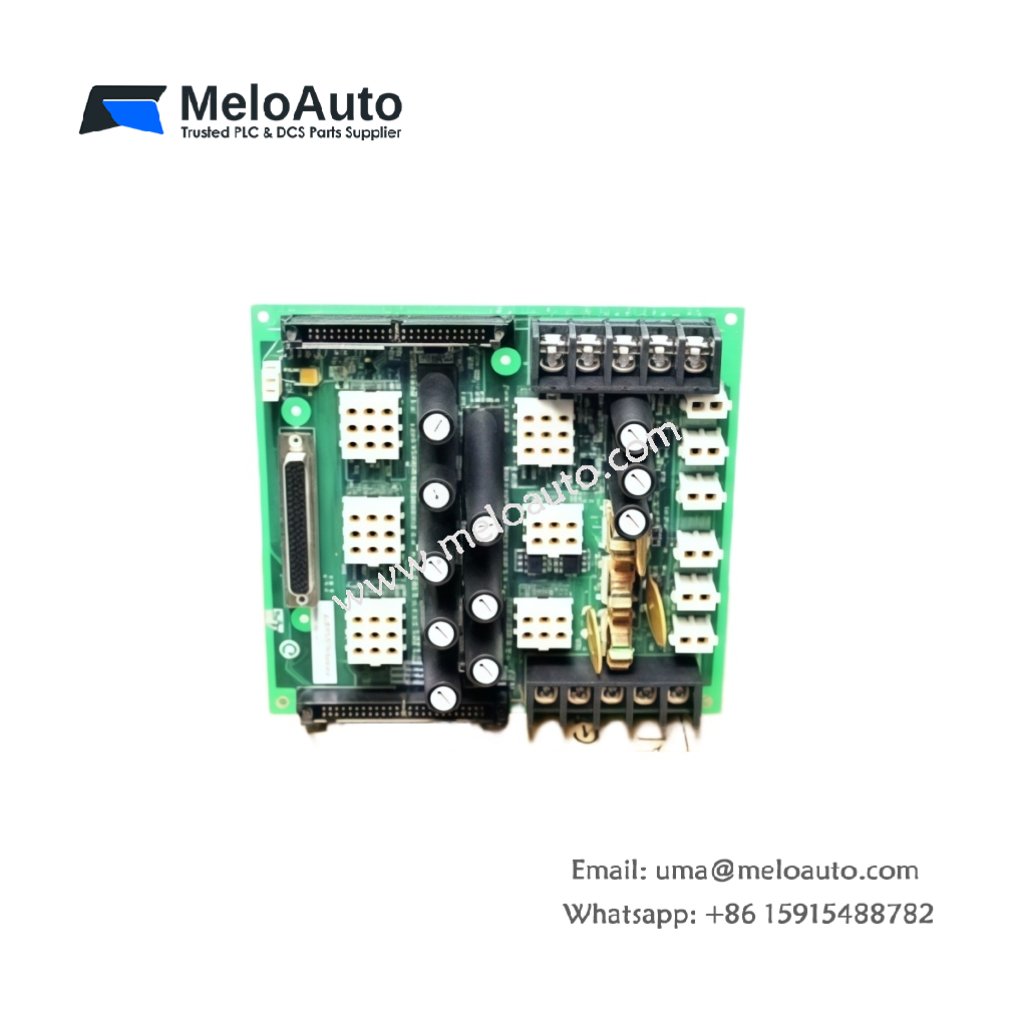

GE IS200JPDMG1A IS200JPDMG1ADC Printed Circuit Board – Mark VI Series

Technical Specifications

The GE IS200JPDMG1A (also IS200JPDMG1ADC) functions as a junction power distribution module. This board measures 25.4 cm in length and 20.3 cm in width. It weighs approximately 1.0 kg. The unit contains one main 64-pin backplane connector for system integration. Additionally, it features two 20-pin ribbon cable headers for auxiliary signal routing. The GE IS200JPDMG1A IS200JPDMG1ADC stores 128 KB of configuration data in flash memory. It also holds no battery for energy storage. Instead, this board uses onboard capacitors for short-term hold-up during power fluctuations.

Design and Integration

This GE IS200JPDMG1A IS200JPDMG1ADC distributes control power to multiple Mark VI modules. The 64-pin backplane connector carries power and data signals simultaneously. Meanwhile, the two ribbon headers link to remote termination boards. Therefore, the board eliminates complex point-to-point wiring inside cabinets. The capacitor-based hold-up maintains operation during 20 ms power sags. Consequently, you achieve reliable performance without battery maintenance. For a different power component, see the RMS-TSG-TZ-C on Alibaba. However, that static trip relay focuses on protection rather than power distribution.

Reliability and Operation

The GE IS200JPDMG1A IS200JPDMG1ADC operates from -30°C to +65°C. Its flash memory retains configuration without any external battery. Therefore, you avoid periodic memory backup tasks. The board meets GE’s contact resistance standards below 10 mΩ. Each unit undergoes 48-hour continuous power cycling before shipping.
