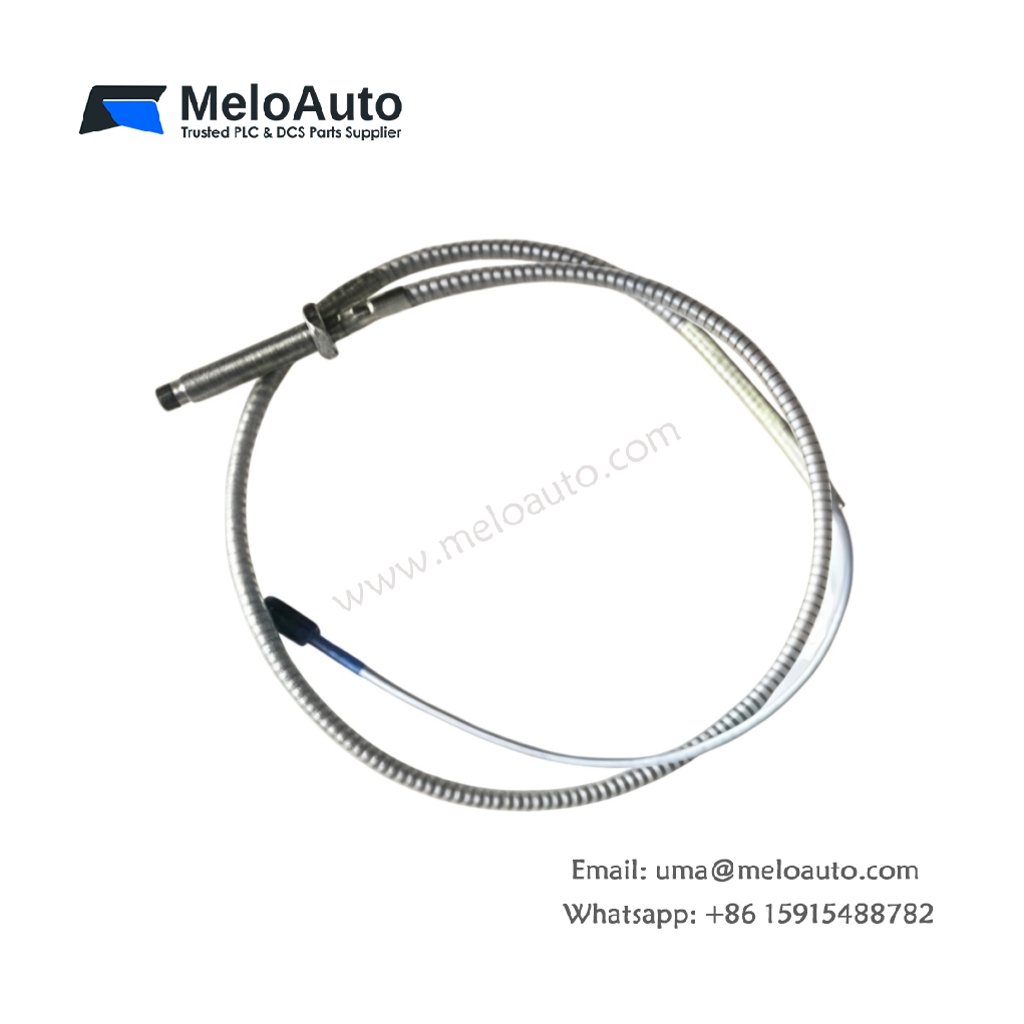

This sensor delivers precise shaft vibration and position measurements for turbines and compressors. It integrates smoothly into the Bently Nevada 3300 XL 8 mm monitoring platform. Engineers choose this probe for critical asset protection in power generation and hydrocarbon processing. Its eddy-current technology enables non-contact sensing with outstanding linearity and signal fidelity.
Electrical Performance and Output Characteristics
The Bently Nevada 330103-00-05-10-02-05 provides a sensitivity of 7.87 mV/µm across its linear measurement band. Its nominal gap voltage stabilizes at -9.0 Vdc under normal operating conditions. The probe supports a frequency response extending from DC to 10 kHz. This wide bandwidth captures both slow shaft movements and rapid transient vibrations. Additionally, the integrated EMI shielding minimizes electrical interference from variable-frequency drives and adjacent machinery.
Mechanical Design and Installation Features
The probe housing employs a 3/8-24 UNF-2A thread for straightforward and secure mounting. Its total length reaches 51.8 mm, while the active tip diameter measures 8.2 mm. This model includes a 7.6-meter extension cable with a durable coaxial connector. This cable length simplifies routing through complex equipment layouts. Furthermore, the single internal coil assembly generates a stable high-frequency field for consistent gap voltage readings.
Key Technical Specifications
The table below summarizes the critical parameters for the Bently Nevada 330103-00-05-10-02-05.
| Parameter | Specification |
|---|---|
| Model Number | 330103-00-05-10-02-05 |
| Manufacturer | Bently Nevada |
| Product Category | Eddy Current Proximity Probe |
| Housing Thread | 3/8-24 UNF-2A |
| Total Length | 51.8 mm |
| Tip Diameter | 8.2 mm |
| Linear Range | 0.25 mm to 2.03 mm |
| Sensitivity | 7.87 mV/µm |
| Temperature Range | -35°C to +120°C |
| Extension Cable | 7.6 m with coaxial connector |
| Ingress Protection | IP67 rated |
| Weight | Approx. 230 grams |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Compatible System | 3300 XL 8 mm Monitoring System |
| Output Type | Negative DC voltage signal |
| Coil Configuration | Single internal coil assembly |
| EMI Protection | Integrated shielding layer |
| Humidity Tolerance | 100% condensing environment |
| Industry Standard | API 670 compliant |
| Target Compatibility | Ferrous and non-ferrous metals |
| Cable Termination | Standard coaxial connector with -05 suffix |
Environmental Durability and Service Life
Bently Nevada 330103-00-05-10-02-05 resists oil, hydraulic fluid, and mild corrosive agents effectively. The PPS tip maintains its structural integrity under repeated thermal cycling conditions. All sealing components conform to IP67 standards for dust and temporary water immersion. Consequently, this probe delivers a service life exceeding 50,000 hours in demanding industrial environments. The rugged construction lowers replacement frequency and reduces overall maintenance expenditures.
Application Advantages and System Integration
This probe supplies reliable input for vibration monitoring and shaft positioning systems. Its output connects directly to 3300 XL rack-mounted monitors without additional interface modules. The detailed specifications allow accurate configuration for each specific rotor dynamics scenario. Therefore, plant engineers gain improved prediction of bearing wear and rotor imbalance conditions. The combination of precision and durability effectively supports long-term predictive maintenance strategies.
