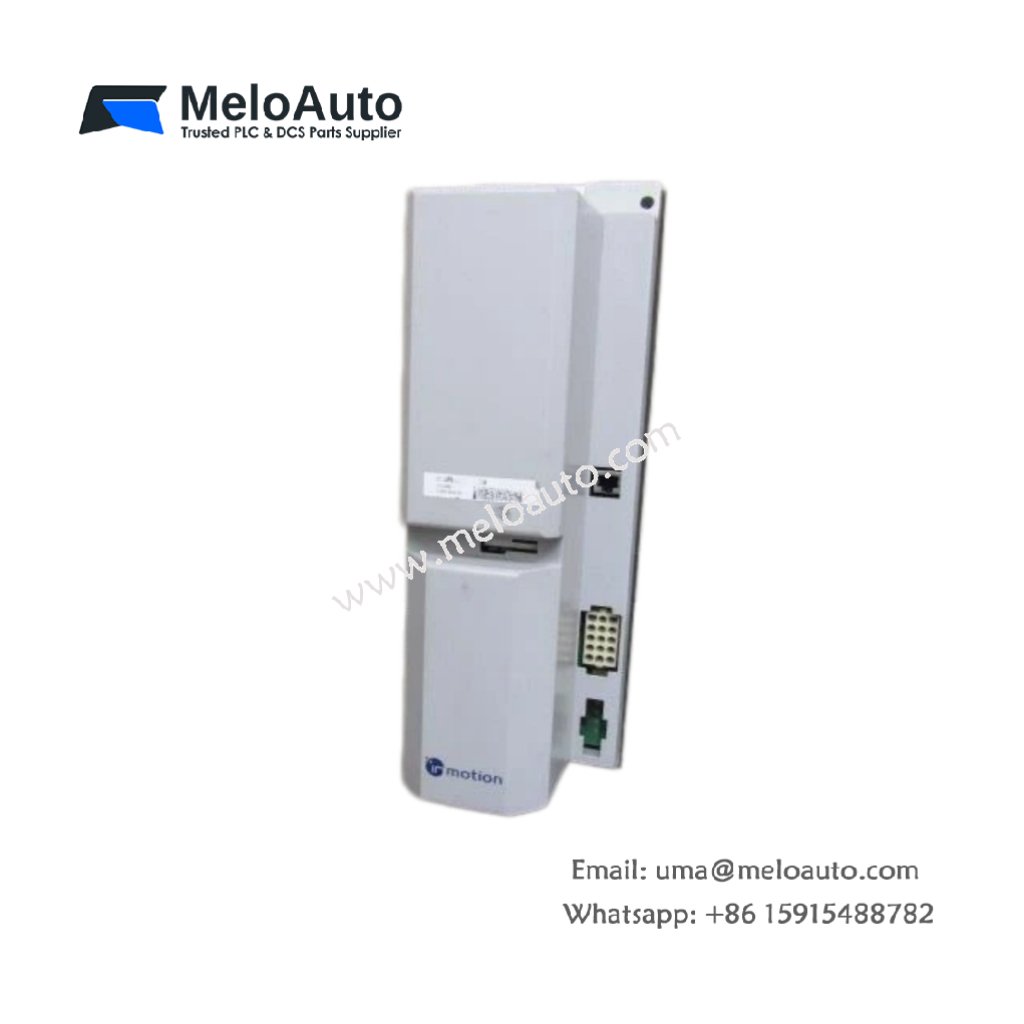

ABB 3HAB8101-3/12B Servo Drive Module | 12A

The 3HAB8101-3/12B controls AC servo motors for high-power motion applications. This drive converts 230V AC into regulated current for motor phases. It operates with high switching frequency for smooth torque delivery.

Key Technical Specifications

Parameter	Value
Input Voltage	230V AC ±15%, 50/60 Hz
Output Current	12 A continuous (24 A peak)
Output Power	650 W maximum
Switching Frequency	16 kHz
Control Modes	Position, velocity, torque
Feedback Interfaces	Resolver, encoder, Hall
Protection	Overcurrent, overvoltage, thermal
Drive Dimensions	26.0 cm x 17.0 cm x 9.0 cm
Weight	3.4 kg (7.50 lbs)
Component Count	212 discrete components
Energy Storage	2700 µF DC link capacitance
Operating Temperature	0°C to 50°C

Physical Dimensions and Component Layout

This drive measures 26.0 cm in length and 17.0 cm in width. Its total height reaches 9.0 cm including the heat sink. 3HAB8101-3/12B weighs 3.4 kg for robust panel mounting. You will find 212 discrete components on an eight-layer PCB.

Moreover, the drive integrates a 2700 µF DC link capacitor bank. This bank stores energy for short power interruptions. It also filters ripple from the rectified AC input.

Control Modes and Feedback

The drive supports position, velocity, and torque control modes. You can select the mode via software parameters. Resolver and encoder interfaces provide precise motor position feedback. Hall sensors also work for brushless DC motor commutation.

Protection Features and Diagnostics

Overcurrent protection shuts down the drive at 24 A peak. Overtemperature protection activates at 85°C heat sink temperature. LED indicators show power, fault, and enable status. A fault relay output signals errors to the PLC.

Typical Application Scenarios

You can deploy 3HAB8101-3/12B in robotics, pick-and-place, and packaging machines. It also works well for CNC axes and automated assembly lines. This drive controls torque, speed, and position with high precision. Its 12A rating suits larger servo motors.
