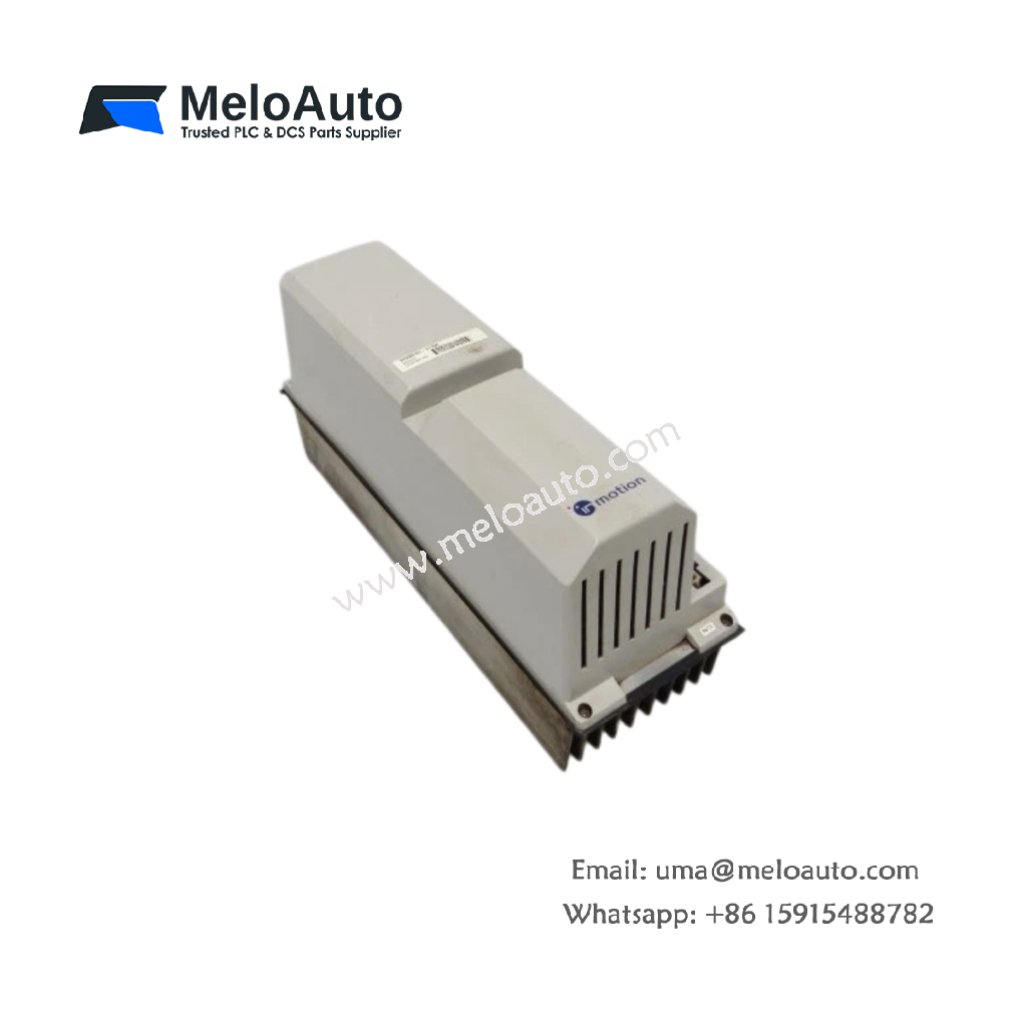

ABB 3HAB8101-3/10A Servo Drive

The 3HAB8101-3/10A controls AC servo motors for precision motion applications. This drive converts 230V AC into regulated current for motor phases. It operates with high switching frequency for smooth torque delivery.

Key Technical Specifications

Physical Dimensions and Component Layout

This drive measures 24.0 cm in length and 16.0 cm in width. Its total height reaches 8.5 cm including the heat sink. 3HAB8101-3/10A weighs 3.1 kg for robust panel mounting. You will find 196 discrete components on a six-layer PCB.

Moreover, the drive integrates a 2200 µF DC link capacitor bank. This bank stores energy for short power interruptions. It also filters ripple from the rectified AC input.

Control Modes and Feedback

The drive supports position, velocity, and torque control modes. You can select the mode via software parameters. Resolver and encoder interfaces provide precise motor position feedback. Hall sensors also work for brushless DC motor commutation.

Protection Features and Diagnostics

Overcurrent protection shuts down the drive at 20 A peak. Overtemperature protection activates at 85°C heat sink temperature. LED indicators show power, fault, and enable status. A fault relay output signals errors to the PLC.

Typical Application Scenarios

You can deploy 3HAB8101-3/10A in robotics, pick-and-place, and packaging machines. It also works well for CNC axes and automated assembly lines. This drive controls torque, speed, and position with high precision. Its 10A rating suits medium-sized servo motors.
