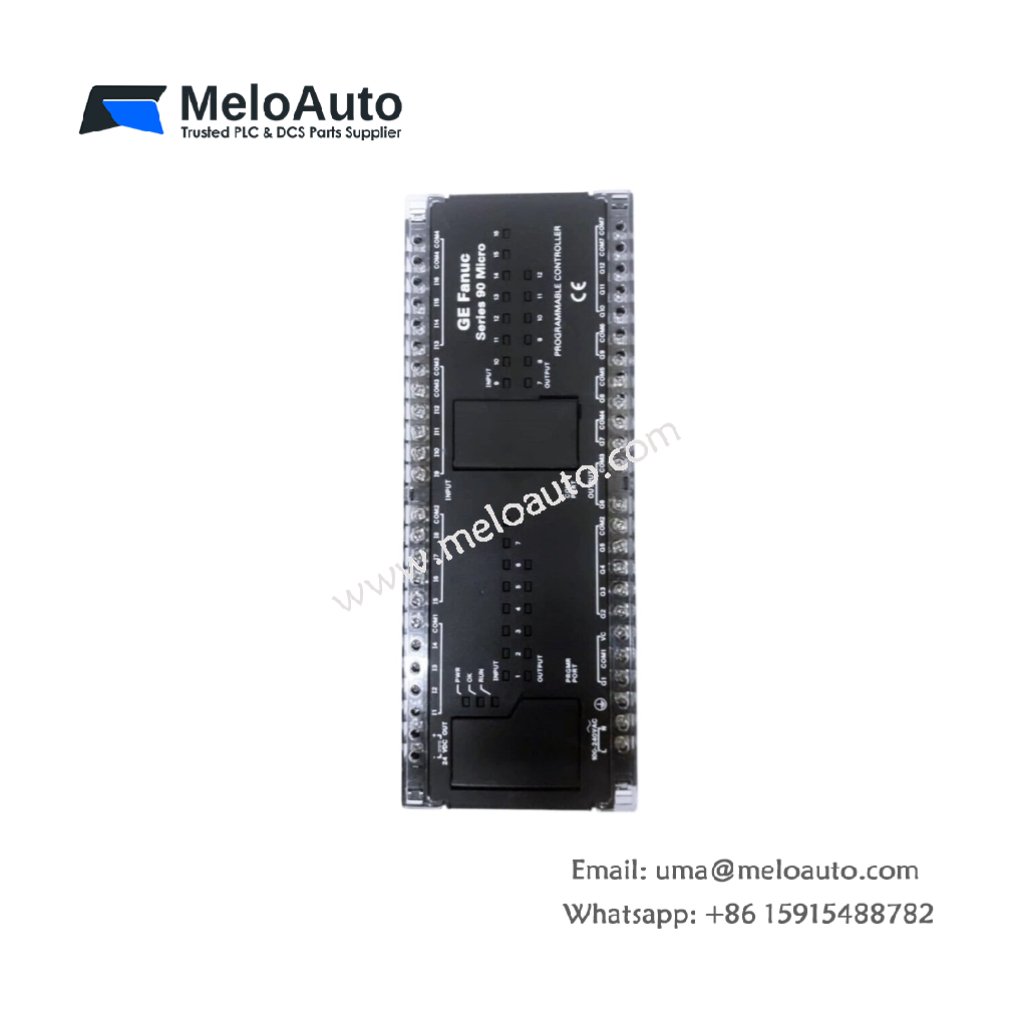

GE IC693UDR005PP1 MICRO I/O MODULE

This compact micro I/O module combines logic processing and discrete I/O in one unit. The GE IC693UDR005PP1 serves as a self-contained controller for small automation applications. Five input channels accept 24V DC signals from sensors and switches. Consequently, machine builders can control conveyors, packaging lines, and small assembly cells efficiently.

Technical Specifications of the MICRO I/O MODULE

The GE IC693UDR005PP1 measures 90 mm in width and 110 mm in height. Its depth reaches 70 mm for DIN rail or panel mounting. The unit weighs approximately 0.45 kg including all internal power supply components. A front panel LED array shows input status, output status, and processor run condition. The top side features removable screw terminal blocks for all field wiring connections. This design stores minimal energy in small filtering capacitors only. Therefore, the module contains no batteries or large energy storage elements.

Parameter	Specification
Brand	GE Fanuc
Full Model	IC693UDR005PP1
Category	MICRO I/O MODULE (Integrated PLC)
Dimensions (W x H x D)	90 mm x 110 mm x 70 mm
Weight	Approximately 0.45 kg
Discrete Inputs	5 channels, 24V DC
Discrete Outputs	4 channels, relay, 2A each
User Program Memory	4 KB (ladder logic)
Register Memory	0.5 KB
Scan Time	2 ms per 1K logic
Terminal Type	Removable screw blocks
Energy Storage	Minimal (filtering only)
Supply Voltage	24V DC external

Functional Features and Integrated Control

The GE IC693UDR005PP1 executes ladder logic programs without any additional CPU module. You can program the unit using standard Series 90-30 software tools. The four relay outputs switch 2A at 24V DC or 250V AC loads. An built-in 24V DC power supply powers sensors directly from the module. Consequently, this micro I/O module eliminates the need for separate power supplies and racks.

Installation and System Integration

You must mount this micro I/O module on standard 35mm DIN rail or a flat panel. The GE IC693UDR005PP1 requires four wire connections for 24V DC power input. A removable programming port accepts a standard RS-232 cable for PC connection. The module also supports simple peer-to-peer communication with other units. Always verify sensor wiring before applying power to the system.

Maintenance and Operational Benefits

Because the GE IC693UDR005PP1 stores user programs in Flash memory, it needs no battery backup. Technicians can remove power without losing any ladder logic or configuration data. The module retains all program, register values, and parameters indefinitely after programming. Consequently, this compact controller offers reliable service for standalone machine control applications.
