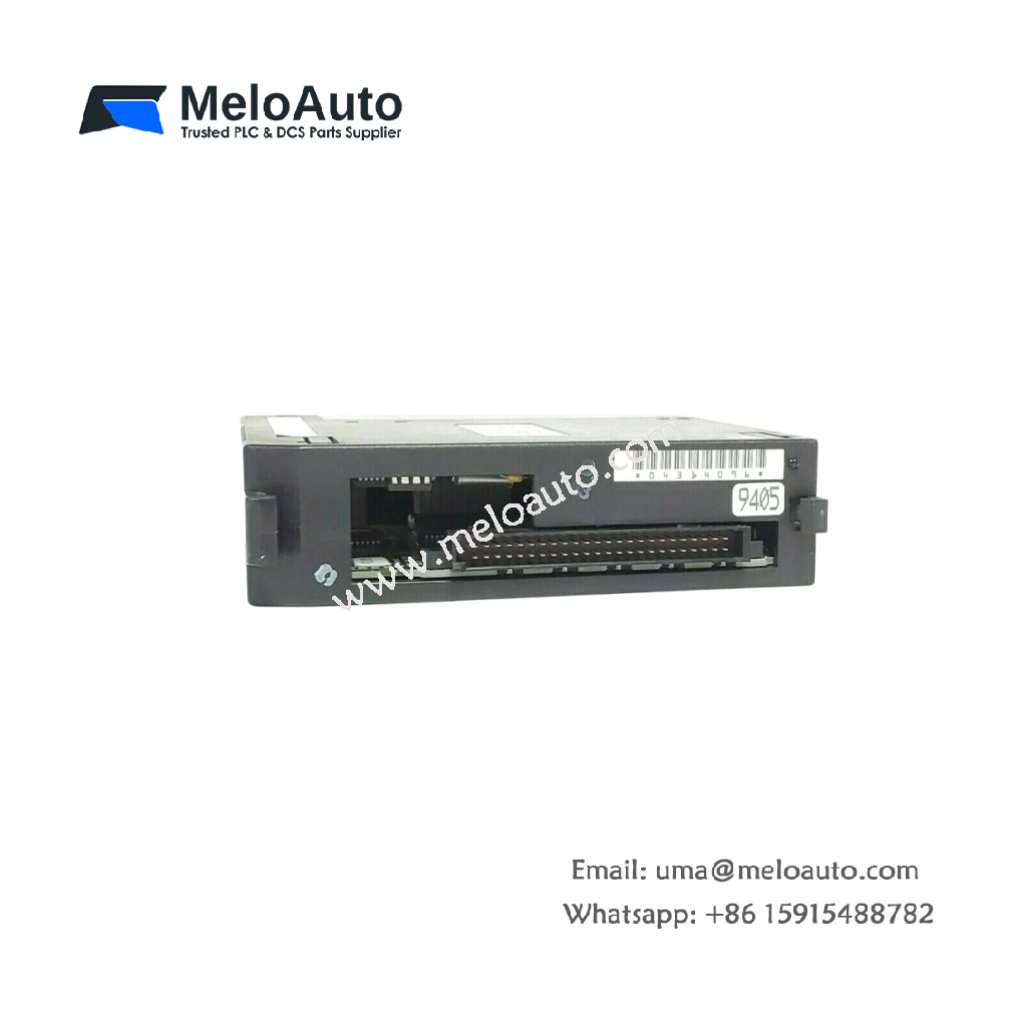

GE IC693CPU331M CPU Module

This central processing unit module provides powerful logic control for Series 90-30 PLC systems. The GE IC693CPU331M executes user programs with fast deterministic scan times. A 32-bit microprocessor handles all mathematical, timing, and communication operations efficiently. Consequently, automation engineers can rely on this module for demanding machine control applications.

Technical Specifications of the CPU Module

The GE IC693CPU331M fits standard Series 90-30 PLC racks in a single slot. Its height measures 110 mm, and its depth reaches 130 mm. The module weighs approximately 0.36 kg including all internal circuitry. A front panel LED array shows run status, fault conditions, and communication activity. The rear side uses a 48-pin backplane connector for power and I/O bus signals. This design stores minimal energy in small filtering capacitors only. Therefore, the module contains no batteries for program retention.

Parameter	Specification
Brand	GE Fanuc
Full Model	IC693CPU331M
Category	CPU Module (Central Processing Unit)
Dimensions (H x D)	110 mm x 130 mm
Weight	Approximately 0.36 kg
Processor	32-bit microprocessor
User Program Memory	80 KB (ladder logic)
Register Memory	4 KB
Discrete I/O Capacity	2048 points
Analog I/O Capacity	256 points
Timers/Counters	1024 each
Backplane Connector	48-pin
Energy Storage	Minimal (filtering only)
Supply Voltage	5V DC from backplane

Functional Features and Processing Power

The GE IC693CPU331M executes logic at speeds up to 0.6 ms per 1K of ladder instructions. You can store user programs and configuration data in onboard Flash memory. The module supports up to 1024 timers and 1024 counters for complex sequencing. A built-in RS-485 serial port provides programming and HMI connectivity without extra cards. Consequently, the CPU handles larger automation applications with thousands of I/O points efficiently.

Installation and System Compatibility

You must install this CPU module into the first slot of a Series 90-30 rack. The GE IC693CPU331M requires a standard 5V DC supply from the backplane. A front panel run/stop switch allows manual mode changes without programming software. The module automatically scans all configured I/O modules in the rack across multiple bases. Always verify firmware version before replacing an existing CPU unit.

Maintenance and Operational Benefits

Because the GE IC693CPU331M uses Flash memory instead of battery-backed RAM, it needs no battery changes. Technicians can safely remove power without losing the user program. The module retains all logic, register data, and configuration parameters indefinitely after programming. Consequently, maintenance becomes simpler and more reliable than older battery-dependent designs.
