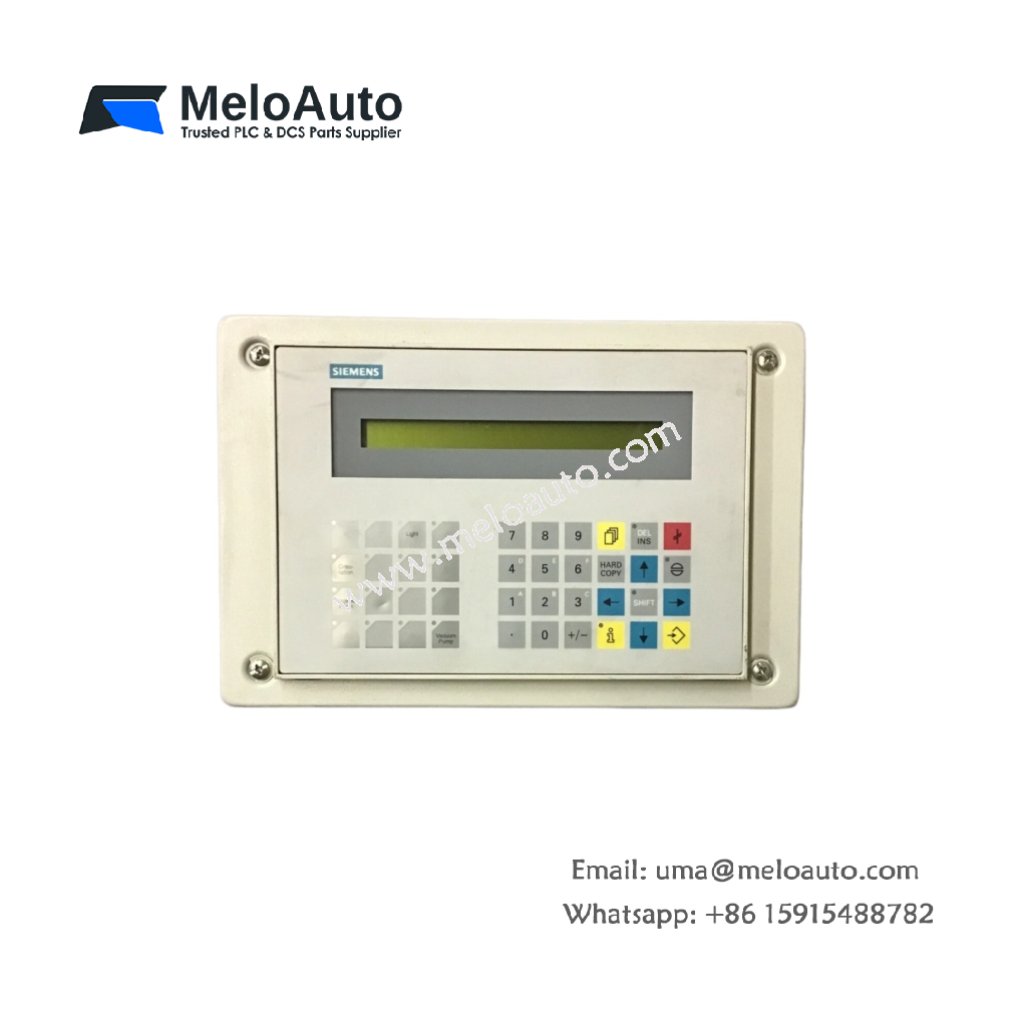

Siemens 6AV3515-1EB00 | SIMATIC HMI Operator Panel

Technical Overview of the Operator Panel

The Siemens 6AV3515-1EB00 offers a compact operator interface for basic SIMATIC HMI applications. This panel displays machine data and system status on its graphical screen. It connects directly to SIMATIC controllers for efficient data exchange. The design suits simple visualization tasks in small automation cells.

Key Technical Specifications

This section details the core parameters for the Siemens 6AV3515-1EB00 operator panel. Use these figures to confirm compatibility with your control system.

Parameter	Specification
Part Number	6AV3515-1EB00
Type	Operator Panel
Product Family	SIMATIC HMI
Display Type	TFT Color LCD
Display Size	Approx. 5.7 inches
Resolution	320 x 240 Pixels
Input Method	Membrane function keys
Communication	RS232 / RS485, MPI
Operating Voltage	24V DC
Dimensions (W x H x D)	Approx. 210 x 160 x 60 mm
Weight	Approx. 1.3 kg
Compatibility	SIMATIC S7 and S5 systems

Application and System Integration

This operator panel mounts on control desks or machinery enclosures. It displays alarms, process values, and production counters clearly. The Siemens 6AV3515-1EB00 allows operators to input parameters through its function keys. Its MPI interface enables direct connection to multiple PLCs. Consequently, users can monitor several machines from a single panel.

Reliability and Performance Features

The TFT display ensures good visibility across various lighting conditions. Its robust membrane keypad resists dust and moisture ingress effectively. The panel operates reliably across a wide temperature range. Engineers choose the Siemens 6AV3515-1EB00 for straightforward machine-level visualization.
