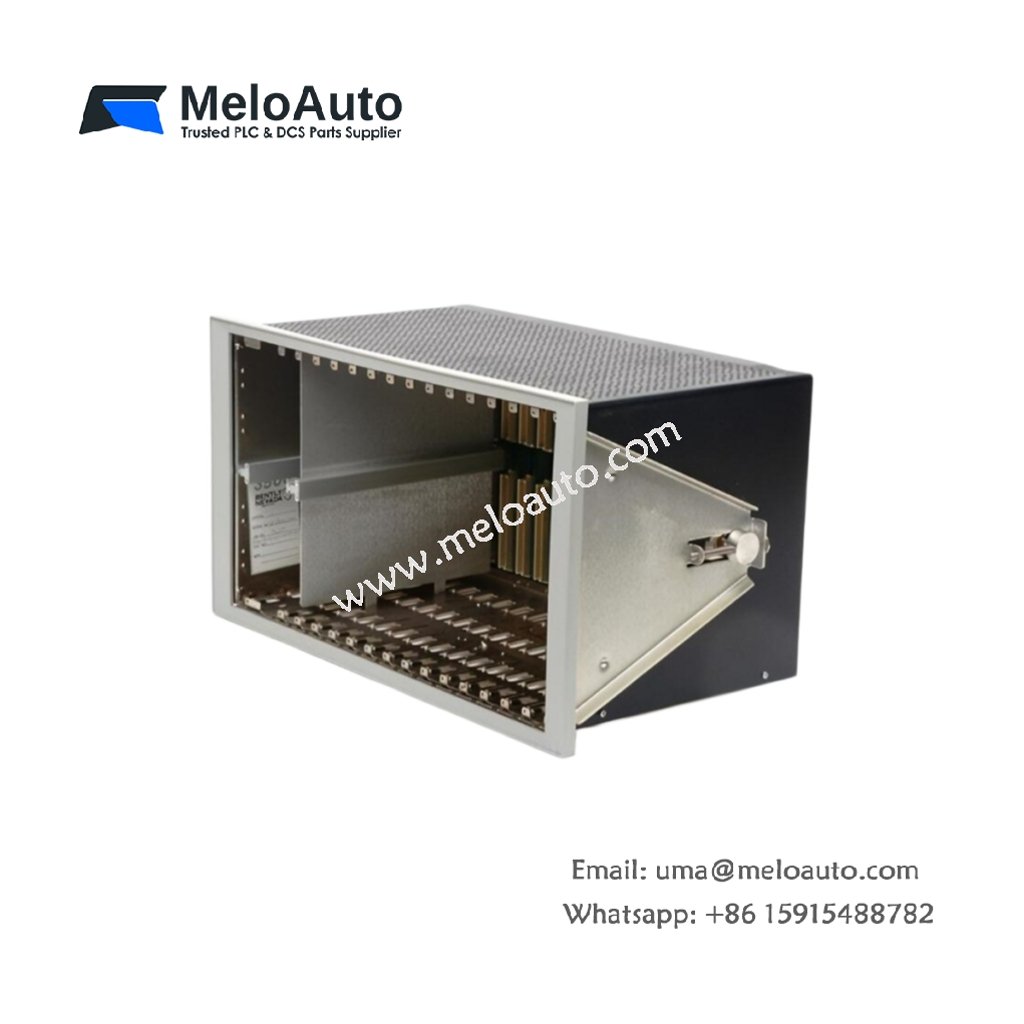

Bently Nevada 3500/05-01-01-05-00-01 System Rack

This system rack provides a modular chassis for Bently Nevada 3500 monitoring components. It integrates seamlessly into the Bently Nevada 3500 monitoring system platform. The unit accommodates various monitoring modules for comprehensive machine protection. Users can build customized monitoring solutions for turbines, compressors, and generators.

Mechanical Design and Slot Configuration

This rack features a rugged chassis design for demanding industrial environments. It offers 15 slots for monitoring modules and power supplies. The unit includes dedicated slots for the rack interface module and power supply modules. Users can populate remaining slots with monitoring I/O modules as needed. This configuration supports flexible system scalability and module arrangement.

Backplane Bus and Data Communication

The 3500/05-01-01-05-00-01 features a high-speed backplane for module communication. It provides deterministic data exchange between all connected monitoring modules. The backplane supports both analog and digital signal transmission effectively. Users can achieve synchronized data acquisition across multiple modules. This architecture ensures consistent and reliable system performance.

Power Distribution and System Integration

This rack provides integrated power distribution to all connected modules. It supports 24 V DC input from external power sources. The unit distributes power through the backplane to each module slot. Users can install dual power supplies for redundancy in critical applications. This design ensures continuous operation even if one power supply fails.

Module Installation and Maintenance

The rack features easy module installation and removal without special tools. Users slide modules into the designated slots until they lock securely. The unit includes card guides for proper module alignment during installation. Each slot provides direct backplane connectivity for seamless system integration. Furthermore, technicians can replace modules while the system remains operational. This hot-swap capability minimizes downtime for maintenance activities.

Environmental Durability and EMI Protection

The chassis meets stringent environmental standards for industrial applications. It operates reliably between -10 °C and 65 °C ambient temperature. The rack also includes electromagnetic interference (EMI) shielding for stable operation. This shielding prevents external noise from affecting sensitive monitoring signals. Consequently, users achieve accurate and interference-free data acquisition.

System Scalability and Application Flexibility

Users can configure this rack to suit various monitoring applications and budgets. The 15-slot design supports a wide range of monitoring modules. Users can expand the system by adding more racks as machine requirements grow. This scalability ensures the system adapts to evolving plant needs. The modular design provides a cost-effective solution for machine protection.
