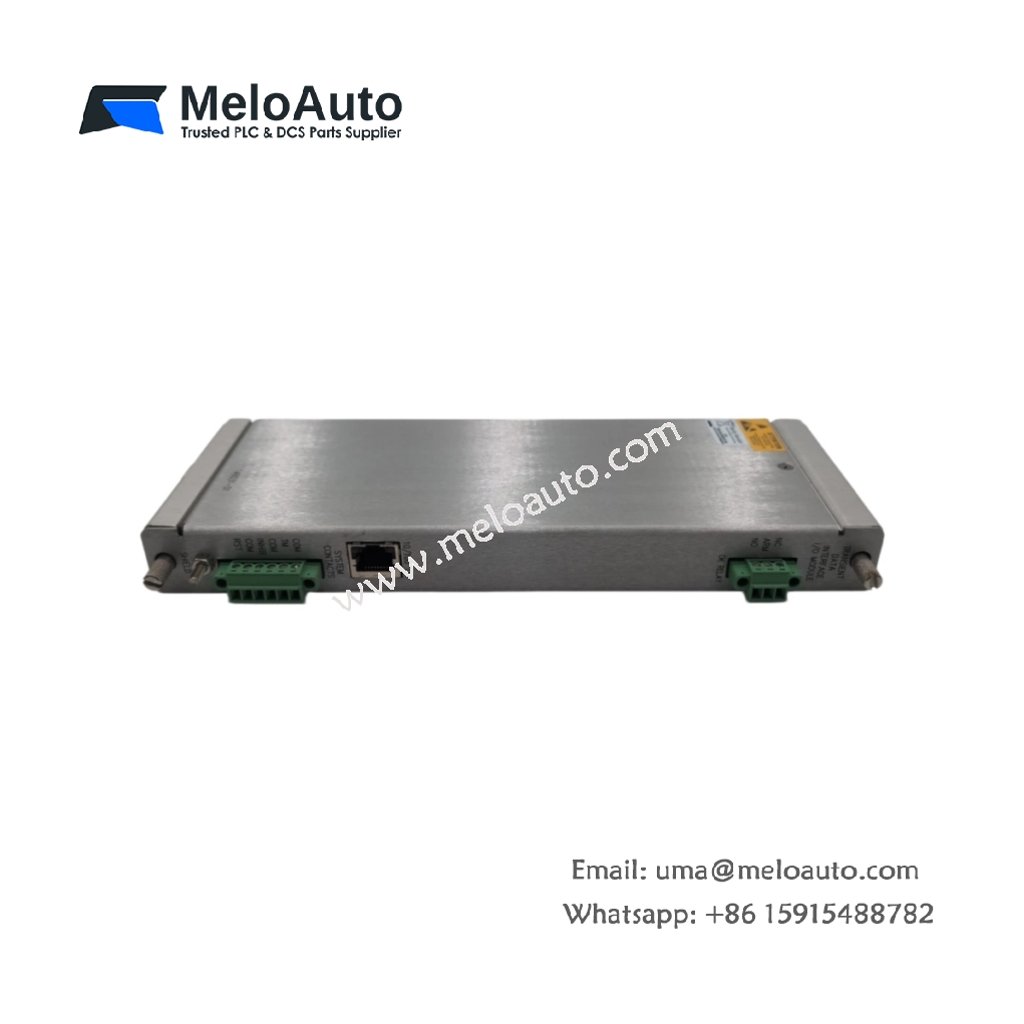

Bently Nevada 3500/22M 146031-01 TDI – Transient Data Interface for 3500 Monitoring Systems

This transient data interface module captures and stores critical machine event data. It integrates seamlessly into the Bently Nevada 3500 monitoring system platform. The unit provides high-speed data acquisition for transient analysis and diagnostics. Users can record startup, shutdown, and trip events with exceptional detail.

Data Acquisition and Transient Capture Capabilities

This module captures high-resolution transient data during critical machine events. It supports sampling rates up to 65,536 samples per revolution for detailed analysis. The unit records both steady-state and transient machine behavior effectively. Users can trigger data capture based on speed, time, or alarm conditions. This capability enables comprehensive vibration and position analysis for machine diagnostics.

Signal Processing and Data Storage

The 3500/22M 146031-01 processes transient signals with exceptional precision and speed. It stores captured data in internal 8 MB buffer memory for immediate analysis. The module provides both time-domain and frequency-domain analysis capabilities. Users can examine waveforms, spectra, and orbit plots through diagnostic software. This comprehensive data suite supports accurate fault diagnosis and predictive maintenance. Consequently, engineers make informed decisions about machine operation and maintenance.

Trigger Modes and Event Recording

This module supports multiple trigger modes for flexible transient capture. Users configure speed-based triggers for coast-down and run-up analysis. Time-based triggers enable regular data capture for long-term trending. Alarm-based triggers record data when measured parameters exceed setpoints. Manual triggers allow engineers to capture data on demand. This flexibility suits various monitoring requirements across different machine types.

System Integration and Communication

This TDI module communicates through the 3500 backplane bus and Ethernet interface. It exchanges data with the rack interface module for system-wide coordination. Users configure parameters through the proprietary 3500 configuration software. The module supports Modbus communication for DCS integration. Additionally, it provides raw data access for third-party analysis software. This connectivity enables seamless integration into existing plant monitoring systems.

Data Analysis and Diagnostic Support

The module provides comprehensive data analysis tools for machine diagnostics. Users can perform FFT analysis to identify vibration frequencies and harmonics. The module also supports transient analysis for startup and shutdown events. Engineers can compare current data with historical baselines for trend analysis. This functionality enables early detection of developing faults. Consequently, maintenance teams schedule repairs before catastrophic failure occurs.

Power Consumption and Environmental Durability

The module draws 400 mA at 24 V DC from the 3500 rack power supply. Power dissipation remains below 6 W under normal operating conditions. The unit operates reliably between -10 °C and 65 °C ambient temperature. Humidity tolerance spans 0% to 90% without condensation issues. The module carries an IP20 rating for protection against solid objects. This robust design suits power generation, oil and gas, and heavy industrial environments.
