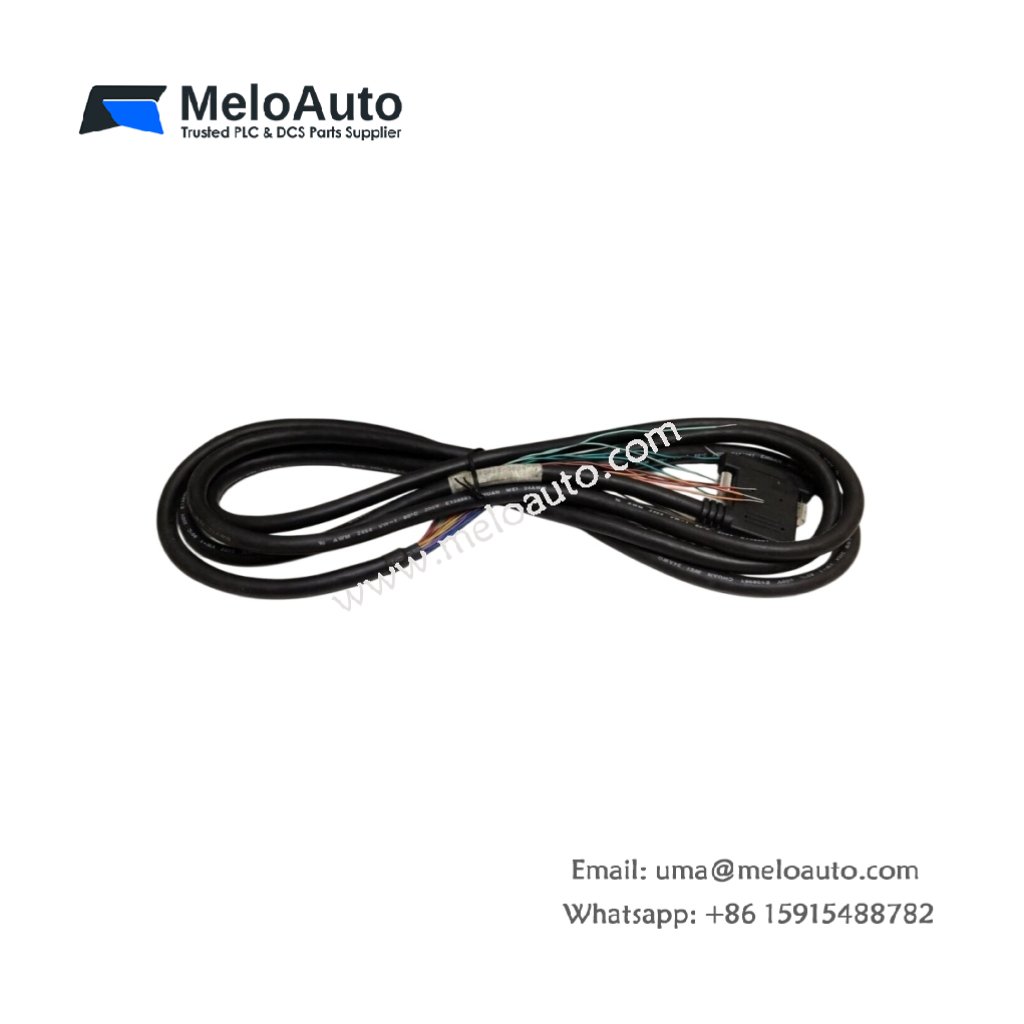

GE IC693CBL328: Terminal Block Connection Cable

This connection cable links I/O modules to external termination assemblies. It transmits signals between field devices and the PLC system. The GE IC693CBL328 suits GE Series 90-30 automation platforms. You can use this cable for organized and reliable field wiring.

Technical Parameters Overview

Physical Construction and Cable Design

Furthermore, the GE IC693CBL328 uses 20 individually color-coded conductors. Each conductor uses 22 AWG stranded copper wire. This stranding provides excellent flexibility for routing inside control panels. A gray PVC jacket surrounds all 20 conductors. That jacket resists oil, moisture, and mild chemicals. Therefore, the cable remains durable in factory environments.

Connector Interfaces and Termination Details

At one end, you will find a 20-pin female ribbon connector. This connector plugs directly into GE Series 90-30 I/O modules. At the other end, a 20-position screw terminal block awaits field wiring. Each terminal accepts one 16-22 AWG solid or stranded wire. Accordingly, you can terminate sensors and actuators without special tools. The terminal block includes numbered positions for easy identification.

Signal Integrity and Electrical Performance

Moreover, this cable maintains signal integrity over its full 1.0 meter length. The parallel conductor arrangement minimizes capacitive coupling between adjacent wires. Each pin carries up to 1.0 ampere of continuous current. The GE IC693CBL328 supports both digital and analog signals. For example, you can connect 24 VDC inputs or 4-20 mA transmitters. Consequently, this single cable handles mixed signal types reliably.

Application and System Integration

You typically use this cable with high-density I/O modules. The GE IC693CBL328 replaces point-to-point wiring from modules to devices. This approach reduces installation time significantly. One cable organizes 20 field connections into a neat assembly. Therefore, control panels look cleaner and troubleshooting becomes faster. Maintenance staff appreciate the numbered terminal positions.

Installation Guidelines and Handling Tips

When installing this cable, avoid tight bends below a 50 mm radius. Sharp bends may damage internal conductors permanently. Secure the cable using plastic zip ties every 300 mm. Leave some slack near both connector ends for strain relief. Always disconnect power before attaching or removing the ribbon connector. The GE IC693CBL328 has no energy storage components, so it contains no hazardous voltage after disconnection.
