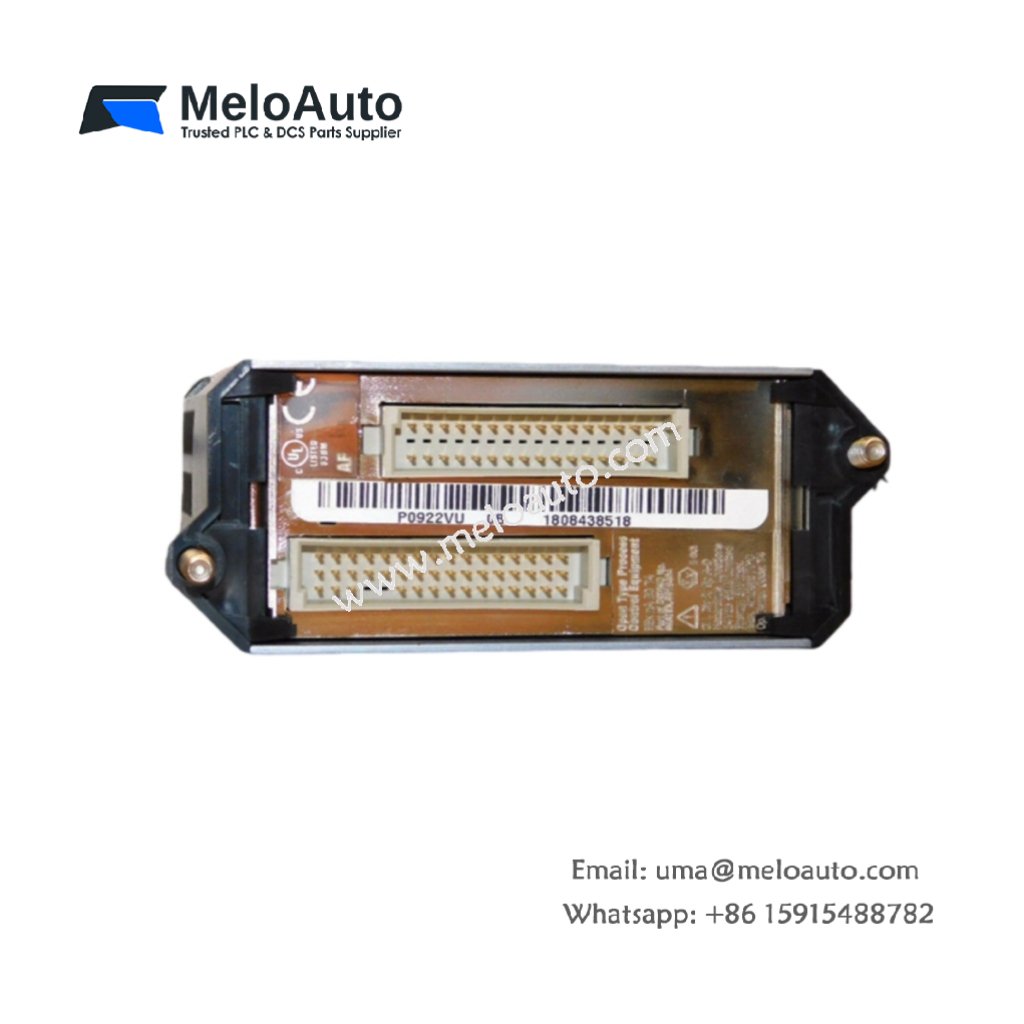

Foxboro FBM215 P0922VU: HART Communication Output Module

Overview

The Foxboro FBM215 P0922VU is a reliable and robust HART Communication Output Module designed to provide eight channel-isolated outputs. This module offers excellent flexibility by supporting both standard 4 to 20 mA analog output signals and HART communication signals, making it ideal for various industrial applications. It ensures seamless communication between field devices and control systems, offering high accuracy and galvanic isolation for each output channel.

Key Features

• Eight Channel-Isolated Outputs: The Foxboro FBM215 P0922VU provides eight independent output channels, ensuring reliable signal transmission.
• Supports HART Communication: It supports HART devices with Frequency Shift Keying (FSK) signals superimposed on a 4 to 20 mA analog output.
• Bi-Directional Communication: A dedicated FSK modem for each channel enables bi-directional communication with HART field devices.
• Galvanic Isolation: Each output channel is galvanically isolated, preventing interference and ensuring safe operation across all channels.
• Rugged Construction: The module is designed to withstand harsh industrial environments, meeting the requirements of Class G3 environments (as defined by ISA Standard S71.04).
• Easy Field Wiring: Termination Assemblies (TAs) simplify the connection of field wiring to the module, ensuring ease of installation and maintenance.

Functional Specifications

• HART Compliance: The module supports HART instruments compliant with Versions 5, 6, or 7 of the HART specifications.
• Communication Speed: Offers 2 messages per second with point-to-point, master/slave asynchronous, half-duplex communication at 1200 baud.
• Analog Accuracy: ±0.05% of span between 4 mA and 20 mA.
• Maximum Rate of Change: Capable of delivering 20 mA in 60 milliseconds, ensuring fast signal response.
• Isolated Power Supply: Each output channel has its own isolated power supply, enhancing system reliability.
• Galvanic Isolation: The channels are capable of withstanding up to 600 V AC potential applied for one minute between isolated channels and ground.

Fieldbus Communication

• The Foxboro FBM215 P0922VU interfaces with Fieldbus Communication Modules or Control Processors via redundant 2 Mbps module Fieldbus.
• This ensures continuous communication over the active path, even if one path fails, enhancing the system’s reliability and uptime.

Environmental Specifications

Applications

The Foxboro FBM215 P0922VU is ideal for use in various industries, including:

• Process Control: Provides reliable control for industrial systems that rely on precise analog and digital signals.
• Manufacturing Automation: Ensures efficient communication and control between field devices and automation systems.
• Energy and Power Generation: Facilitates seamless operation in power plants and energy production facilities by connecting various field devices to the control system.

Conclusion

The Foxboro FBM215 P0922VU is a high-performance and versatile HART Communication Output Module. It offers galvanic isolation, high-speed communication, and reliable field device power supply. Whether you are dealing with process control, automation, or energy generation, this module ensures efficient and reliable system performance in challenging environments.
