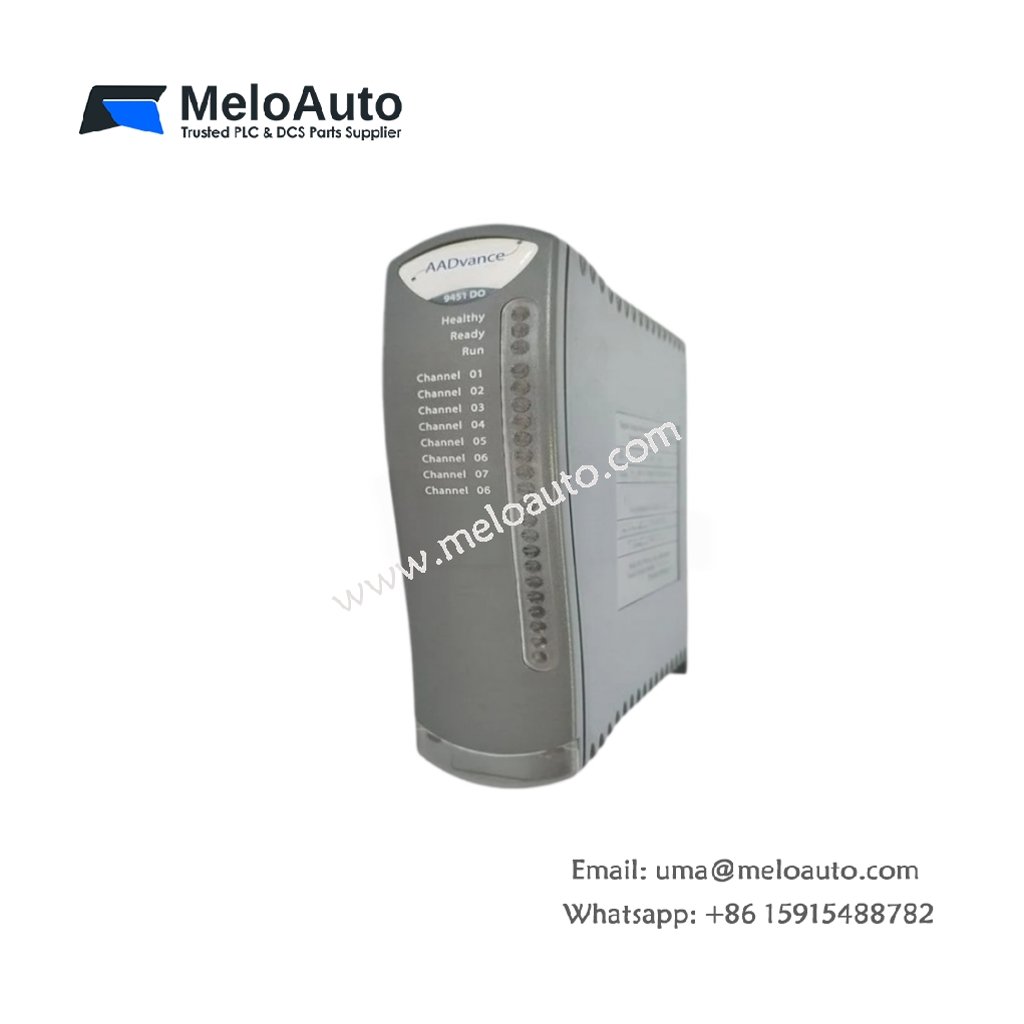

ICS Triplex T9902 Fast-Acting Replacement Output

The ICS Triplex T9902 Fast-Acting Replacement Output restores critical control loops with minimal delay. Maintenance teams rely on this unit when rapid field replacement becomes essential. Consequently, its design focuses on quick response and reliable switching performance.

Key Technical Specifications

The T9902 module provides detailed parameters for accurate system planning. Its compact dimensions suit space-constrained rack installations.

Parameter	Specification
Module Type	Fast-Acting Replacement Output
Dimensions	160 mm x 100 mm x 27 mm
Weight	0.36 kg
Output Channels	8 digital outputs
Output Voltage	24 VDC nominal
Output Current	1 A per channel
Connector Type	20-pin ribbon header
Isolation Voltage	500 VDC channel-to-bus
Power Consumption	5 W typical
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity Range	5% to 95% non-condensing
Component Count	44 active components
Energy Storage	180 µF capacitor bank
Mounting	Rack-mount chassis
Response Time	Less than 5 ms

Switching Speed and Output Drive

Each channel delivers 1 A at 24 VDC for fast-acting solenoids and relays. Moreover, the sub-5 ms response time supports time-critical shutdown sequences. Therefore, the T9902 excels in emergency trip and interlock applications.

Energy Storage and Isolation

The 180 µF capacitor bank supplies steady current during simultaneous channel activation. Additionally, 500 VDC optical isolation separates field wiring from sensitive control logic. Consequently, the module resists electrical noise and ground-loop interference.

Replacement and Maintenance

Technicians swap the T9902 directly into existing racks without rewiring or adapters. Furthermore, the 20-pin ribbon header enables quick disconnection during emergency maintenance. As a result, plant operators restore production faster after unexpected failures.
