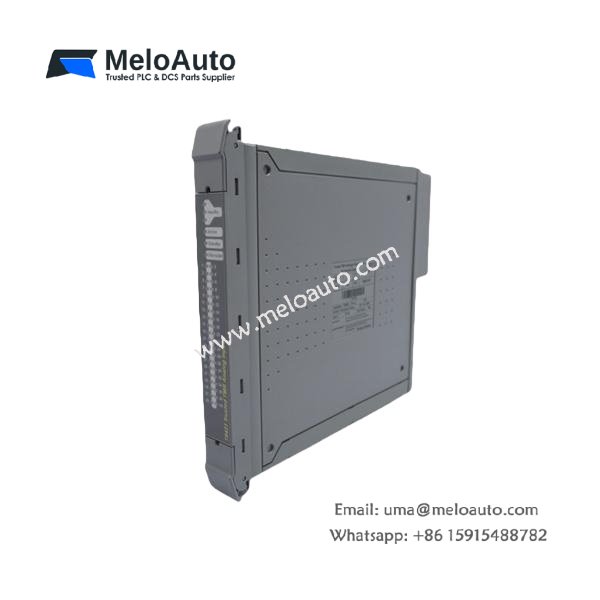

ICS TC30802 8-Channel Analog Output Module

The ICS TC30802 is an 8-channel analog output module designed for use with ICS Triplex programmable logic controllers (PLCs). This high-performance module is ideal for industrial applications that require precise control over output signals. The ICS TC30802 excels in machine control, process control, and motion control by providing flexible and reliable analog output capabilities.

Key Features:

8-Channel Analog Output: Provides eight independent channels for analog signal output, ideal for multiple control points.
Voltage or Current Output: Configurable for either voltage or current output, allowing flexibility in system integration.
Programmable Output Filters: Customize signal output with programmable filters to meet specific application needs.
Short-Circuit Protection: Protects the module from damage due to short circuits, ensuring reliable operation in harsh environments.
Overcurrent Protection: Safeguards the module by preventing damage from excessive current.
Ruggedized Design: Built to withstand industrial environments, ensuring long-lasting performance.
Easy Installation and Configuration: Quick to integrate with ICS Triplex PLCs, simplifying the setup process.

Applications:

The ICS TC30802 is perfect for applications in industrial environments that require precision and reliability. It is often used in:

Process Control: Regulating and monitoring production processes with accuracy.
Machine Control: Controlling complex machinery with precise analog signals.
Motion Control: Managing motors and actuators with fine-tuned analog outputs.

Technical Specifications

Specification	Value
Part Number	TC30802
Manufacturer	ICS
Product Type	8-Channel Analog Output Module
Output Channels	8
Output Type	Voltage or Current Output
Programmable Filters	Yes
Short-Circuit Protection	Yes
Overcurrent Protection	Yes
Power Supply	24V DC
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Weight	0.55 lbs (0.25 kg)
Dimensions	4.2 x 3.1 x 1.5 inches (106.7 x 78.7 x 38.1 mm)
Power Consumption	0.8W (typical)
Current Draw	400 mA at 5V DC
Isolation Voltage	1500V AC (channel-to-ground)

Installation and Integration

The ICS TC30802 is designed for easy integration with ICS Triplex PLC systems. With its flexible output options (voltage or current), it adapts to a wide range of industrial applications. The module also features programmable output filters to fine-tune output signals and protect against electrical faults with its short-circuit and overcurrent protections.

Its ruggedized design makes it ideal for harsh industrial environments. The module is easy to install and configure, ensuring minimal downtime during setup.
