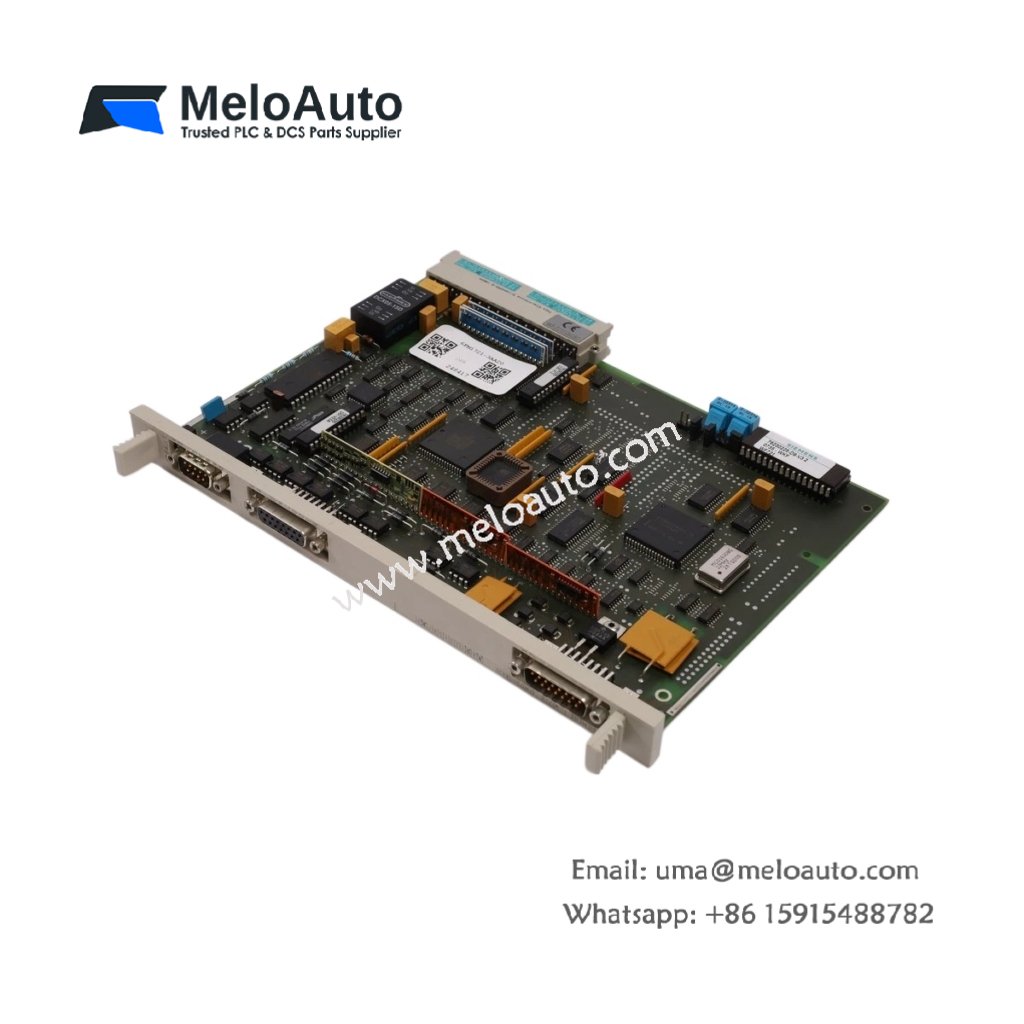

Siemens 6FM1721-3AA20 Positioning Module

High-Precision Axis Control for S5 Systems

The Siemens 6FM1721-3AA20 positioning module provides precise single-axis control for S5-135U and S5-155U PLC systems. This module drives stepper motors and servo axes with high accuracy and repeatability. Automated machinery and positioning systems rely on this module for exact motion control.

Technical Specifications and Control Features

This positioning module features a dedicated 16-bit processor for high-speed positioning calculations. The module supports incremental and absolute encoder feedback for precise position verification. A built-in 32 KB RAM stores position profiles and motion parameters. Furthermore, the module handles acceleration, deceleration, and positioning profiles automatically.

Parameter	Specification
Brand	Siemens
Model	6FM1721-3AA20
Product Type	Positioning Module / Single-Axis Controller
Processor	16-bit dedicated
Axes Controlled	1 (single-axis)
Motor Types	Stepper, servo
Encoder Support	Incremental, absolute
Profile Storage	32 KB RAM
Positioning Accuracy	±0.01 mm
Dimensions (W x H x D)	50 mm x 125 mm x 118 mm
Weight	0.45 kg
Power Consumption	5 V DC at 300 mA
Compatible CPUs	S5-135U, S5-155U
Operating Temperature	0°C to 55°C

Motion Control Capabilities

The Siemens 6FM1721-3AA20 executes point-to-point positioning, linear interpolation, and velocity control modes. Users can store up to 100 position profiles in the module’s internal memory. The module automatically handles acceleration and deceleration ramps for smooth motion. Additionally, the module supports both absolute and relative positioning commands.

Encoder Feedback and Position Verification

This positioning module supports incremental and absolute encoders for position feedback. The module monitors the actual position continuously and corrects any deviation automatically. Users can configure the encoder resolution and count direction through software. Furthermore, the module includes a position compare output for synchronized operations.

Physical Design and Installation

This positioning module features a 50 mm housing that fits standard S5-135U and S5-155U rack slots. The unit weighs approximately 0.45 kilograms, allowing straightforward installation. A 32-pin front connector provides access to motor and encoder terminals. The module uses screw-type terminals for secure field connections.

System Integration and Configuration

You can install this positioning module in any standard S5-135U or S5-155U rack slot. Users configure positioning parameters using the STEP 5 programming software. The module maps to the CPU’s I/O address space for straightforward data access. Moreover, the module supports both standalone and coordinated axis operation.

Diagnostic Features and Status Monitoring

Front-panel LEDs indicate power, axis status, and error conditions. The module stores diagnostic information about positioning errors and limit switch activations. A built-in self-test routine verifies hardware integrity during startup. Furthermore, the module includes a watchdog timer for fail-safe operation.
