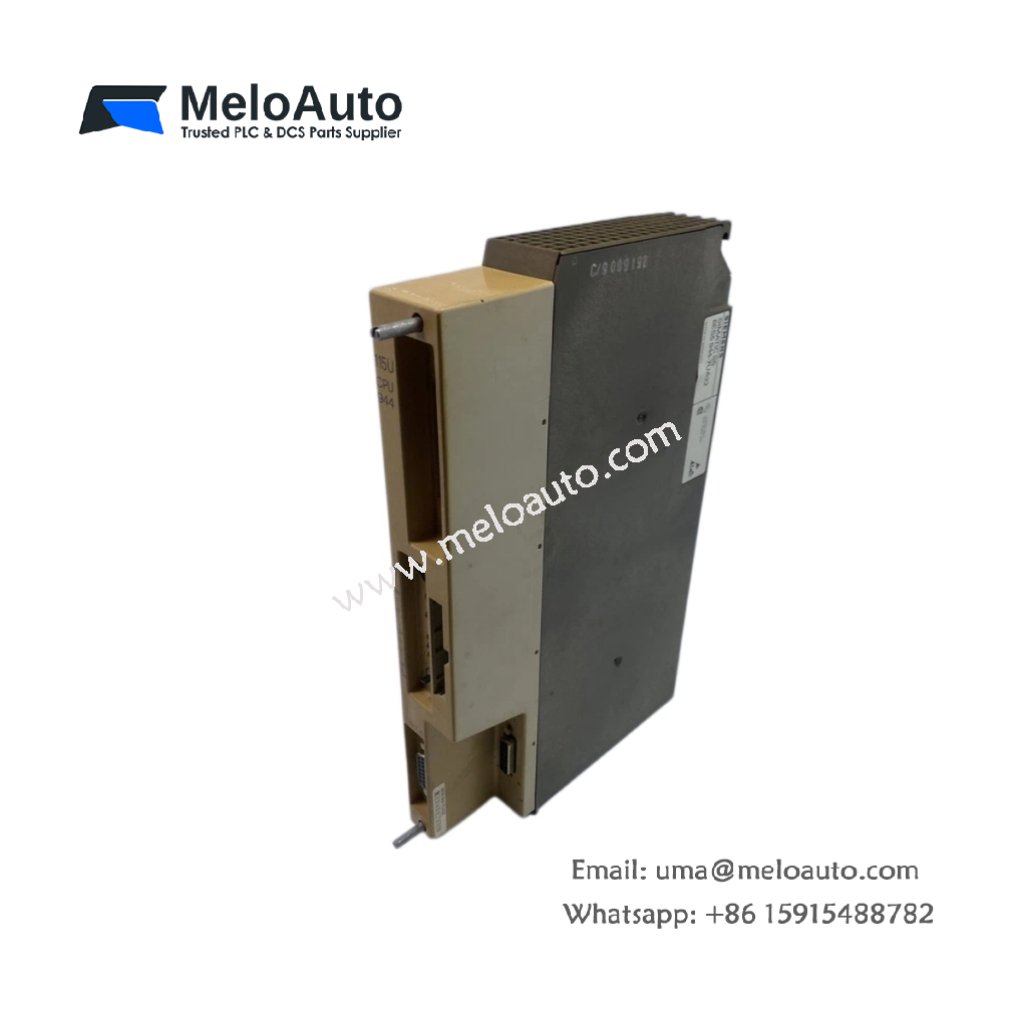

The 6ES5944-7UA22 serves as a high-performance central processing unit for the Siemens SIMATIC S5 programmable controller series. This CPU executes complex control algorithms with exceptional speed and deterministic timing. It handles large-scale I/O configurations and extensive program memory requirements efficiently. The module supports advanced programming features for sophisticated automation applications. Consequently, it provides reliable processing power for critical industrial processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Category | Central Processing Unit |
| Part Number | 6ES5944-7UA22 |
| Processor Type | 16-bit (high-performance) |
| Processing Speed | 0.8 µs per 1K binary operation |
| Program Memory | 64 KB RAM (battery-backed) |
| Data Memory | 16 KB RAM (battery-backed) |
| Memory Expansion | Up to 128 KB (via add-on modules) |
| Communication | S5 backplane bus |
| Programming Ports | RS-232, RS-485, 20 mA current loop |
| Power Supply | 5 VDC (via backplane) |
| Current Consumption | 2.5 A (typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Standard S5 single-width |
| Weight | 0.8 kg |
| Status Indicators | LEDs (power, run, stop, fault, memory) |
Processing Capabilities
The 6ES5944-7UA22 delivers superior processing speed for demanding control tasks. It supports up to 4,096 digital I/O points and 512 analog I/O channels. The CPU integrates advanced diagnostic functions for system monitoring. It also supports multi-tasking and interrupt processing for real-time applications. The module includes a watchdog timer with adjustable time-out settings. Moreover, it provides comprehensive error handling with detailed fault codes.
System Integration
This CPU integrates seamlessly with S5 I/O modules and expansion racks. It also supports communication with higher-level systems via serial ports. The 6ES5944-7UA22 offers exceptional performance for large-scale automation systems. Its memory capacity accommodates extensive program and data requirements.
