High-Performance Central Processing

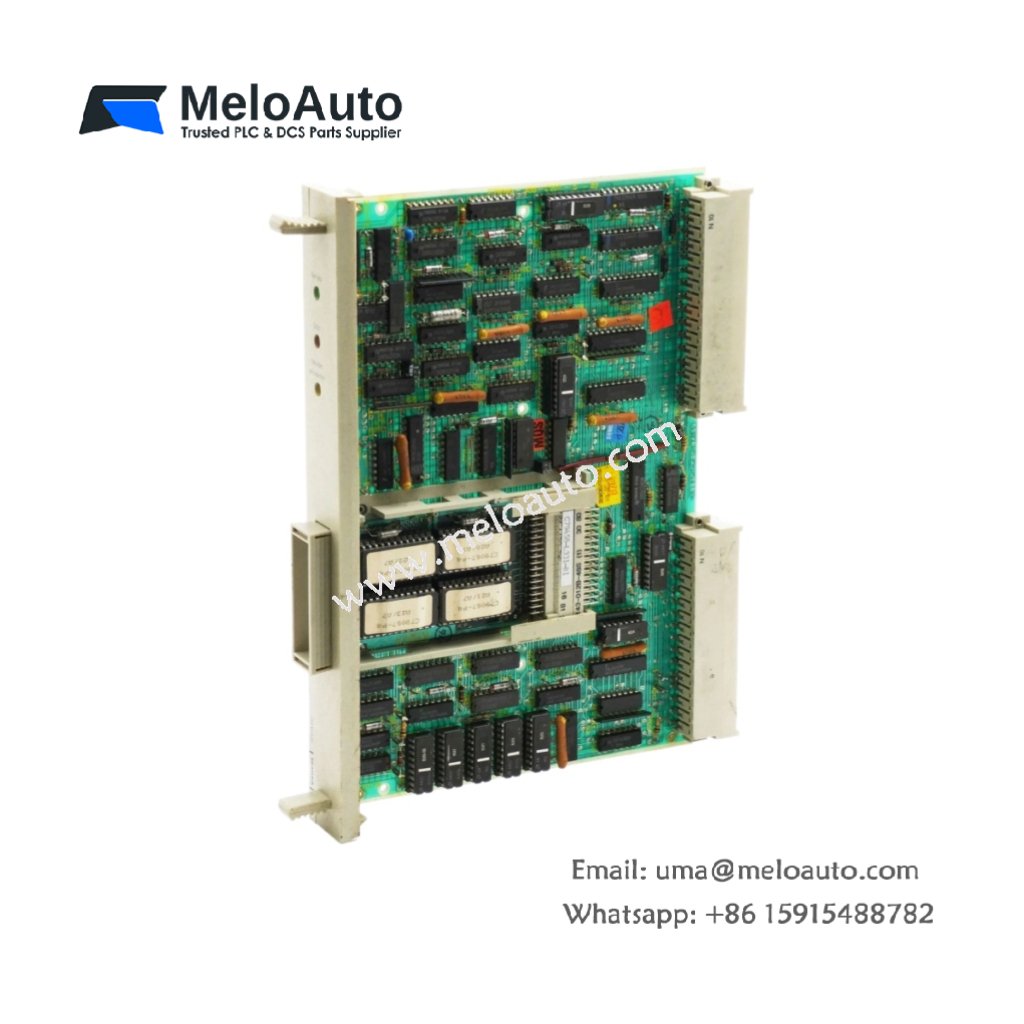

The 6ES5927-5BA13 serves as a powerful processor module for the Siemens SIMATIC S5 programmable controller series. This CPU handles complex control tasks with its high-speed processing architecture. It executes user programs quickly and deterministically for real-time applications. The module supports both ladder logic and structured text programming languages. Consequently, it provides robust performance for demanding industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Category | Processor Module |
| Part Number | 6ES5927-5BA13 |
| Processor Type | 16-bit (dedicated) |
| Processing Speed | 1.6 µs per 1K binary operation |
| Program Memory | 32 KB RAM (battery-backed) |
| Data Memory | 8 KB RAM (battery-backed) |
| Memory Expansion | Up to 64 KB (via add-on modules) |
| Communication | S5 backplane bus |
| Power Supply | 5 VDC (via backplane) |
| Current Consumption | 2.0 A (typical) |
| Programming Ports | RS-232, RS-485 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Standard S5 single-width |
| Weight | 0.7 kg |
| Status Indicators | LEDs (power, run, stop, fault) |
Processing Capabilities
The 6ES5927-5BA13 delivers fast execution speeds for efficient control performance. It supports up to 2,048 digital I/O points and 256 analog I/O channels. The module includes built-in self-diagnostics for system integrity monitoring. Additionally, it features a watchdog timer for fault detection and safe shutdown. The CPU also provides comprehensive error handling and recovery mechanisms. Users can program the module using the STEP 5 software environment.
Integration and Application
This CPU module integrates seamlessly with S5 I/O modules and expansion racks. It suits mid- to large-scale automation systems in various industries. The 6ES5927-5BA13 provides exceptional processing power for complex control tasks. Its extended memory capacity accommodates large program applications.
