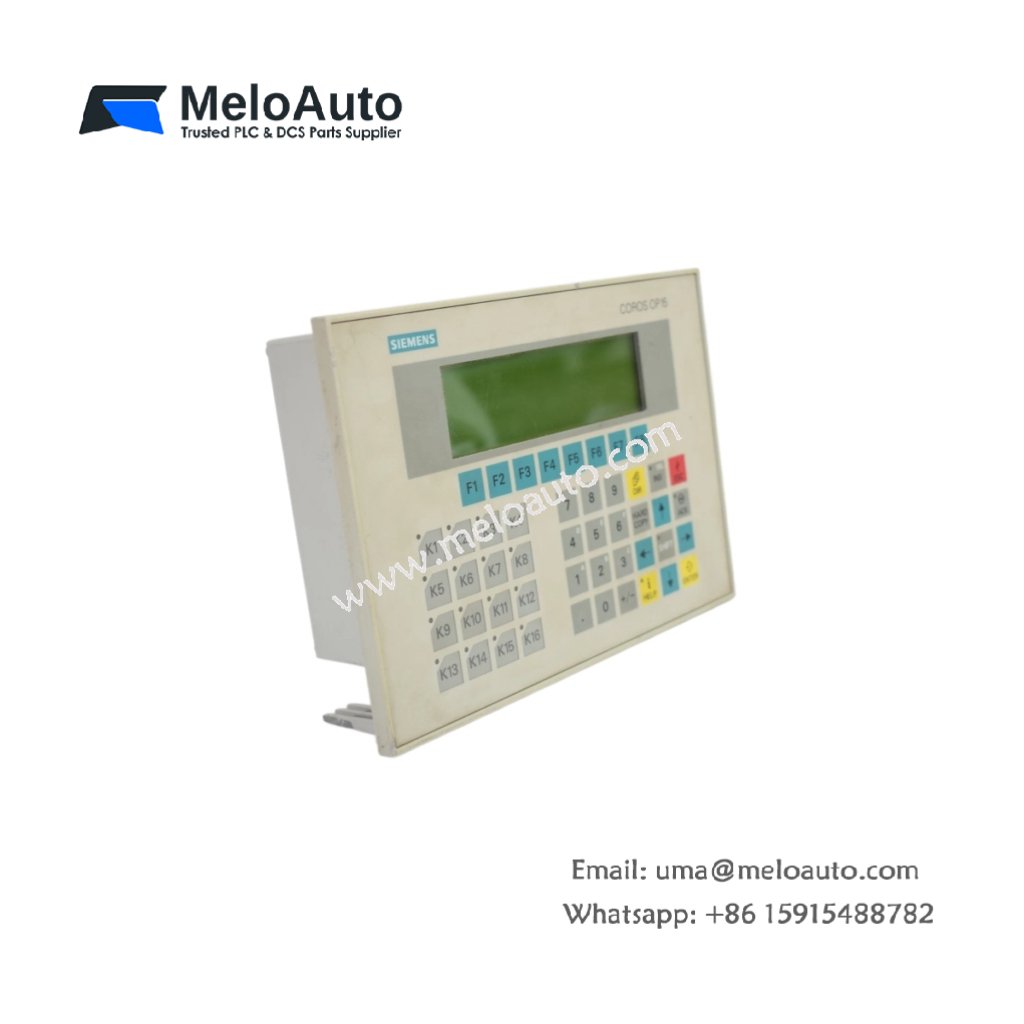

The 6AV3515-1MA22 operates as an advanced operator panel for Siemens industrial control systems. This unit provides comprehensive visualization and control capabilities for complex automation processes. It displays high-resolution graphics, trends, and alarm logs clearly. The panel accepts inputs through an intuitive touchscreen interface. Consequently, it offers operators full situational awareness and precise machine control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Category | Operator Panel |
| Part Number | 6AV3515-1MA22 |
| Display Type | TFT LCD (color) |
| Display Size | 19.0 cm (diagonal) |
| Display Resolution | 800 x 600 pixels (SVGA) |
| Touchscreen | Resistive (analog) |
| Function Keys | 8 (configurable) |
| Communication | RS-232, RS-422, RS-485, Ethernet, PROFIBUS |
| Memory | 16 MB (application storage) |
| Power Supply | 24 VDC |
| Current Consumption | 600 mA (typical) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 26.0 cm x 20.0 cm x 7.0 cm |
| Weight | 2.0 kg |
| Protection Rating | IP65 (front panel) |
| Mounting | Panel-mount (cutout: 22.5 cm x 16.5 cm) |
Display and Interaction Capabilities
The 6AV3515-1MA22 features a large SVGA display for detailed process visualization. Users can create complex graphical screens with multiple objects and animations. The resistive touchscreen supports gestures and multi-touch input. Additionally, the module includes a built-in USB port for data transfer and backup. The unit stores extensive application data in its 16 MB memory. Furthermore, the panel provides a real-time clock with battery backup.
Communication and Connectivity
This operator panel supports PROFIBUS connectivity in addition to Ethernet and serial ports. It integrates seamlessly with Siemens PLCs, drives, and other automation devices. Users can configure the panel through the WinCC flexible software environment. The 6AV3515-1MA22 supports remote access and web-based monitoring. Its robust IP65 front rating ensures reliable operation in harsh industrial conditions.
