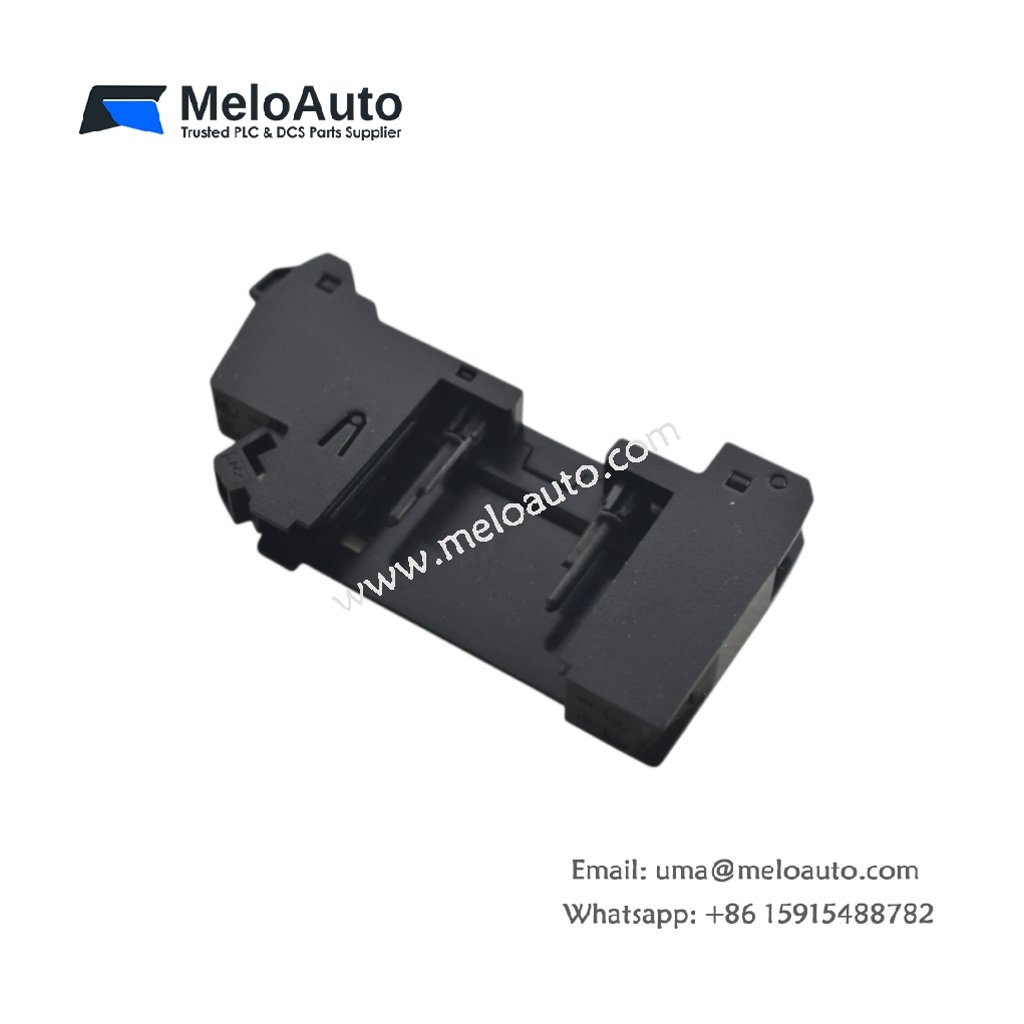

Emerson KL4510X1-EA1 Terminal Block Specs

The KL4510X1-EA1 terminal block from Emerson offers a sturdy wiring interface for industrial control cabinets. This module secures field conductors and carries signals toward the backplane. Technicians select this block when they need firm clamping and fast panel assembly.

Technical Specifications

Parameter	Specification
Product Model	KL4510X1-EA1
Module Type	Terminal Block
Connection Type	Screw-type clamping terminals
Interface	Field wiring terminals, backplane connector
Mounting	Chassis or rack-mounted slot
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 0.26 kg
Dimensions	Approx. 160 mm × 98 mm × 30 mm
Energy Storage	On-board capacitors for signal filtering
Component Count	Multiple termination points per block

Interface and Wiring Details

The KL4510X1-EA1 links incoming field wiring to the control backplane through a dedicated connector. Screw-type clamps grip conductors tightly and resist vibration during continuous plant operation. Therefore, installers achieve secure terminations without soldering or special tools. The block takes one chassis slot and draws power from the shared rail.

Physical and Environmental Parameters

The module measures roughly 160 mm by 98 mm by 30 mm and weighs about 0.26 kg. Its compact housing fits standard cabinets and keeps panel layout efficient. Meanwhile, the 0°C to 60°C operating range handles most control room conditions. The on-board filtering reduces electrical noise before signals reach sensitive circuits.

Why This Module Matters

Plant teams value the KL4510X1-EA1 for its solid clamping design and simple servicing. The energy storage components steady signals across long cable runs. As a result, measurement quality stays consistent and troubleshooting takes less time. Technicians also appreciate the clear labeling and quick terminal access.
