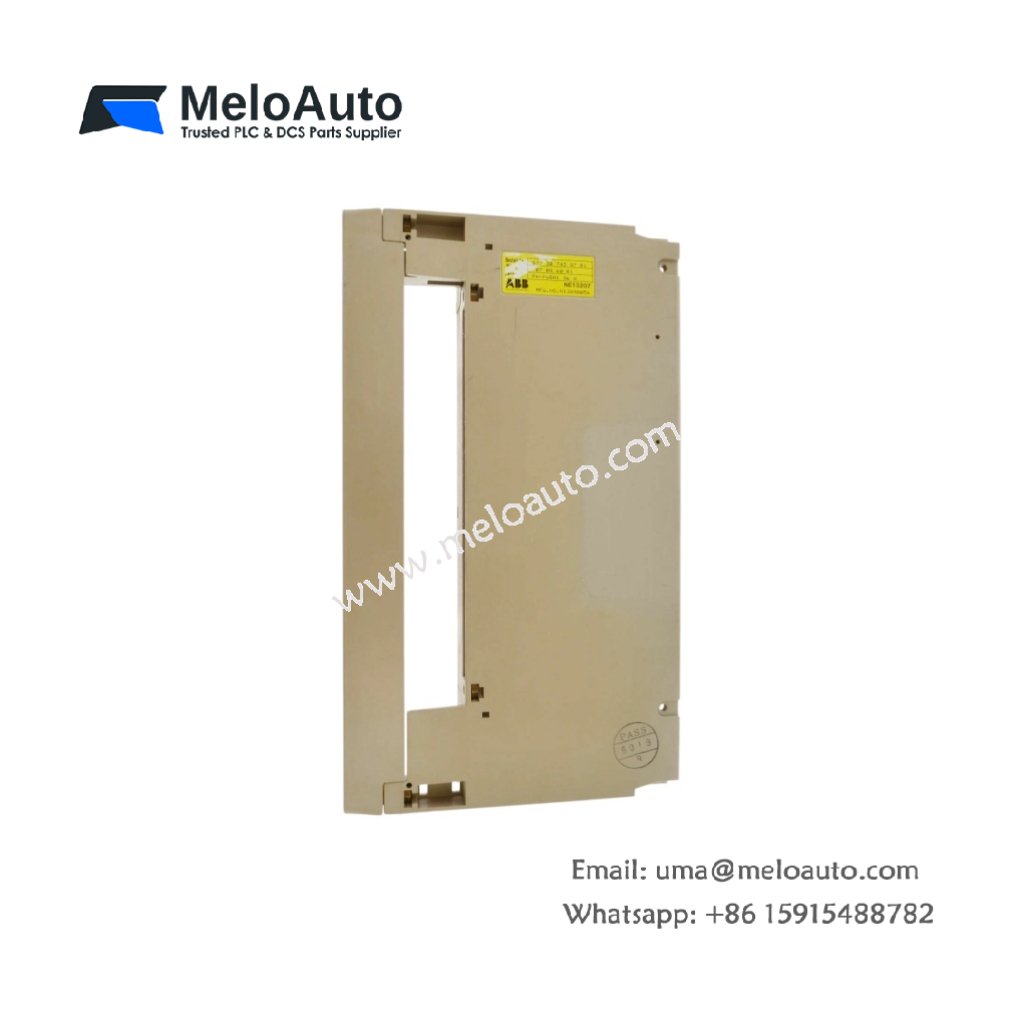

ABB 07 BA 60 R1 Digital Input Module for Procontic Systems

The 07 BA 60 R1 captures discrete field signals for ABB Procontic controllers. This digital input module reads status from switches, sensors, and limit switches. You can use it for machine monitoring and safety interlock applications.

Key Technical Parameters

The table below lists all essential technical specifications for this digital input module.

Physical Characteristics and Installation

This digital input module weighs approximately 0.22 kg for easy rack mounting. Its dimensions measure 120 mm x 80 mm x 35 mm for compact placement. First, slide the 07 BA 60 R1 into a free Procontic rack slot. Then, secure the module with the built-in locking latches. Finally, connect your field devices to the removable screw terminals. The front panel includes LED indicators for each active channel.

Channel Configuration and Signal Characteristics

The 07 BA 60 R1 provides 16 digital input channels for versatile field connectivity. Each channel accepts 24V DC nominal signals from industrial sensors. The module requires only 7 mA per channel for reliable detection. Optocouplers isolate every input from the internal backplane bus. Consequently, this design protects the controller from electrical noise.

Response Time and Power Requirements

This input module delivers a fast 3 ms response time for time-critical applications. Each channel responds within milliseconds to any signal change. The draws its operating power from the 5V DC backplane supply. You do not need any external power source for the logic circuits. The removable terminal block simplifies wiring replacement and maintenance tasks.
