Core Functionality and Application

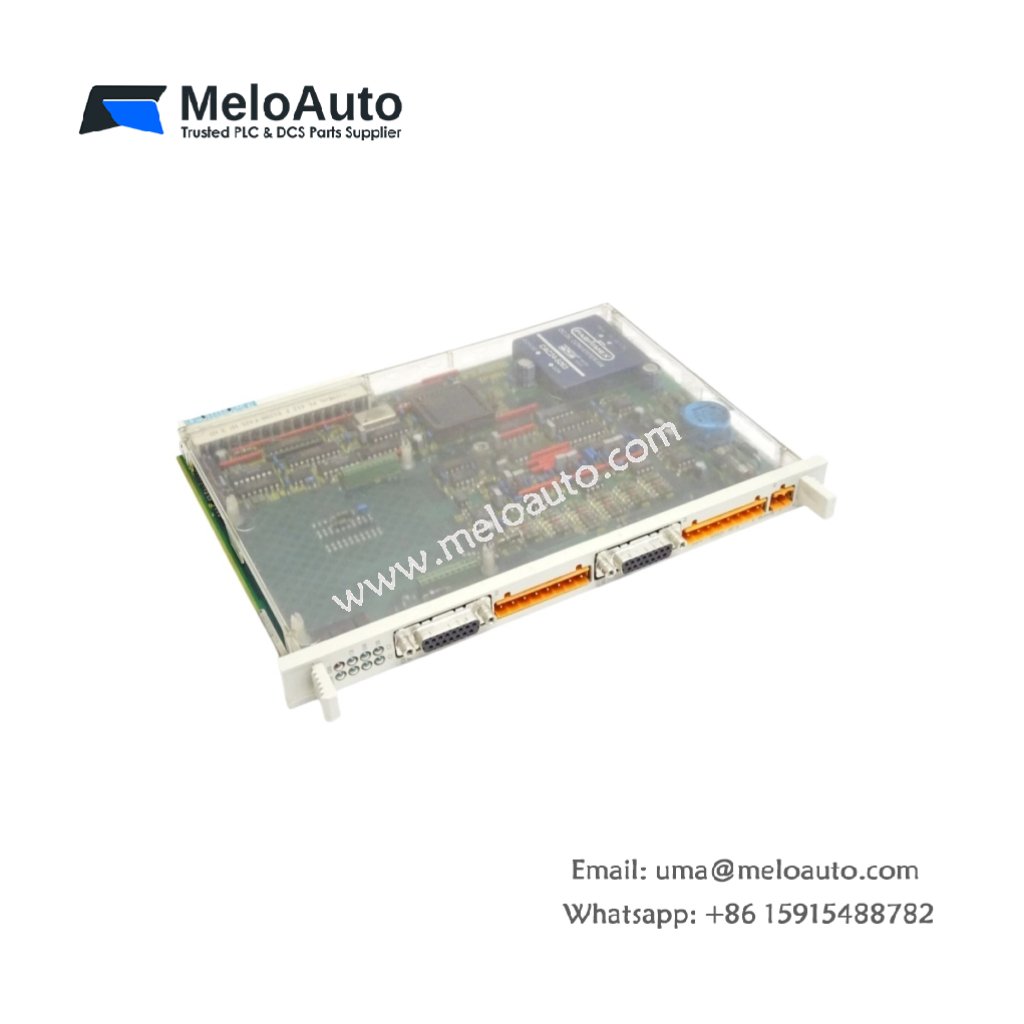

The Siemens 6ES5281-4UP12 counter module provides high-speed counting and position detection for SIMATIC S5 automation systems. This module supports up to two independent counting channels for incremental encoder and pulse signals. It handles frequency measurement, speed monitoring, and position control tasks effectively. Moreover, the module includes integrated comparator outputs for initiating control actions at preset values.
Technical Specifications
The following table details the core technical parameters for the Siemens 6ES5281-4UP12:
| Parameter | Specification |
|---|---|
| Model Number | 6ES5281-4UP12 |
| Product Type | Counter Module (IP 281) |
| Number of Channels | 2 independent counters |
| Signal Inputs | Incremental encoders (5V or 24V), pulse signals |
| Maximum Input Frequency | Up to 100 kHz (per channel) |
| Counting Range | 0 to 16-bit (standard), 0 to 32-bit (with cascading) |
| Comparator Outputs | 2 per channel |
| Input Voltage | 24 VDC (rated) |
| Isolation | Galvanic isolation between inputs and backplane |
| Dimensions (W × H × D) | 8.0 × 20.0 × 15.0 cm (3.15 × 7.87 × 5.91 in) |
| Weight | 0.65 kg (1.43 lbs) |
| Power Draw (5V) | 400 mA typical |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Compatibility | SIMATIC S5-115U, S5-135U, S5-155U |
Counting and Measurement Capabilities
The Siemens 6ES5281-4UP12 offers two independent counting channels for versatile applications. Users can configure each channel for up/down counting, quadrature counting, or frequency measurement modes. The module processes signals from both incremental encoders and simple pulse generators. Comparator outputs trigger actuators when the counter reaches user-defined setpoints . This feature enables precise position and speed control without CPU intervention.
Design and Integration Features
The Siemens 6ES5281-4UP12 occupies a single slot in the S5 rack for straightforward installation. Front-panel connectors simplify wiring to encoders and external devices. LED indicators display the operating status and count direction for each channel . The module’s galvanic isolation protects the PLC from electrical noise on encoder cables . Users can program the counter module using standard S5 function blocks . This integration reduces programming complexity and accelerates commissioning.
