Core Functionality and Application

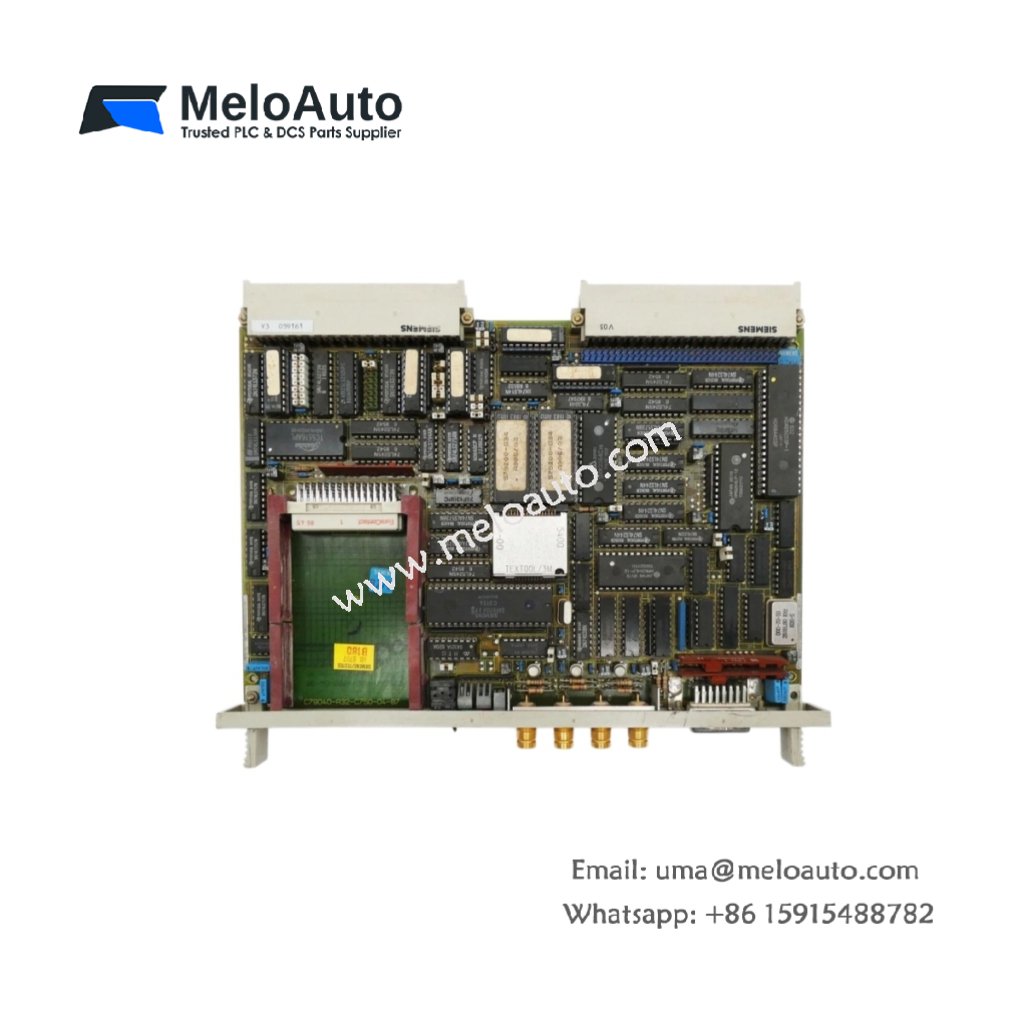

The Siemens 6ES5526-3LA11 communications processor handles data exchange between SIMATIC S5 PLCs and industrial networks. This intelligent module supports both SINEC L1 and SINEC L2 networks, making it a versatile component for networked automation systems. It manages protocol handling, data buffering, and error checking independently. Consequently, this reduces the main CPU’s workload and enhances overall system performance. Additionally, the module enables seamless integration with Siemens’ higher-level plant networks.
Technical Specifications
The following table details the core technical parameters for the Siemens 6ES5526-3LA11:
| Parameter | Specification |
|---|---|
| Model Number | 6ES5526-3LA11 |
| Product Type | Communications Processor (CP 526) |
| Supported Networks | SINEC L1 and SINEC L2 |
| Transmission Rate (L1) | 9.6 kbps |
| Transmission Rate (L2) | 187.5 kbps |
| Data Interface | RS-485 (for L2), RS-232 or 20mA (for L1) |
| Protocols Supported | Siemens-specific fieldbus protocols |
| Number of Connections | Up to 31 stations on L2 bus (with repeaters) |
| Dimensions (W × H × D) | 8.0 × 20.0 × 15.0 cm (3.15 × 7.87 × 5.91 in) |
| Weight | 0.66 kg (1.46 lbs) |
| Power Draw (5V) | 350 mA typical |
| Operating Temperature | 0°C to 55°C |
| Compatibility | SIMATIC S5-115U, S5-135U, S5-155U |
Communication and Networking Capabilities
The Siemens 6ES5526-3LA11 supports both SINEC L1 and SINEC L2 networks, providing flexible connectivity options for S5 systems. SINEC L2 operates at 187.5 kbps, which is suitable for high-speed data exchange with intelligent field devices. SINEC L1, on the other hand, handles lower-speed communication at 9.6 kbps over longer distances. This dual-network capability allows integrators to connect both distributed peripherals and supervisory systems.
Design and Integration Features
The Siemens 6ES5526-3LA11 occupies a single slot in the S5 rack and includes an onboard processor for independent communication handling. LED indicators on the front panel display the network status and fault conditions clearly. The module’s built-in memory buffers incoming messages until the CPU can process them, preventing data loss. System integrators can configure the CP 526 using standard S5 programming tools. The module also supports multi-drop configurations with up to 31 stations on L2 networks when using repeaters. This design facilitates straightforward implementation in distributed control systems.
