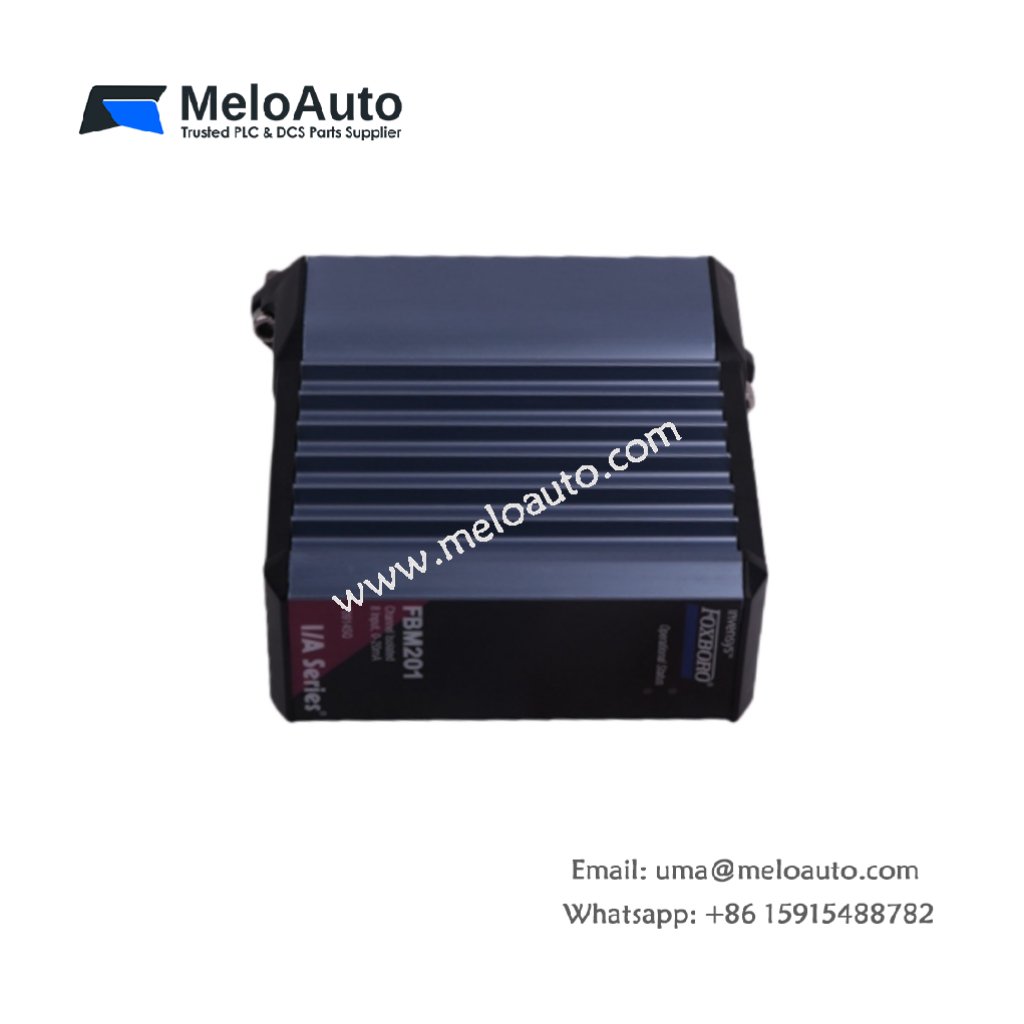

Foxboro FBM201 P0914SQ Analog Input Interface Module

The Foxboro FBM201 P0914SQ is a high-performance analog input interface module that integrates seamlessly with the Foxboro I/A Series System. It provides eight independent input channels for direct connection to various analog sensors, including 4-20 mA transmitters, 0-5 V transmitters, and self-powered 20 mA sources.

Key Features:

Eight Independent Channels: The FBM201 P0914SQ delivers eight isolated input channels. Each channel handles a wide range of analog signals with high accuracy.
Galvanic Isolation: To minimize noise and electrical interference, each input channel is fully isolated from others and ground. This ensures reliable signal processing, even in electrically noisy environments.
Rugged, Compact Design: Built for Class G3 (harsh) environments, the offers exceptional durability. Its compact design allows for flexible installation in space-constrained areas.
Advanced Signal Conversion: The module uses sigma-delta data conversions for each input channel, ensuring precise and accurate analog signal processing.
Analog Input Application Program: The runs a sophisticated application program, offering flexible options for integration time and Rate of Change Limits, ensuring optimal performance.
Termination Assemblies (TAs): The module supports local or remote field wiring connections via Termination Assemblies. It also accommodates both internally and externally loop-powered transmitters.

Technical Specifications:

Specification	Details
Model Number	FBM201 P0914SQ
Input Channels	8 isolated and independent channels
Input Range (per channel)	0 to 20 mA DC
Power Consumption	7W (maximum)
Heat Dissipation	3W (maximum)
Calibration Requirements	No calibration required for module and termination assembly
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	5% to 95% (non-condensing)
Altitude Range	-300 to +12,000 m (-1,000 to +40,000 ft)
Dimensions (LxWxH)	10.4 cm x 4.5 cm x 11.4 cm
Weight	0.284 kg (approx. 0.626 lbs)

Applications:

Industrial Automation: Ideal for various industrial applications, the FBM201 P0914SQ integrates directly with systems requiring reliable analog signal processing.
Monitoring Systems: Use the FBM201 P0914SQ for systems that rely on 4-20 mA transmitters and 0-5 V transmitters. The module ensures consistent, accurate signal monitoring in industrial processes.
Harsh Environment Usage: Designed for use in challenging environments, the FBM201 P0914SQ provides reliability and accuracy, even in high-vibration and extreme temperature conditions.

Why Choose the Foxboro FBM201 P0914SQ?

The Foxboro FBM201 P0914SQ offers high-precision signal processing through its eight isolated channels and sigma-delta data conversions. Its rugged design, easy integration, and advanced programmability make it an excellent choice for various industrial applications. Additionally, the galvanic isolation between channels guarantees accurate and interference-free performance.
